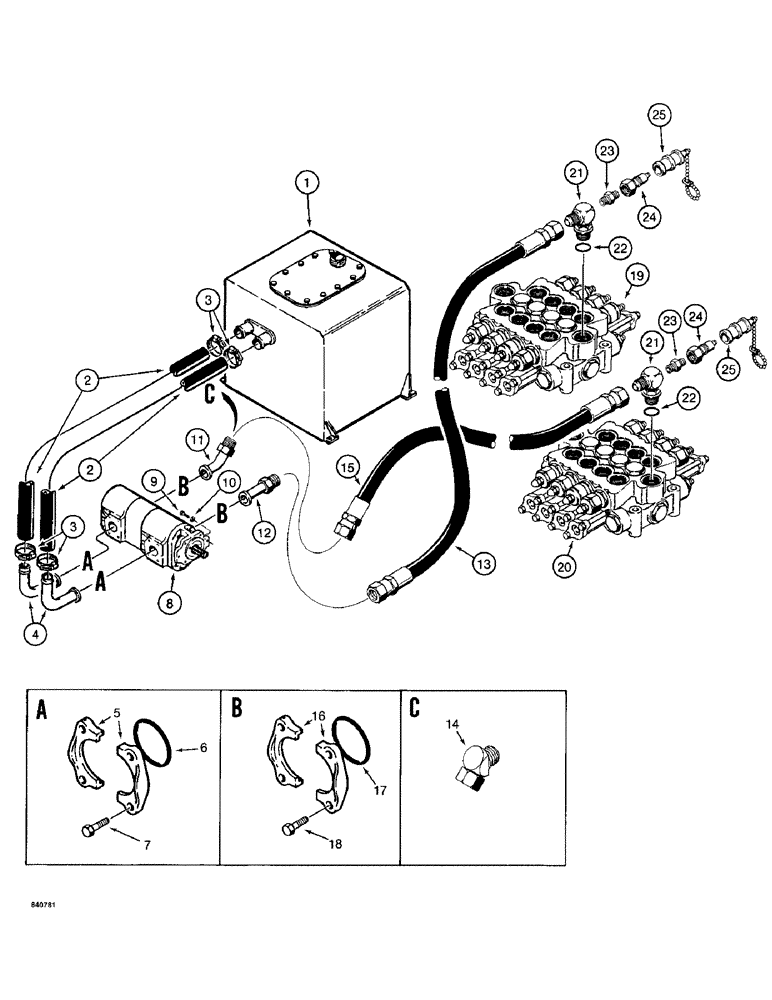

Запчасти Case 1187 (156) - MAIN HYDRAULIC PUMP LINES (07) - HYDRAULIC SYSTEM

1

S618054

TANK, HYDRAULIC OIL

RESERVOIR - hydraulic oil, see Figure 150 for related parts

1шт.

2

S120587

HYDRAULIC HOSE,2.00" ID x 60.00"

- Reservoir to pump, 37" (940 mm) long, Used with Detroit diesel engine, Cut from S118379, See below (Replaces REF) 2.00" ID x 60.00"

2шт.

Replaced by S120587

1шт.

2

S120587

HYDRAULIC HOSE,2.00" ID x 60.00"

- Reservoir to pump, 32" (813 mm) long, Used with Case engine, Cut from S118379, See below (Replaces REF) 2.00" ID x 60.00"

2шт.

Replaced by S120587

1шт.

3

214-353

CLAMP,#46, 2.62"-2.31", T-Bolt

- hose

4шт.

4

S238798

TUBE,2" OD x 6.8, 4.7" L

- to pump

2шт.

5

A14141

FLANGE

SPLIT FLANGE - tube

4шт.

6

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

- tube

2шт.

7

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

- hex head, 7/16" - 14 NC x 1-1/2"

8шт.

8

REF

INSTRUCTION

PUMP - main hydraulic, see Figures 210 and 212 for correct pump and component parts

1шт.

9

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

2шт.

10

196-20

WASHER,41/64" x 1.047" x .134", HDN

- flat, 5/8", hardened

2шт.

11

S234440

ELBOW

TUBE - from rear pump port (replaces S235919)

1шт.

Replaced by S234440

1шт.

12

S26936

TUBE

- from front pump port

1шт.

13

S8628

HOSE

- to outside control valve, 36" (914 mm) long

1шт.

14

218-5176

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Female JIC

- swivel, 45 degree, used with Case engine only

1шт.

15

S235936

HOSE

- to inside control valve, 49" (1245 mm) long

1шт.

16

A12301

CLAMP,Half

SPLIT FLANGE - tube

4шт.

17

S6586

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

- tube

2шт.

18

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

8шт.

19

REF

INSTRUCTION

CONTROL VALVE - outside, parts list Figure 222

1шт.

20

REF

INSTRUCTION

CONTROL VALVE - inside, parts list Figure 220

1шт.

21

S113093

ELBOW

- adjustable, 90 degree, special, Includes: Ref. 22

2шт.

22

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

23

217-1080

HYD CONNECTOR,1/4" - 18 NPT x 1/4" - 18 NPT

CONNECTOR, (NIPPLE, PIPE) 1/4"-18 NPTF

2шт.

24

S206607

DISC

ONNECT - male

2шт.

25

S206608

CAP

- dust, disconnect

2шт.

S118379

HOSE,2.00" ID x 60.00", SAE 100R4

2.00" ID x 60.00" Bulk, SAE 100R4

1шт.
