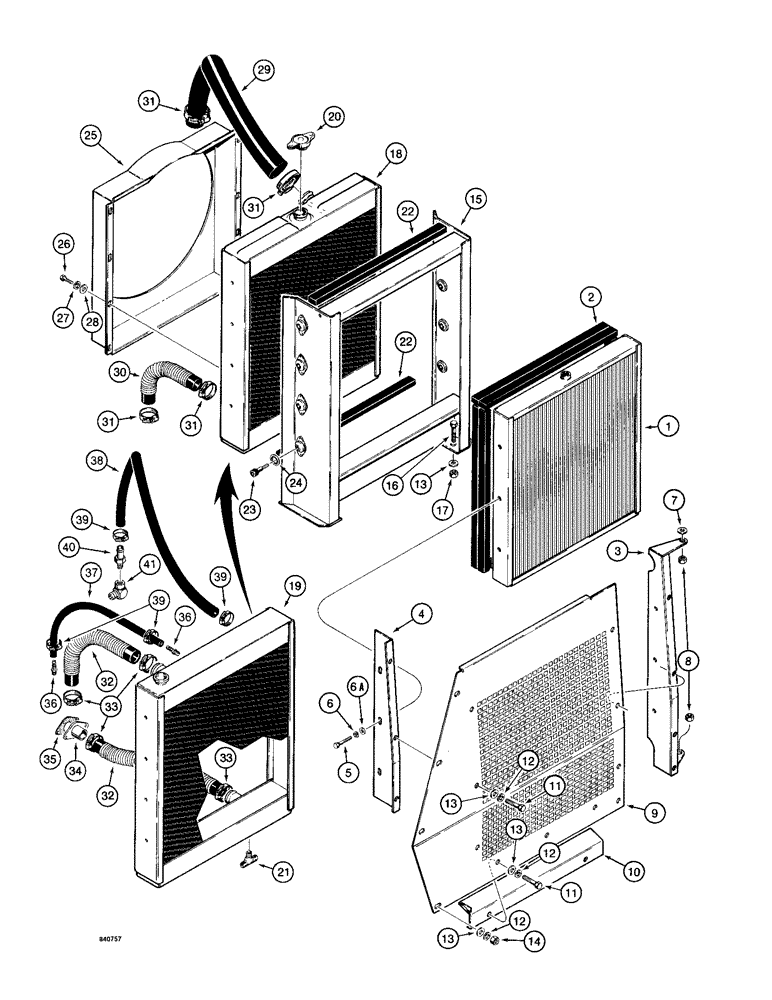

Запчасти Case 1187 (010) - RADIATOR, OIL COOLER AND HOSES (01) - ENGINE

1

S600253

COOLER, OIL

OIL COOLER - hydraulic oil

1шт.

2

REF

INSTRUCTION

SEAL - air, oil cooler, 30" long, cut from S118475, 120" long

8шт.

3

S516228

BRACKET

- mounting, oil cooler, right-hand

1шт.

4

S516231

BRACKET

- mounting, oil cooler, left-hand

1шт.

5

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

6

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

6a

195-103

WASHER,5/16"

- flat, 5/16"

6шт.

7

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, hardened, 1/2"

1шт.

8

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

2шт.

9

S618168

SHROUD

PANEL - air intake, see figure 304 for other turntable shrouds

1шт.

10

S241896

BRACKET

- lower shroud, air deflector

1шт.

11

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

10шт.

12

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

14шт.

13

S95569

WASHER

- flat, hardened, 1/2"

20шт.

14

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

15

S618030

BRACKET

- radiator mounting

1шт.

16

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

6шт.

17

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

6шт.

18

S609650

RADIATOR

- used with Case engine, includes Ref. no. 20

1шт.

19

S615082

RADIATOR

- used with Detroit diesel engine, includes Ref. no. 20

1шт.

20

D25826

CAP

- radiator, 7 PSI

1шт.

21

A23656

COCK, DRAIN

VALVE - radiator drain

1шт.

22

REF

INSTRUCTION

SEAL - air, radiator, 30" long, cut from S118475, 120" long

2шт.

23

S76819

STEP BOLT

BOLT - shoulder, special, Serial Range: radiator-bracket

8шт.

24

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

8шт.

25

S609718

SHROUD

- engine fan

1шт.

26

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

8шт.

27

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

28

195-518

WASHER,1/4", SAE

- flat, 1/4"

8шт.

29

S230570

HOSE,2.50" ID x 12.26", SAE 20R4 CLASS SC

RADIATOR HOSE, , Upper (Used w/Case Diesel Engines) 2.50" ID x 12.26", SAE 20R4 CLASS SC

1шт.

30

S85823

HOSE,63.5 mm ID x 609.60 mm, SAE 20R5

63.5 mm ID x 609.6 mm, SAE 20R5, Radiator, Lower; Used With CASE Engine

1шт.

31

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose, used with Case engine

4шт.

32

S85934

RADIATOR HOSE

Upper and Lower, Parts used with Detroit Diesel engine only

2шт.

33

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

- radiator hose, parts used with Detroit diesel engine only #36, 1.81/2.75 Type F Worm

4шт.

34

S235727

TUBE

AND FLANGE ASSEMBLY - lower radiator hose, parts used with detroit diesel engine only

1шт.

35

S119630

GASKET

- tube and flange to engine, parts used with diesel engine only

1шт.

36

217-125

FITTING,3/8" Hose Barb x 1/4" Male NPTF

BARB FITTING - straight, 1/4" NPT, parts used with diesel engine only

2шт.

37

REF

INSTRUCTION

HOSE - radiator purge line, 3/8" (9.5 mm) ID x 20" (508 mm) long, cut from S118400, see below, parts used with diesel engine only

1шт.

38

REF

INSTRUCTION

HOSE - radiator surge line, 1" (25 mm) ID x 36" (914 mm) long, cut from S118438 hose, see below, parts used with diesel engine only

1шт.

39

REF

INSTRUCTION

CLAMP - hose, surge line uses 214-256, purge line uses 214-252, parts used with diesel engine only

4шт.

40

217-375

FITTING,1" Hose Barb x 3/4" Male NPTF

BARB FITTING - straight, 3/4" NPT, parts used with diesel engine only

2шт.

41

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

Street, Parts used with diesel engine only 90º, 3/4"-14 Female x 3/4"-14 Male

1шт.

S118400

HOSE,0.38" ID x 300.00"

- Bulk, Parts used with diesel engine only 0.38" ID x 300.00"

1шт.

S118438

HOSE,1.00" ID x 120.00", SAE 20R1

- Bulk, Parts used with diesel engine only 1.00" ID x 120.00", SAE 20R1

1шт.
