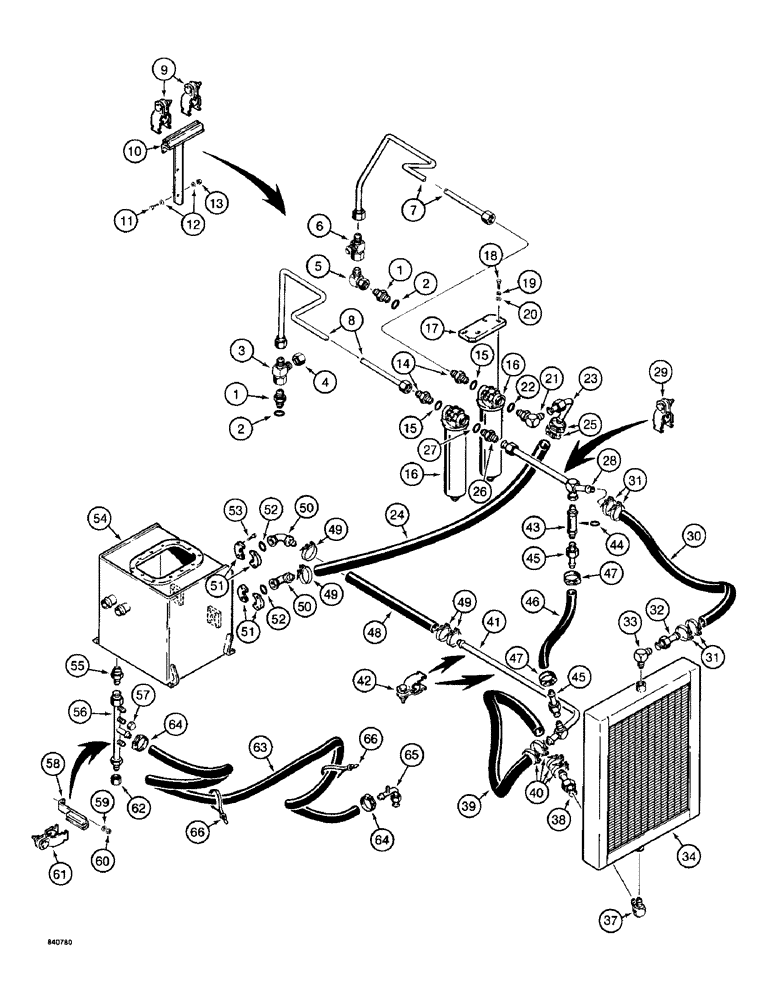

Запчасти Case 1187 (152) - HYDRAULIC OIL FILTER AND COOLER LINES (07) - HYDRAULIC SYSTEM

1

218-5039

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, Includes: Ref. 2

2шт.

2

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

3

218-5224

TEE,37º, 1 5/8"-12 x 1 5/8"-12, Fem Sw Run

- swivel type

1шт.

4

218-759

CAP,37 Degree, 1 5/8"-12

- tee, if used

1шт.

5

218-5235

ELBOW,90 Degree, 1 5/8"-12, 37 Degree x 1 5/8"-12, 37 Degree Fem Sw

- 90 degree, swivel, outside control valve only

1шт.

6

218-5224

TEE,37º, 1 5/8"-12 x 1 5/8"-12, Fem Sw Run

- swivel type

1шт.

7

S617861

TUBE ASSY.

TUBE - outside control valve to front filter

1шт.

8

S516405

TUBE ASSY.,1.5" OD

TUBE - inside control valve to rear filter

1шт.

9

S98324

CLAMP

- tube

2шт.

10

S234786

BRACKET

- filter tube support

1шт.

11

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

12

S95569

WASHER

- flat, 1/2", hardened

4шт.

13

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

2шт.

14

218-5074

HYD CONNECTOR,1-7/8" - 12 Male JIC x 1-7/8" - 12 Male ORB

ADAPTER - straight, tubes to filter, Includes: Ref. 15

2шт.

15

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

- adapter

1шт.

16

S616066

FILTER

- hydraulic oil, parts list Figure 264

2шт.

17

S241848

BAR

PLATE - filter mounting

1шт.

18

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

19

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

20

195-103

WASHER,5/16"

- flat, 3/8"

4шт.

21

218-5113

ELBOW,90 Degree Elbow, 1-7/8" - 12 Male JIC x 1-7/8" - 12 Male ORB

- 90 degree, front filter outlet, Includes: Ref. 22

1шт.

22

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

- elbow

1шт.

23

S235862

TUBE,1.5" OD x 6.5, 6.5" L

- front filter outlet

1шт.

24

REF

INSTRUCTION

HOSE - to hydraulic reservoir, 28" (711 mm) long, cut from S118407, see below

1шт.

25

S85429

CLAMP

- hose

2шт.

26

218-5074

HYD CONNECTOR,1-7/8" - 12 Male JIC x 1-7/8" - 12 Male ORB

ADAPTER - straight, rear filter outlet, Includes: Ref. 27

1шт.

27

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

- adapter

1шт.

28

S516406

TUBE ASSY.,27.4, 1.5" L

TUBE - rear filter outlet

1шт.

29

S98324

CLAMP

- tube

1шт.

30

REF

INSTRUCTION

HOSE - to oil cooler, 38" (965 mm) long, cut from S118407, see below

1шт.

31

S85429

CLAMP

- hose

4шт.

32

S231593

TUBE ASSY.,1.5" OD x 5.5" L

TUBE - to oil cooler

1шт.

33

218-1069

ELBOW,90 Degree, 1 5/8"-12, 37 Degree x 1"-11 1/2, NPTF

- 90 degree, oil cooler inlet

1шт.

34

S600253

COOLER, OIL

OIL COOLER - hydraulic oil

1шт.

37

S119263

ELBOW

- 90 degree, oil cooler outlet

1шт.

38

S231593

TUBE ASSY.,1.5" OD x 5.5" L

TUBE - oil cooler outlet

1шт.

39

REF

INSTRUCTION

HOSE - from oil cooler, 46" (1168 mm) long, cut from S118407, see below

1шт.

40

S85429

CLAMP

- hose

4шт.

S118407

HOSE,1.50" ID x 60.00"

- Bulk roll 1.50" ID x 60.00"

1шт.

41

S516756

TUBE ASSY.,41, 11.14" L

TUBE - to hydraulic reservoir

1шт.

42

S98324

CLAMP

- tube

2шт.

43

S105386

VALVE

CHECK VALVE - return line, Includes: Ref. 44

1шт.

44

A13084

O-RING,12.37" ID x 1.443" OD x 0.103"

- valve body

1шт.

45

S215412

TUBE,1.25" OD x 3" L

- return

2шт.

46

REF

INSTRUCTION

HOSE - return, 8.5" (216 mm) long, cut from S118465, see below

1шт.

47

214-371

CLAMP,1.56"-1.81", T-Bolt

- hose

2шт.

48

REF

INSTRUCTION

HOSE - to hydraulic reservoir, 8" (203 mm) long, cut from S118407, see below

1шт.

49

S85429

CLAMP

- hose, Includes: Ref. 50

4шт.

50

NLS

NO LONGER SERVICED

- 90 degree, reservoir inlet

2шт.

51

A14157

FLANGE

SPLIT FLANGE - elbow

4шт.

52

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

- elbow

2шт.

53

113-481

BOLT,Locking, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

- hex head, 1/2" - 13 NC x 1-1/4"

8шт.

54

REF

INSTRUCTION

RESERVOIR - hydraulic oil, see Figure 150

1шт.

55

218-450

HYD CONNECTOR,1-7/8" - 12 Male JIC x 1-1/2" - 11-1/2 Male NPTF

ADAPTER - reservoir bottom

1шт.

56

S516452

TUBE,20, 3" L

- reservoir drain

1шт.

57

218-756

CAP,37 Degree, 7/8"-14

Tube, If used 37º, 7/8"-14

1шт.

58

S241343

BRACKET

- tube clamp

1шт.

59

S95569

WASHER

- flat, 1/2", hardened

1шт.

60

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

1шт.

61

S98324

CLAMP

- tube

1шт.

62

218-760

CAP,37 Degree, 1 7/8"-12

- reservoir drain

1шт.

63

REF

INSTRUCTION

HOSE - return, 63" (1600 mm) long, cut from S118383, see below

1шт.

64

214-378

CLAMP,1.40"-1.56", T-Bolt

- hose

2шт.

65

S229693

TUBE,1" OD x 3, 3.75" L

- return, from swivel port no. 1

1шт.

66

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

67

S119557

PAD

- hose guard, not shown

1шт.

S118465

HOSE,1.25" ID x 180.00", SAE 100R3

- Bulk roll 1.25" ID x 180.00", SAE 100R3

1шт.

S118407

HOSE,1.50" ID x 60.00"

- Bulk roll 1.50" ID x 60.00"

1шт.

S118383

HOSE,1.00" ID x 192.00", SAE 100R3

1.00" ID x 192.00" Bulk, SAE 100R3

1шт.
