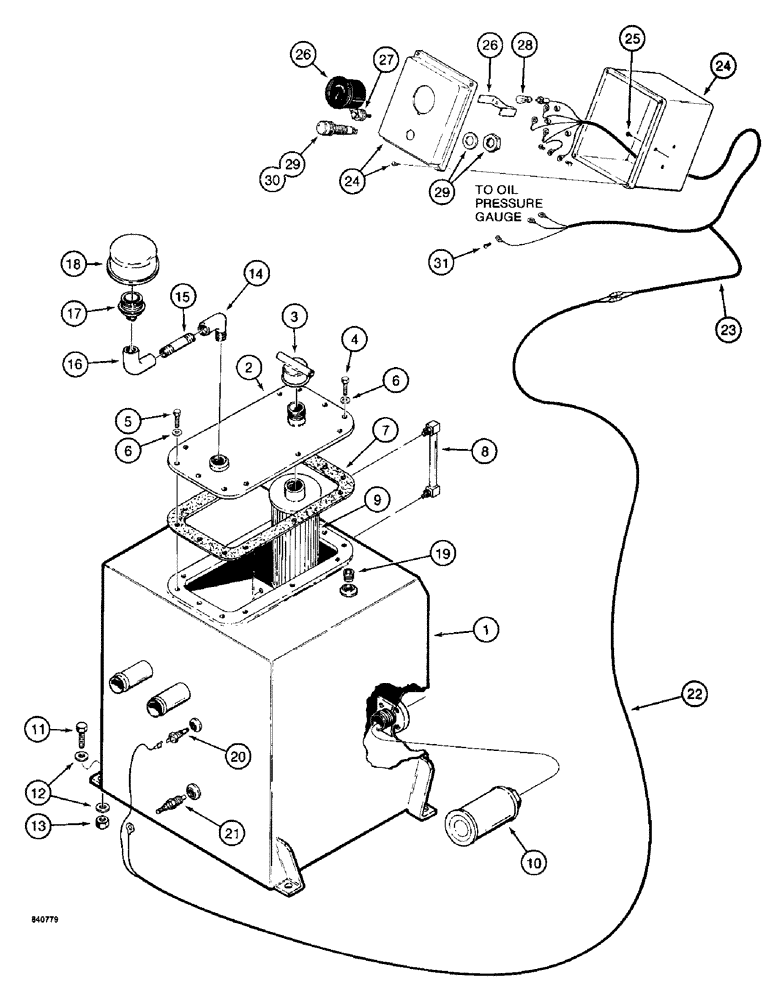

Запчасти Case 1187 (150) - HYDRAULIC RESERVOIR (07) - HYDRAULIC SYSTEM

S618054

TANK, HYDRAULIC OIL

HYDRAULIC RESERVOIR ASSEMBLY - excavator, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

HYDRAULIC RESERVOIR - excavator

1шт.

2

S236359

COVER

- reservoir

1шт.

3

S230688

CAP

- fill

1шт.

4

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

5

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

8шт.

6

195-103

WASHER,5/16"

- flat, 3/8"

12шт.

7

S230621

GASKET

- cover

1шт.

8

S107269

GAUGE

- oil level

1шт.

9

S514984

FILTER, ENGINE OIL

SCREEN - oil fill

1шт.

10

S117479

FILTER CARTRIDGE

DIFFUSER - return ports

2шт.

11

26-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

- hex head, 3/8" - 16 NC x 1-3/4", grade 8

4шт.

12

195-104

WASHER,3/8"

- flat, 7/16", used as shims

1шт.

13

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

4шт.

14

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

Street 90º, 3/4"-14 Female x 3/4"-14 Male

1шт.

15

221-1921

PIPE,Nipple, 3/4" NPT x 2", X-Strng

NIPPLE - 3/4" NPT x 2"

1шт.

16

217-1055

ELBOW,3/4" - 14 NPTF Female

- 90 degree, female, 3/4" NPT

1шт.

17

S115101

ADAPTER

- breather

1шт.

18

S115102

AIR CLEANER

BREATHER - hydraulic reservoir

1шт.

19

221-845

PLUG,Hex Soc, 3/4"-14

- pipe, hex socket head, 3/4" NPT

1шт.

20

S119340

SENSOR

- tank, low hydraulic oil level, temperature and low oil level sensing circuit and mounting parts

1шт.

21

S119399

TEMPERATURE SENDER

SENDING UNIT - hydraulic oil temperature and low oil level sensing circuit and mounting parts

1шт.

22

S241961

HARNESS

- lower, at hydraulic tank, oil temperature and low oil level sensing circuit and mounting parts

1шт.

23

S516446

HARNESS - upper, at cab, hydralulic oil temperature and low oil level sensing circuit and mounting parts

1шт.

24

S516448

BOX - mounting, gauge and warning lamp, includes cover and screws, hydralulic oil temperature and low oil level sensing circuit and mounting parts

1шт.

25

187-1509

SELF-TAP SCREW,Hex Hd, #10 x 5/8"

SCREW - hex head, self-tapping, no. 10-24 NC x 5/8", hydralulic oil temperature and low oil level sensing circuit and mounting parts

3шт.

26

S241733

GAUGE

- hydraulic oil temperature, includes terminal mounting nuts, and low oil level sensing circuit and mounting parts

1шт.

27

S108406

RESISTOR

- oil temperature gauge, and low oil level ssensing circuit and mounting parts

1шт.

28

S116543

BULB

- oil temperature gauge, hydralulic oil temperature and low oil level sensing circuit and mounting parts

1шт.

29

S240123

LIGHT

LAMP - warning, low hydraulic oil level, includes terminal mounting screws, and temperature sensing circuit and mounting parts

1шт.

30

S119827

BULB

- low oil level warning lamp, hydralulic oil temperature and low oil level sensing circuit and mounting parts

1шт.

31

182-519

SCREW,Sl Pan Hd, #4 - 40 x 3/16"

- machine, special pan head, brass, no. 4-40 NC x 3/16", replaces existing terminal screw on panel lamp in right-hand console, hydralulic oil temperature and low oil level sensing circuit and mounting parts

1шт.
