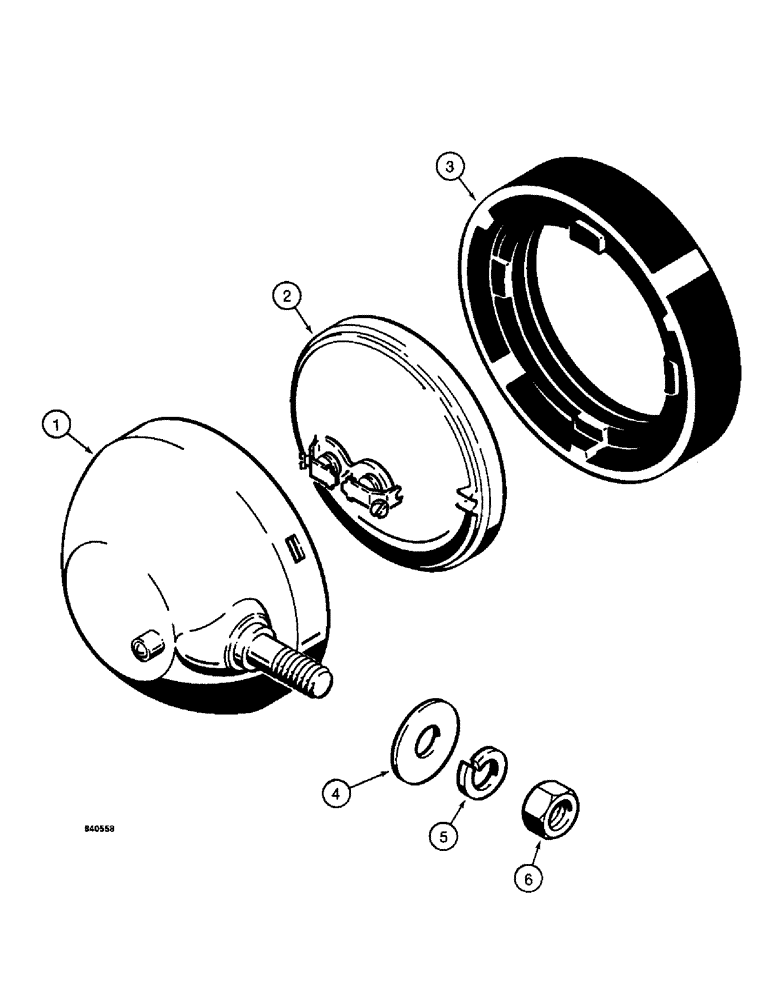

Запчасти Case 1187 (104) - WORK LAMPS (06) - ELECTRICAL SYSTEMS

D51222

LIGHT ASSY.

LAMP - work, Includes: Ref. 1 - 6

4шт.

1

NSS

NOT SOLD SEPARAT

SHELL ASSEMBLY - lamp

1шт.

2

D37920

LAMP

BULB - sealed beam, no. 4578

1шт.

3

A25210

MOUNTING PARTS

RETAINER - lamp, rubber

1шт.

4

195-106

WASHER,1/2"

- flat, , see note below 1/2"

1-2шт.

Only one washer, 195-106, is included with the lamp assembly. When installing the lamp on the boom, a second washer must be added.

1шт.

5

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

6

129-165

JAM NUT,Jam, 1/2"-20, G5

- hex, 1/2" - 13 NC

1шт.
