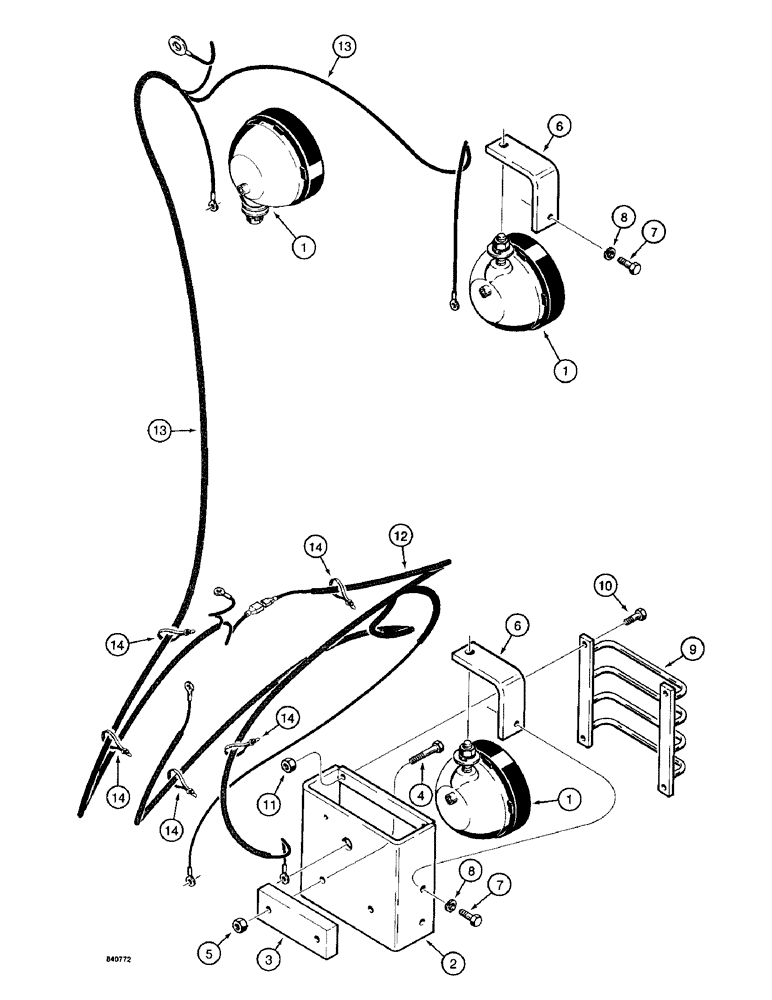

Запчасти Case 1187 (102) - WORK LAMPS, ELECTRICAL CIRCUIT AND MOUNTING PARTS (06) - ELECTRICAL SYSTEMS

1

D51222

LIGHT ASSY.

LAMP - work, at boom and at turntable, parts list Figure 104

4шт.

2

S212579

GUARD

HOUSING - work lamp, at turntable mounting

2шт.

3

S86493

SPACER

- lamp housing, at turntable

2шт.

4

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- hex head, 1/2" - 13 NC x 2-1/2"

4шт.

5

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

4шт.

6

S222287

BRACKET

-, Serial Range: lamp-housing

4шт.

7

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

9

S212578

PROTECTOR

GUARD - work lamp

4шт.

10

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

16шт.

11

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

16шт.

12

S241942

HARNESS

- lower, at switch and turntable lamps

1шт.

13

S241943

HARNESS

- upper, at bottom lamps

1шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.
