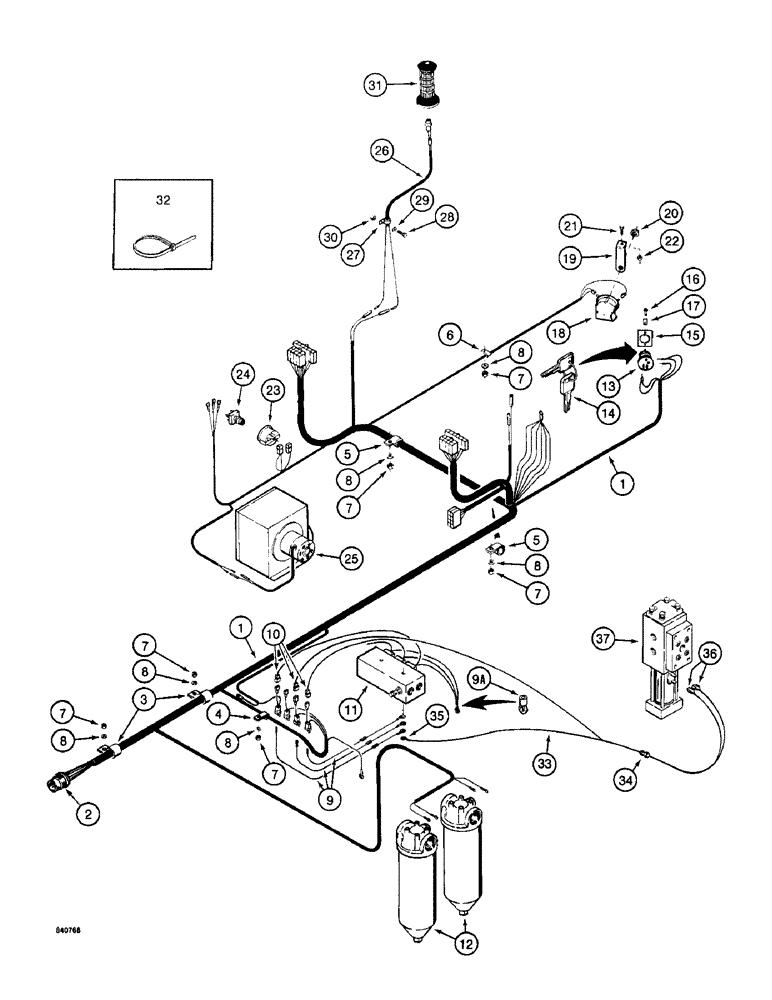

Запчасти Case 1187 (088) - ELECTRICAL HARNESS - CAB AND TURNTABLE (06) - ELECTRICAL SYSTEMS

1

S618338

HARNESS

- turntable, Includes: Ref. 2

1шт.

2

S107264

CONNECTION,ELECTRIC

PLUG - electrical, harness, includes (8) S99512 pins, not shown

1шт.

3

R14668

CLAMP

- harness, rear

2шт.

4

S64985

CLAMP

- wire to solenoid control valve

1шт.

5

T50103

CLAMP

- harness, front

2шт.

6

A61275

CLIP

CLAMP - horn wire

1шт.

7

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

6шт.

8

195-525

WASHER,3/8", SAE

- flat, 3/8"

6шт.

9

S238309

DIODE

WIRE - diode

3шт.

9a

223-56

TERMINAL CONNECTOR,10 - 12

- wires at solenoid control valve

1шт.

10

S117294

ROD, CONNECTING

CONNECTOR - solenoid control valve wires

3шт.

11

S516559

VALVE

SOLENOID CONTROL VALVE - parts list Figure 232

1шт.

12

S616066

FILTER

- hydraulic oil, parts list Figure 264

2шт.

S108413

SWITCH

KEY SWITCH ASSEMBLY - electrical system, Includes: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

KEY SWITCH - electrical system

1шт.

14

R30074

SET

KEYS - switch, set of two keys

1шт.

15

S239946

PLATE

- switch mounting

1шт.

16

179-156

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

MACHINE SCREW - no. 10-24 NC x 3/4"

2шт.

17

S117167

CLIP

NUT - u-type, no. 10-24 NC

2шт.

18

D77650

HORN

- electrical

1шт.

19

S203190

BRACKET

- horn mounting

1шт.

20

L30866

LOCK NUT

- horn mounting

1шт.

21

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

22

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC, Light duty

1шт.

23

S515551

HOURMETER

- electric

1шт.

24

REF

INSTRUCTION

SWITCH - heater, supplied with heater, parts list Figure 96

1шт.

25

S239156

HEATER

- cab, if used, parts list Figure 96

1шт.

26

S242036

SWITCH

AND WIRE - rotary cutter or collector

1шт.

27

49851

SHIELD

- fast hoist switch wire

1шт.

28

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

29

195-525

WASHER,3/8", SAE

- flat, 3/8"

1шт.

30

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

1шт.

31

S119987

GRIP

- control lever, see Figure 282 for hand lever controls

1шт.

32

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

33

REF

INSTRUCTION

CABLE - to solenoid, with rotary cutter, 39.17 ft (11.94 M) long, cut from S118482, see below

1шт.

33

REF

INSTRUCTION

CABLE - to solenoid, with collector, 29.17 ft (8.89 M) long, cut from S118482, see below, wiring from solenoid control vavle to rotary cutter and collector solenoid valves

1шт.

34

S222004

CONNECTOR - strain relief, cable to frame, rotary cutter only, wiring from solenoid control valve to rotary cutter and collector solenoid valves

1шт.

35

223-61

TERMINAL CONNECTOR,14 - 16

TERMINAL - cable at solenoid control valve, wiring from solenoid control valve to rotary cutter and collector solenoid valves

1шт.

36

223-92

TERMINAL

TERMINAL - cable at solenoid valve, wiring from solenoid control valve to rotary cutter and collector solenoid valves

2шт.

37

S516009

VALVE

- solenoid, used with rotary cutter, parts list Figure 234, wiring from solenoid control valve to rotary cutter and collector solenoid valves

1шт.

37

S516409

VALVE

- solenoid, used with collector, parts list Figure 236, wiring from solenoid control valve to rotary cutter and collector solenoid valves

1шт.

S118482

CABLE

- electrical, 2 wire, 14 gauge, 50 ft (15.24 M) long, wiring from solenoid control valve to rotary cutter and collector solenoid valves

1шт.
