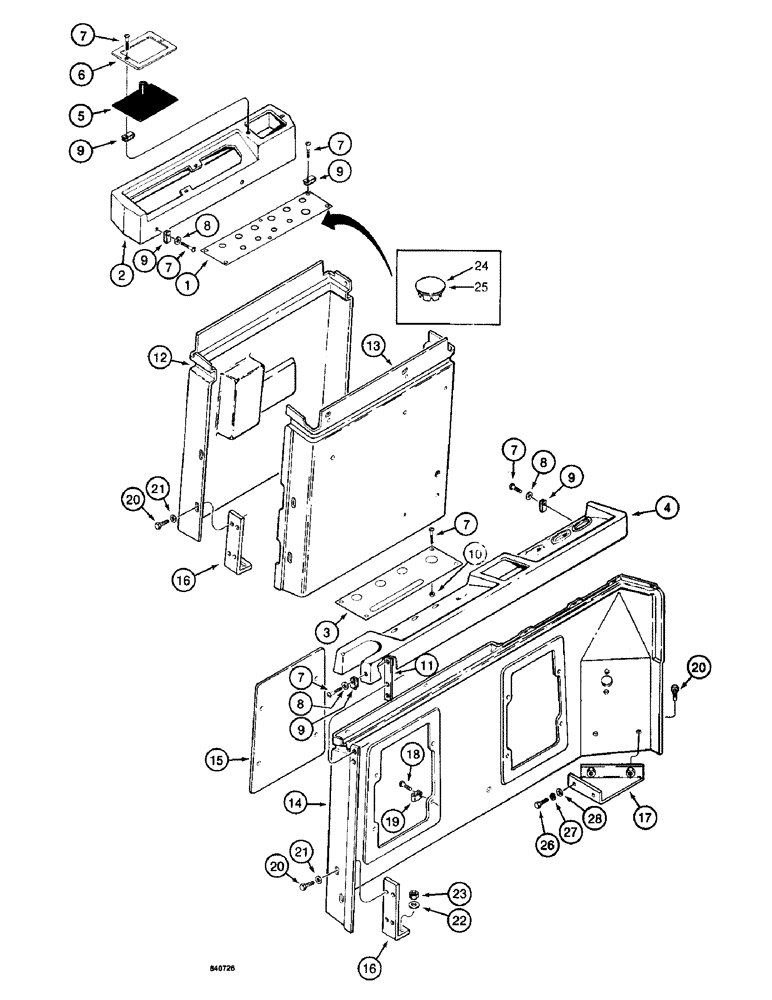

Запчасти Case 1187 (086) - INSTRUMENT PANELS (06) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
321-6098
PANEL
- instrument, left-hand
1шт.
2
S956663
COVER
- left-hand console
1шт.
3
321-6097
PANEL
- instrument, right-hand, with Case engine
1шт.
3
321-6457
DECAL
PANEL - instrument, right-hand, with Detroit diesel engine
1шт.
4
S956661
COVER
- right-hand console
1шт.
5
S615715
BOOT
- control lever
2шт.
6
S239340
FLANGE
- boot retaining
2шт.
7
179-156
SCREW,Cross Oval Hd, #10 - 24 x 3/4"
MACHINE SCREW - no. 10-24 NC x 3/4"
31шт.
8
F64315
WASHER
- special finishing, no. 10
13шт.
9
S117167
CLIP
NUT - u-type, no. 10-24 NC
23шт.
10
86632551
NUT,#10-24, GB
NUT, LOCK, #10-24, GB
4шт.
11
S118869
BAR
- right-hand, Serial Range: cover-console
1шт.
12
S956664
PANEL
CONSOLE - left-hand, outside
1шт.
13
S956665
PANEL
CONSOLE - left-hand, inside
1шт.
14
S956662
PANEL, SIDE
CONSOLE - right-hand
1шт.
15
S516014
COVER
- access, right-hand console
2шт.
16
S239381
BRACKET
- console support, rear
2шт.
17
S514941
BRACKET
- console support, right-hand front
1шт.
18
179-156
SCREW,Cross Oval Hd, #10 - 24 x 3/4"
MACHINE SCREW - no. 10-24 NC x 3/4"
8шт.
19
S117167
CLIP
NUT - u-type, no. 10-24 NC
8шт.
20
187-575
SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"
BOLT - hex head, 1/4" - 20 NC x 3/4"
16шт.
21
195-2250
WASHER,.266" x 13/16" x .083"
- flat, 1/4"
6шт.
22
196-5
WASHER,13/32" x 1 1/16" x .095", HDN
- flat, 3/8"
2шт.
23
131-52
NUT,3/8"-16, GC
NUT - hex, 3/8" - 16 NC
2шт.
24
353-404
PLUG,Dome, .500" hole, Nylon
(13 mm) Dome, .500" hole, Nylon
1шт.
25
353-406
PLUG,Dome, .625" hole, Nylon
- instrument panel, 5/8" (16 mm) diameter hole size
1шт.
25
353-402
PLUG,Dome, .375" hole, Nylon
(10 mm), Instrument panel Dome, .375" hole, Nylon
1шт.
26
113-3
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
2шт.
27
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, 1/4"
2шт.
28
195-2250
WASHER,.266" x 13/16" x .083"
- flat, 3/16" bolt size
2шт.
Выбрано товаров: 30
