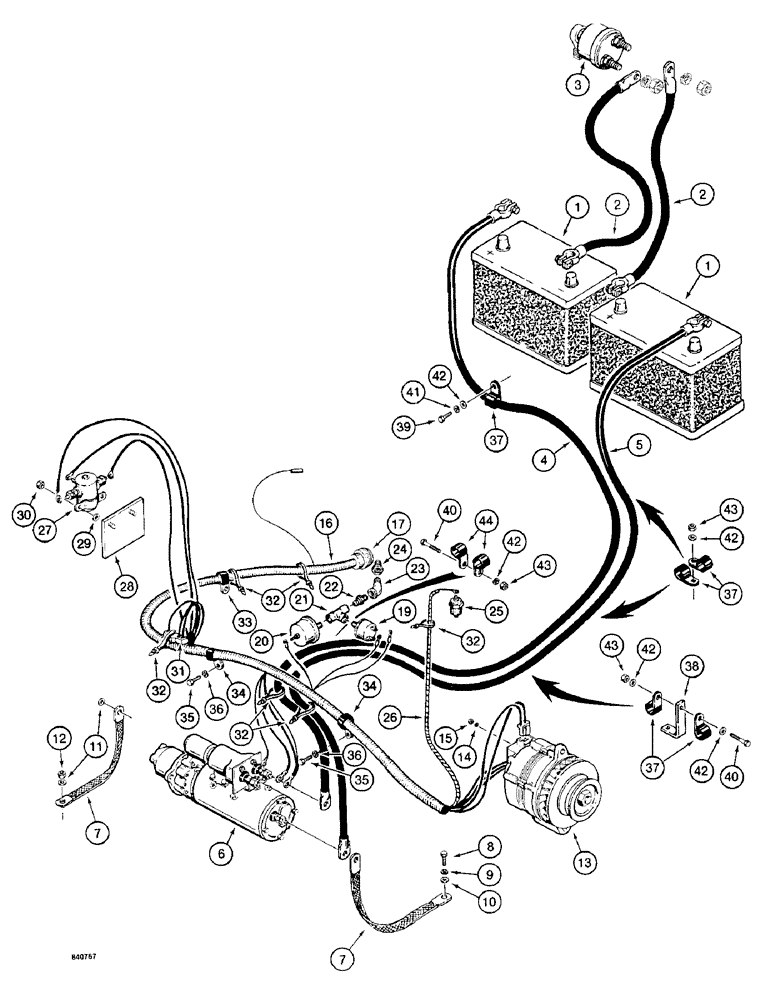

Запчасти Case 1187 (084) - DETROIT DIESEL ENGINE ELECTRICAL SYSTEM (06) - ELECTRICAL SYSTEMS

1

A145205

WET BATTERY

- 12 volt, see Figure 80 for battery retainers

2шт.

2

S242028

CABLE

- battery to master disconnect switch

2шт.

3

D75385

IGNITION SWITCH

SWITCH - master disconnect

1шт.

4

S241695

CABLE

- battery to starter terminal

1шт.

5

S236109

CABLE PULLING GRIP

CABLE - battery to starter ground

1шт.

6

REF

INSTRUCTION

STARTER - furnished with engine, for service see an authorized Detroit Diesel Allison service outlet

1шт.

7

S229640

CABLE

- ground, starter to engine and, Serial Range: engine-turntable

2шт.

8

113-310

BOLT,Hex, 7/16" - 14 x 1", Gr 5

1шт.

9

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

10

195-529

WASHER,7/16", SAE

- flat, 7/16"

1шт.

11

195-525

WASHER,3/8", SAE

- flat, 3/8"

2шт.

12

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

1шт.

13

REF

INSTRUCTION

ALTERNATOR - parts list figure 72 and 74, mounting brackets figure 80

1шт.

14

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Alternator output terminal 1/4"

1шт.

15

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, Alternator output terminal

1шт.

16

S618803

HARNESS

- engine(replaces S614351), Includes: Ref. 17 and 18

1шт.

Replaced by S618803

1шт.

17

S107265

PLUG

CONNECTOR - harness, Includes: Ref. 18

1шт.

18

S99517

CONTACT

- connector, not shown

8шт.

19

S63884

SWITCH

- hourmeter, oil pressure activated

1шт.

20

S108398

TRANSMITTER

SENDER - engine oil pressure

1шт.

21

217-1160

TEE,1/8"-27 Female

- oil pressure, 1/8" NPT

1шт.

22

217-1079

HYD CONNECTOR,1/8" - 27 NPTF

CONNECTOR - straight, 1/8" NPT

1шт.

23

217-1084

45 ELBOW,45 Degree, 1/8"-27 Female x 1/8"-27 Male

1шт.

24

221-84

REDUCER,Hex, 1/4" x 1/8" NPT

BUSHING - reducer, 1/4" NPT x 1/8" NPT

1шт.

25

S108396

SENDER UNIT

SENDER - engine temperature

1шт.

26

REF

INSTRUCTION

LOOM - sender wire, 21" (533 mm) long, cut from S118377

1шт.

27

S240588

SOLENOID SWITCH

RELAY - starter

1шт.

28

S238088

BRACKET

- relay mounting

1шт.

29

195-518

WASHER,1/4", SAE

- flat, 1/4"

2шт.

30

86625061

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC

2шт.

31

S237284

RESISTOR

- alternator circuit

1шт.

32

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

33

R14668

CLAMP

- engine harness

1шт.

34

S88820

CLAMP

- engine harness

2шт.

35

113-310

BOLT,Hex, 7/16" - 14 x 1", Gr 5

2шт.

36

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

37

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- battery cable, at battery box, left rear mast ear and hydraulic oil tank

7шт.

38

S241921

BRACKET

- clamp mounting, at hydraulic tank

1шт.

39

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

40

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

41

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

42

195-525

WASHER,3/8", SAE

- flat, 3/8"

6шт.

43

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

4шт.

44

T42284

CLAMP

- starter cable to throttle cable bracket

2шт.

S118377

LOOM

- bulk roll, 240" (6096 mm) long

1шт.
