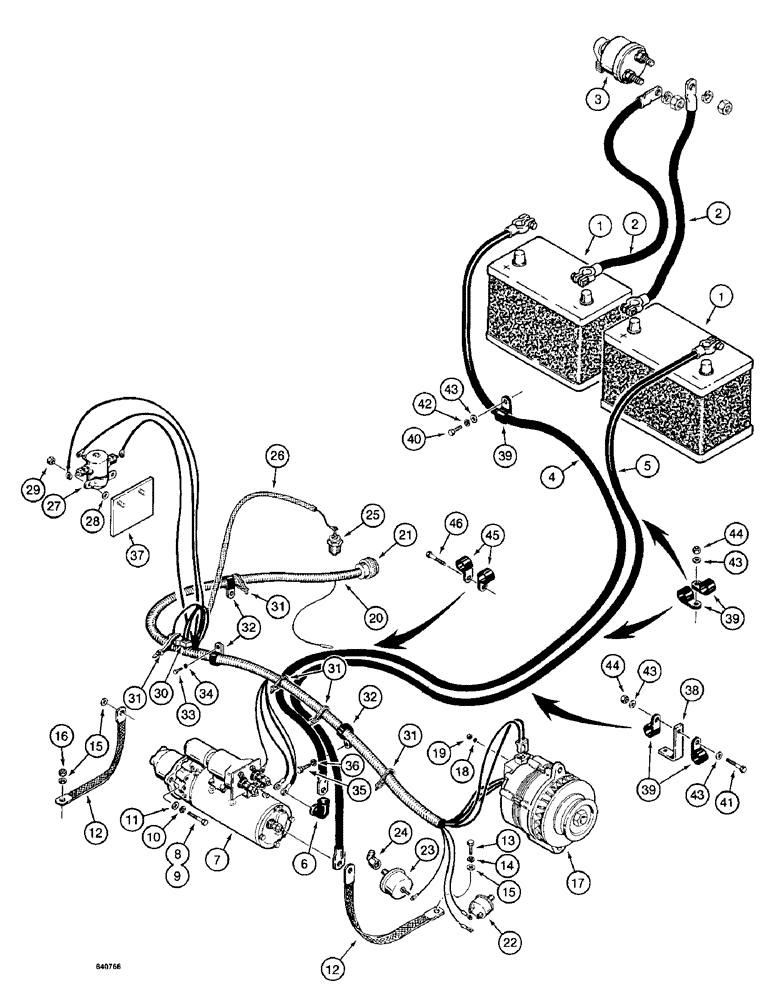

Запчасти Case 1187 (082) - CASE ENDING ELECTRICAL SYSTEM (06) - ELECTRICAL SYSTEMS

1

A145205

WET BATTERY

- 12 bolt, see Figure 80 for battery retainers

2шт.

2

S242028

CABLE

- battery to master disconnect switch

2шт.

3

D75385

IGNITION SWITCH

SWITCH - master disconnect

1шт.

4

S241695

CABLE

- battery to starter terminal

2шт.

5

S236109

CABLE PULLING GRIP

CABLE - battery to starter ground

1шт.

6

S115407

BOOT

- rubber

1шт.

7

REF

INSTRUCTION

STARTER - engine, parts list Figure 76 and 78

1шт.

8

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Starter mounting Hex, 1/2"-13 x 2", G5

2шт.

9

113-427

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

Starter mounting Hex, 1/2"-13 x 3 1/4", G5

1шт.

10

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Starter mounting 1/2"

3шт.

11

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 1/2", starter mounting

3шт.

12

S229640

CABLE

- ground, starter to engine and, Serial Range: engine-turntable

2шт.

13

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Ground cable to engine Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Ground cable to engine 3/8"

1шт.

15

195-525

WASHER,3/8", SAE

- flat, 3/8", ground cable to engine and frame

3шт.

16

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, ground cable to turntable

1шт.

17

REF

INSTRUCTION

ALTERNATOR - parts list Figures 72 and 74, mounting brackets figure 80

1шт.

18

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Alternator output terminal 1/4"

1шт.

19

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, Alternator output terminal

1шт.

20

S614353

HARNESS

- engine, Includes: Ref. 21

1шт.

21

S107265

PLUG

CONNECTOR - harness, includes (8) S99517 electrical contacts

1шт.

22

S63884

SWITCH

- hourmeter, oil pressure activated

1шт.

23

S242648

SWITCH

SENDER - engine oil pressure(replaces S108398)

1шт.

Replaced by S242648

1шт.

24

217-1084

45 ELBOW,45 Degree, 1/8"-27 Female x 1/8"-27 Male

1шт.

25

S108396

SENDER UNIT

SENDER - engine temperature

1шт.

26

REF

INSTRUCTION

LOOM - sender wire, 24" (610 mm) long, cut from S118377

1шт.

27

S240588

SOLENOID SWITCH

RELAY - starter

1шт.

28

195-518

WASHER,1/4", SAE

- flat, 1/4", relay mounting

2шт.

29

86625061

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC, relay mounting

2шт.

30

S237284

RESISTOR

- alternator circuit

1шт.

31

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

32

R14668

CLAMP

- harness

3шт.

33

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

34

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

35

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

36

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

37

S238088

BRACKET

PLATE - relay mounting

1шт.

38

S241921

BRACKET

- clamp mounting

1шт.

39

NLS

NO LONGER SERVICED

- battery cable, at battery box, left rear mast ear, and hydraulic oil tank

7шт.

40

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

41

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

42

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

43

195-525

WASHER,3/8", SAE

- flat, 3/8"

5шт.

44

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

3шт.

45

T42284

CLAMP

- battery cable, at rear of engine

2шт.

46

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

S118377

LOOM

- bulk roll, 240" (6096 mm) long

1шт.
