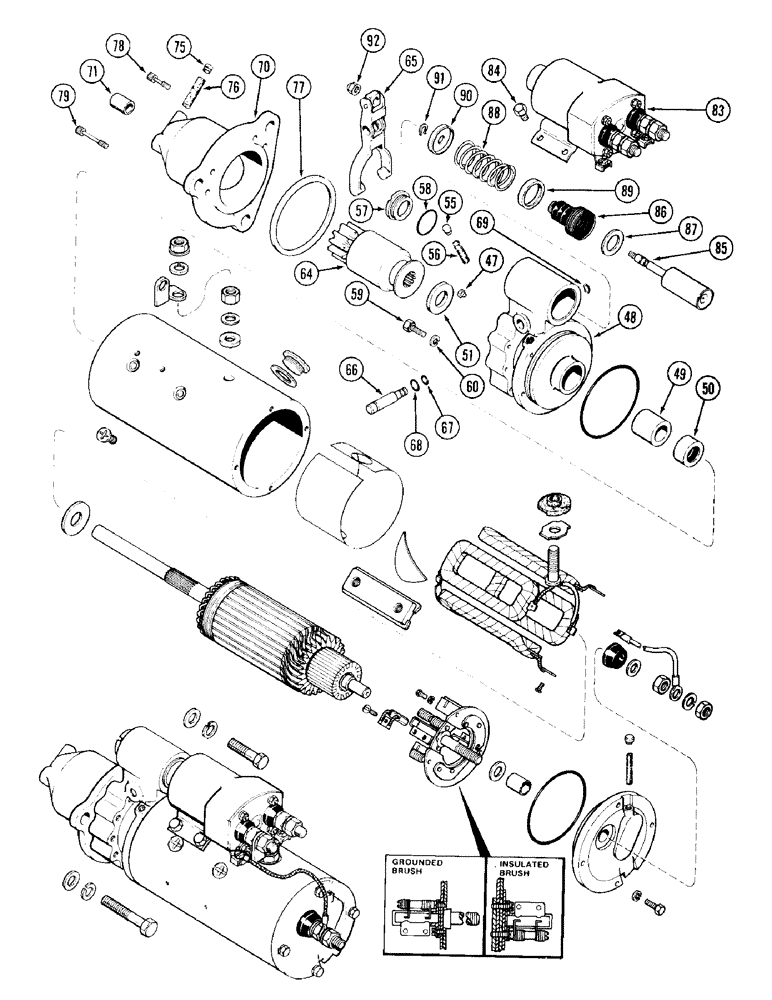

Запчасти Case 1187 (078) - R45968 STARTER, 504BDT DIESEL ENGINE (06) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
R45968
STARTER MOTOR
STARTER ASSEMBLY - , Includes: Ref. 47 - 92 and 2 - 45 on Fig. 76)
1шт.
104216A2R
REMAN-STARTER
Remanufactured Starter; For N.A. only
1шт.
104216A1C
CORE-STARTER
Return number - For N.A. only
1шт.
47
A47897
PLUG
PLUG - lever housing, rubber
1шт.
48
A47896
HOUSING
HOUSING ASSEMBLY - shift lever, Includes: Ref. 49 - 51, 55 and 56
1шт.
49
A47842
PUMP
BUSHING - armature
1шт.
50
R21582
OIL SEAL
SEAL - oil
1шт.
51
R15145
DISC
WASHER - brake
1шт.
55
A47889
PLUG
PLUG - oil wick
1шт.
56
A47888
WICK
WICK - oil
1шт.
57
R21587
PLUG
PLUG - lever housing
1шт.
58
A41924
GASKET
GASKET - plug
1шт.
59
114-1
BOLT,Hex, 1/4" - 28 x 1", Gr 5
BOLT, Hex, 1/4"-28 x 1", G5
5шт.
60
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, 1/4"
5шт.
64
A47523
DRIVE
DRIVE ASSEMBLY - starter
1шт.
65
D32547
LEVER
LEVER - shifter
1шт.
66
A42199
PIN
STUD - pivot, shift lever
1шт.
67
A47259
O-RING,0.244" ID x 0.391" OD
O-RING - small, pivot stud
1шт.
68
A47258
O-RING,0.369" ID x 0.515" OD
O-RING - large, pivot stud
1шт.
69
G46146
SNAP RING,#37, Ext
RING, Snap, , pivot stud #37, Ext
1шт.
70
A47898
HOUSING
HOUSING ASSEMBLY - drive end, Includes: Ref. 71, 75 and 76
1шт.
71
A47257
BUSHING
BUSHING - armature
1шт.
75
A47889
PLUG
PLUG - oil wick
1шт.
76
A47888
WICK
WICK - oil
1шт.
77
R21562
GASKET
GASKET - drive end to shifter housing
1шт.
78
D32489
HEX SOC SCREW,5/16" - 18 x 0.86"
SCREW - housing, short
1шт.
79
D32488
HEX SOC SCREW,5/16" - 18 x 1.50"
SCREW - housing, long
5шт.
83
A47899
SOLENOID SWITCH
SOLENOID ASSEMBLY - service as complete assembly
1шт.
84
R15159
SCREW,Hex, 1/4" - 20 x 3/8", w/ LW
SCREW - solenoid
4шт.
85
A42309
PLUNGER
PLUNGER - solenoid
1шт.
86
A42308
BOOT
BOOT - plunger
1шт.
87
A41922
WASHER
SEAT - boot
1шт.
88
A41242
SPRING
SPRING - plunger return
1шт.
89
A43380
BACK-UP RING
SEAT - spring, inner
1шт.
90
A43419
SEAT
SEAT - spring, outer
1шт.
91
G46146
SNAP RING,#37, Ext
RING, Snap, , spring retainer #37, Ext
1шт.
92
131-31
LOCK NUT,5/16"-24, G8
NUT - plunger to lever
1шт.
Выбрано товаров: 37
