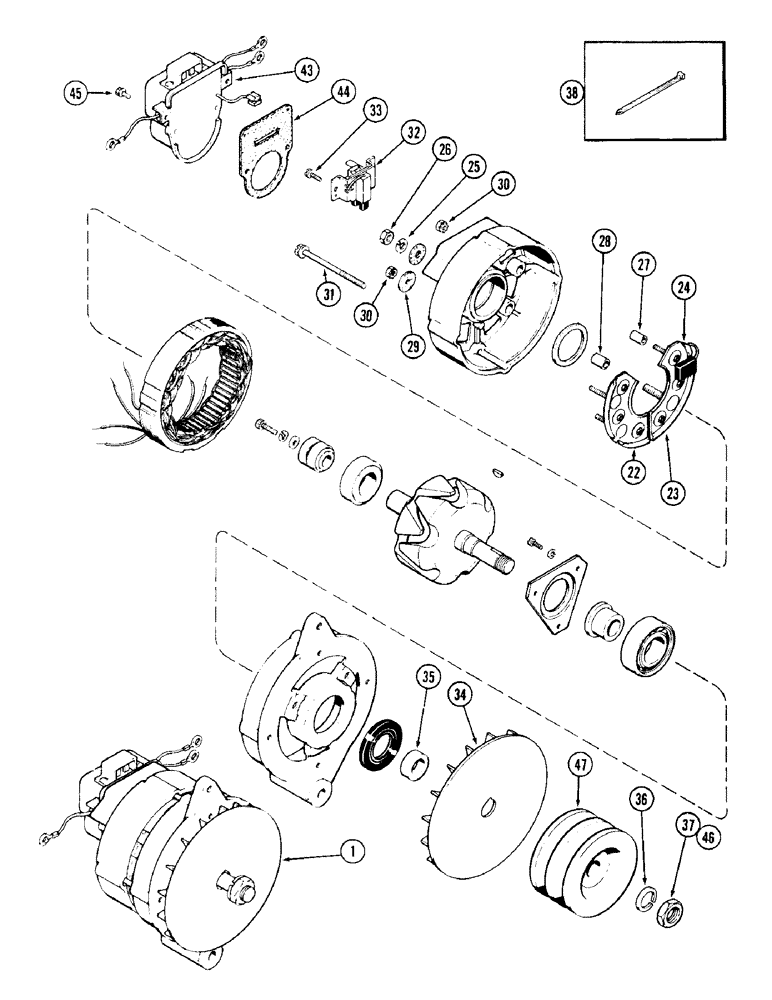

Запчасти Case 1187 (074) - R36587 ALTERNATOR, 504BDT DIESEL ENGINE (06) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
R36587
ALTERNATOR
ASSEMBLY -, Includes: Ref. 22 - 45 and Ref. 2 - 18 on Fig. 72)
1шт.
22
A47165
DIODE
RECTIFIER ASSEMBLY - negative, with diodes and studs, Serial Range: (Anode-plate)
1шт.
23
A47164
DIODE
RECTIFIER ASSEMBLY - positive, with diodes and studs, Serial Range: (Cathode-plate)
1шт.
24
A45253
DIODE ELEMENT
DIODE ASSEMBLY - trio
1шт.
25
192-18
LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND
WASHER, LOCK, #10
3шт.
25
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, 1/4"
1шт.
26
129-17
NUT,Hex, #10 - 24
NUT - hex, no. 10 NC
3шт.
26
129-141
JAM NUT,Jam, 1/4"-20, G5
1шт.
27
A45254
SPACER
- trio diode
1шт.
28
A44771
SLEEVE CYLINDER
SLEEVE - insulator, 1/4 x 5/16 x 1/2 inch
1шт.
28
A47156
SLEEVE CYLINDER
SLEEVE - insulator, 3/16 x 1/4 x 3/8 inch
1шт.
29
A47613
WASHER
- insulating, 1/4 x 3/4 x 1/16 inch
2шт.
29
A47612
WASHER
- insulating, 3/16 x 3/4 x 1/16 inch
2шт.
30
A41060
LOCK NUT
NUT - hex, Shakeproof, no. 10-24
3шт.
31
A45030
BOLT
- no. 10 NF x 4 inch
4шт.
32
A41048
BRUSH, COMMUTATOR
BRUSH ASSEMBLY - with holder
1шт.
33
A44780
SCREW
- brush holder to rear housing
2шт.
34
A42431
FAN
- ventilating
1шт.
35
A47162
SPACER
- fan
1шт.
36
192-25
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
1шт.
37
A41035
NUT
- pulley retaining (Used with Case engine)
1шт.
38
T54520
STRAP
WRAP - wire locking, nylon tie
1шт.
43
A47167
REGULATOR
ASSEMBLY - voltage
1шт.
44
A47159
GASKET
- regulator to rear housing
1шт.
45
182-519
SCREW,Sl Pan Hd, #4 - 40 x 3/16"
- regulator mounting, self tapping, no. 8-32 x 1/2 inch
4шт.
45
187-1089
SELF-TAP SCREW,Hex Wash Hd, #8 x 3/4"
SCREW - regulator mounting, hex, slotted washer head, no. 8-32 x 3/4 inch
2шт.
46
S114639
NUT
- pulley retaining (Used with Detroit diesel engine)
1шт.
47
A41361
PULLEY
- used with Case engine
1шт.
A44768
DIODE
PULLEY - used with Detroit diesel engine
1шт.
Выбрано товаров: 29
