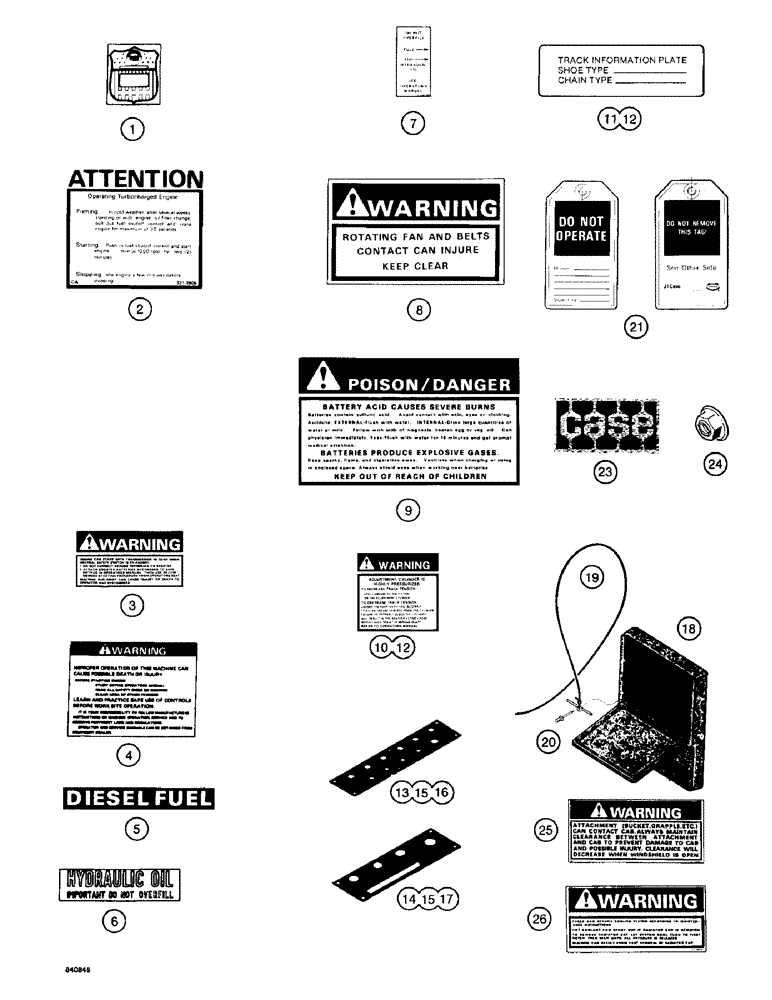

Запчасти Case 1187 (350) - DECALS (05) - UPPERSTRUCTURE CHASSIS

1

S242429

DECAL

- PCSA

1шт.

Part of Decal Kit, P/N S618587

1шт.

2

321-2605

DECAL

- turbocharger operating precautions

1шт.

Part of Decal Kit, P/N S618587

1шт.

3

321-6718

DECAL

- warning, starter service (replaces 321-3709)

1шт.

Part of Decal Kit, P/N S618587

1шт.

4

S231311

DECAL

- warning, safe operation

1шт.

Part of Decal Kit, P/N S618587

1шт.

5

321-2601

DECAL

- diesel fuel

1шт.

Part of Decal Kit, P/N S618587

1шт.

6

S80209

DECAL

- hydraulic oil fill

1шт.

Part of Decal Kit, P/N S618587

1шт.

7

S233480

DECAL

- hydraulic oil lever

1шт.

Part of Decal Kit, P/N S618587

1шт.

8

321-3596

DECAL

- warning, engine fan

3шт.

Part of Decal Kit, P/N S618587

1шт.

9

321-6714

DECAL

- warning, battery (replaces 321-2996)

1шт.

Part of Decal Kit, P/N S618587

1шт.

10

321-6272

DECAL

- warning, track adjustment cylinder

2шт.

11

S241890

DECAL

- identification, track type

1шт.

12

S23395

SCREW

- drive, no. 7 - 32 NC x 5/16", not shown

10шт.

13

321-6098

PANEL

DECAL - instrument panel, left-hand console

1шт.

14

321-6097

PANEL

DECAL - instrument panel, right-hand console

1шт.

15

179-156

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

MACHINE SCREW - no. 10 - 24 NC x 3/4", black, not shown

10шт.

16

S117167

CLIP

NUT - u-type, no. 10 - 24 NC, not shown

6шт.

17

86632551

NUT,#10-24, GB

NUT, LOCK, , Not shown #10-24, GB

4шт.

18

S511692

BOX

- operators manual

1шт.

19

A141917

ROPE

CORD -, Serial Range: manual-box

1шт.

20

151-532

RIVET,Pop, 3/16" x .700"

POP RIVET - manual box to cab

2шт.

21

321-4614

TAG

- do not operate

1шт.

22

321-3067

DECAL

- engine data, Case engine only, not shown, see Figure 36

1шт.

23

321-4739

EMBLEM

- Case, on cab side

1шт.

24

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - push, emblem

2шт.

25

321-6694

DECAL

- warning, attachment to cab clearance

1шт.

26

321-6672

DECAL

- warning, cooling system service

1шт.

S618587

KIT

- decal, English, Includes: Ref. 1, 2, 3, 4, 5, 6, 7, 8, and 9, reference numbers 1 - 11 on Figure 348, and reference number 1 on Figure 354

1шт.
