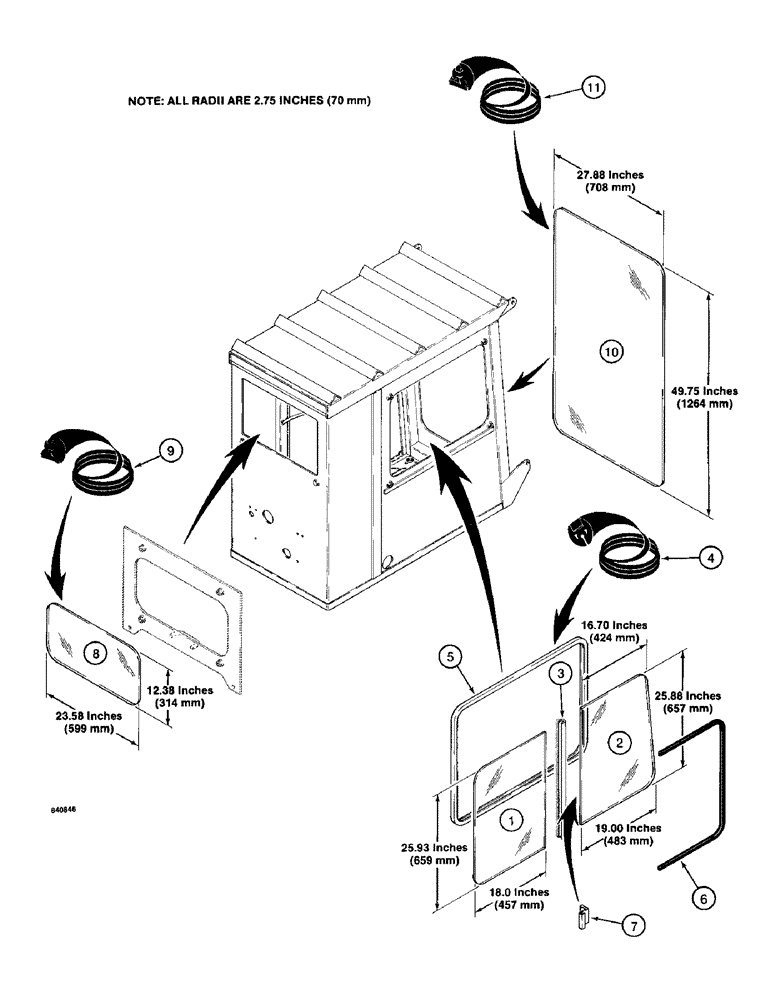

Запчасти Case 1187 (346) - LOGGER CAB GLASS (05) - UPPERSTRUCTURE CHASSIS

1

REF

INSTRUCTION

GLASS - cab, door and right side, stationary, see art for dimensions

2шт.

All cab laminated safety glass to be obtained from local sources. Cut to dimensions shown on art.

1шт.

2

REF

INSTRUCTION

GLASS - cab, door and right side, moveable, see art for dimensions

2шт.

All cab laminated safety glass to be obtained from local sources. Cut to dimensions shown on art.

1шт.

3

REF

INSTRUCTION

SEAL - between stationary and moveable glass, 26" (660 mm) long, cut from S118385

2шт.

4

REF

INSTRUCTION

MOULDING - glass, door and cab side, 120" (3048 mm) long, cut from S118634

2шт.

5

REF

INSTRUCTION

SEAL - glass channel, 120" (3048 mm) long, cut from S118387

2шт.

6

REF

INSTRUCTION

SEAL - rubber, glass spacer, 60" (1524 mm) long, cut from S118386

2шт.

7

S118207

HANDLE

- pull, side window

2шт.

8

REF

INSTRUCTION

GLASS - cab, rear window, see art for dimensions

1шт.

All cab laminated safety glass to be obtained from local sources. Cut to dimensions shown on art.

1шт.

9

REF

INSTRUCTION

MOULDING - rear window glass, 68.5" (1740 mm) long, cut from S118384

1шт.

10

REF

INSTRUCTION

GLASS - windshield, see Figure 346 for dimensions

1шт.

All cab laminated safety glass to be obtained from local sources. Cut to dimensions shown on art.

1шт.

11

REF

INSTRUCTION

MOULDING - windshield glass, 154" (3912 mm) long, cut from S118384

1шт.

S118384

SEAL

MOULDING - glass, bulk roll, 50' (15.24 M) long

1шт.

S118385

SEAL

- glass, bulk roll, 6' (1.83 M) long

1шт.

S118386

SEAL

SEAL - glass spacer, 50' (15.24 M) long

1шт.

S118387

SEAL

- glass, bulk roll, 11' (3.35 M) long

1шт.

S118634

SEAL

MOULDING - glass, 50' (15.24 M) roll

1шт.
