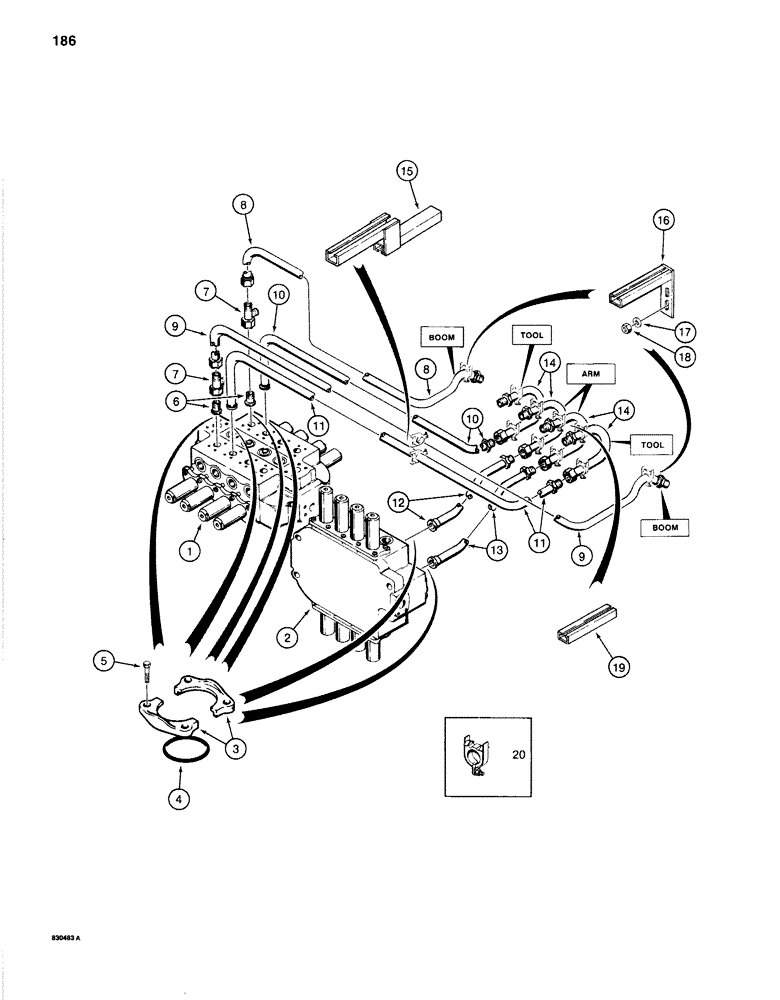

Запчасти Case 1280B (186) - BOOM, ARM, AND TOOL CIRCUITS, TUBES FROM VALVES (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE - outside, see Figure 206 for correct valve and component parts

1шт.

2

S514301

VALVE

CONTROL VALVE - inside, parts list Figure 202

1шт.

3

A12306

FLANGE

SPLIT FLANGE - tube

12шт.

4

D31968

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

- tube

6шт.

5

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

24шт.

6

S232092

TUBE

ADAPTER - straight, split, Serial Range: flange-tee

2шт.

7

218-5223

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12, Fem Sw Run

- outside ports

2шт.

8

S612506

TUBE ASSY.

TUBE - boom circuit, short

1шт.

9

S516117

TUBE ASSY.,1.25" OD

TUBE - boom circuit, long

1шт.

10

S235356

TUBE ASSY.,1.25" OD

TUBE - tool circuit, short

1шт.

11

S235355

TUBE ASSY.,1.25" OD

TUBE - tool circuit, long

1шт.

12

S512858

TUBE ASSY.,1.25" OD x 16.71, 3.92" L

TUBE - arm circuit, from top port

1шт.

13

S512859

TUBE ASSY.,1.25" OD x 16.71, 10.01" L

TUBE - arm circuit, from bottom port

1шт.

14

S234334

TUBE ASSY.

TUBE - U-shape

4шт.

15

S238404

BRACKET - tube clamp

1шт.

16

S238188

BRACKET

- tube clamp

2шт.

17

S95569

WASHER

- flat, 1/2", hardened

4шт.

18

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

4шт.

19

S98782

CHANNEL

- tube clamp

1шт.

20

S93266

CLAMP

- tube

12шт.
