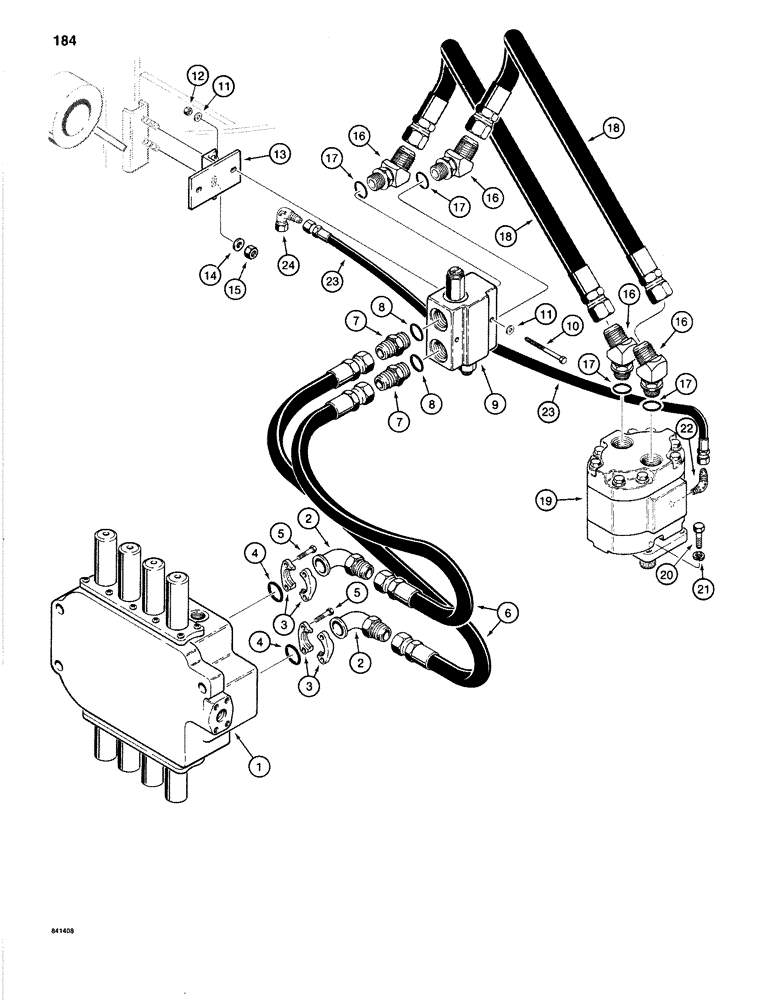

Запчасти Case 1280B (184) - SWING MOTOR HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

S514301

VALVE

CONTROL VALVE - inside, parts list Figure 202

1шт.

2

S235569

ELBOW

TUBE - 90 degree, at control valve

2шт.

3

A12306

FLANGE

SPLIT FLANGE - tube

4шт.

4

D31968

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

- tube

2шт.

5

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

8шт.

6

S401536

HOSE

- control valve to crossover relief valve, 30" (762 mm) long

2шт.

7

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, at crossover relief valve, Incl. Ref. 8

2шт.

8

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

9

S236820

VALVE

RELIEF VALVE - crossover, swing motor hydraulic circuit, parts list Figure 222

1шт.

10

113-167

BOLT,Hex, 5/16" - 18 x 4", Gr 5

2шт.

11

195-521

WASHER,5/16", SAE

- flat, 5/16"

4шт.

12

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

2шт.

13

S242257

BRACKET

- relief valve, at mast ear on turntable

1шт.

14

195-530

WASHER,7/16"

- flat, 1/2"

2шт.

15

131-208

SPECIAL NUT,1/2"-13

NUT - hex, self-locking, 1/2" - 13 NC

2шт.

16

218-5140

45 ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 45 degree, adjustable, Includes: Ref. 17

4шт.

17

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

18

S8628

HOSE

- relief valve to swing motor, 36" (914 mm) long

2шт.

19

S515586

MOTOR

- swing, hydraulic, parts list Figure 228

1шт.

20

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

21

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

22

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degree, motor drain port

1шт.

23

S242341

HOSE ASSY.

HOSE - motor drain, 27-1/2" (700 mm) long

1шт.

24

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree

1шт.
