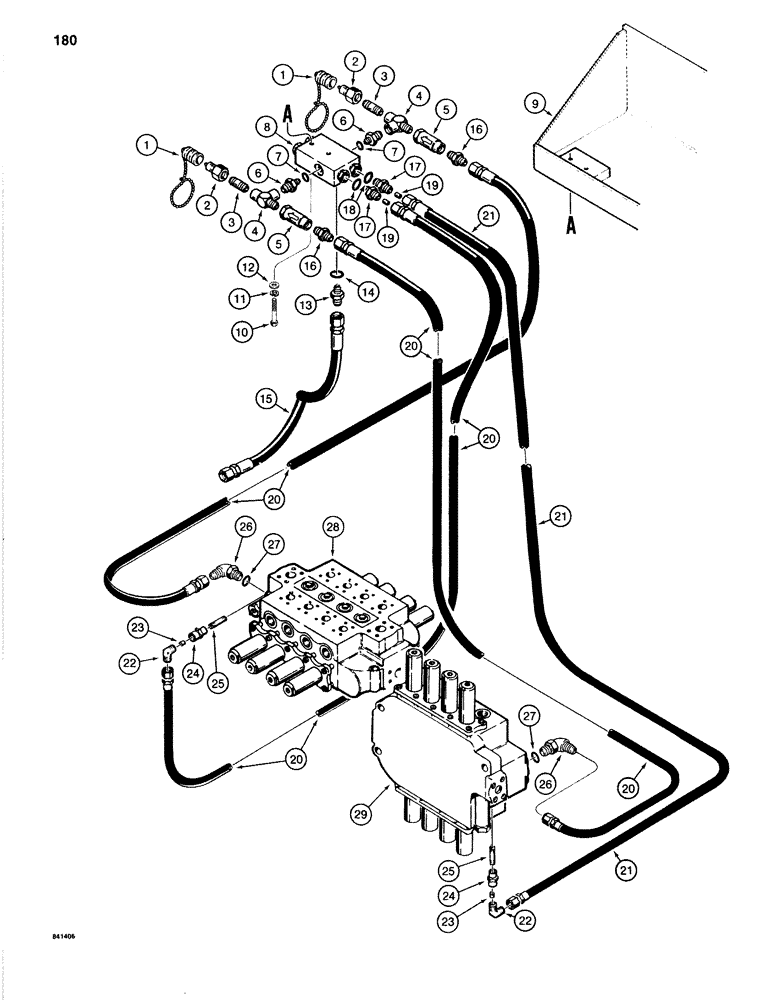

Запчасти Case 1280B (180) - MAIN CONTROL VALVE POWER SENSING LINES, USED WITH CASE ENGINE (08) - HYDRAULICS

1

S206608

CAP

- dust, with chain

2шт.

2

S206607

DISC

QUICK DISCONNECT - test

2шт.

3

221-130

PIPE,Nipple, 1/4" NPT x 7/8"

NIPPLE - pipe, 1/4" NPT x 7/8"

2шт.

4

217-1062

TEE,1/8" - 18 Female x 1/4" - 18 Male Run

- quick disconnects and screen to sensing valve

2шт.

5

S98004

FILTER

SCREEN - relief valve protecting

2шт.

6

218-5443

FITTING

ADAPTER - straight, side ports, Includes: Ref. 7

2шт.

7

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

8

S509073

VALVE

RELIEF VALVE - power sensing, parts list Figure 220

1шт.

9

S516619

BATTERY BOX

BOX - battery, sensing valve mounts to tapped block

1шт.

10

113-14

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Hex, 1/4"- 20 x 2", G5

2шт.

11

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

12

195-518

WASHER,1/4", SAE

- flat, 1/4"

2шт.

13

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., , straight, bottom port, Incl. Ref. 14 7/8"-14, 37º x 3/4"-16, O-Ring

1шт.

14

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.

15

S8581

HOSE ASSY.

HOSE - return, to reservoir, 48" (1219 mm) long

1шт.

16

218-455

HYD CONNECTOR,3/4" - 16 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - straight, to hoses

2шт.

17

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, bottom ports, Includes: Ref. 18

2шт.

18

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

19

S114908

RESTRICTOR

- flow

2шт.

20

S11229

HOSE ASSY.

HOSE - from control valves, 49" (1245 mm) long

3шт.

21

S61247

HOSE

- from control valve, 60" (1524 mm) long

1шт.

22

218-1055

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1/4"-18, NPTF

- 90 degree, at main reliefs

2шт.

23

S114908

RESTRICTOR

- flow

2шт.

24

221-790

ADAPTER - straight

2шт.

25

221-1908

PIPE,Nipple, 3/4" NPT x 2", X-Strng

NIPPLE - 1/8" NPT x 2"

2шт.

26

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

- 90 degree, Includes: Ref. 27

2шт.

27

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

28

REF

INSTRUCTION

CONTROL VALVE - outside, see Figure 206 for correct valve and component parts

1шт.

29

S514301

VALVE

CONTROL VALVE - inside, parts list Figure 202

1шт.
