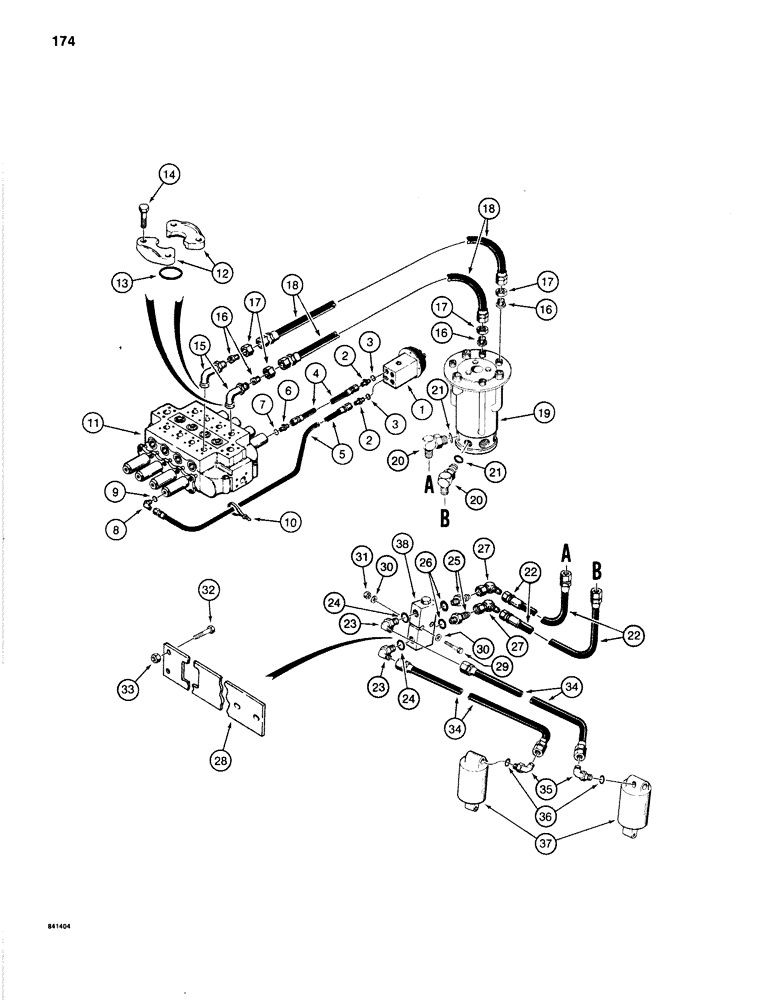

Запчасти Case 1280B (174) - HYDRAULIC LEVELER LINES, MODELS WITHOUT AUXILIARY HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

S513193

VALVE

CONTROL VALVE - right-hand lever, parts list Figure 216

1шт.

2

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, control valve ports, Incl. Ref. 3

2шт.

3

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

4

S241220

HOSE ASSY.

HOSE - to control valve, 70" (1778 mm) long

1шт.

5

S241222

HOSE ASSY.

HOSE - to control valve, 100" (2540 mm) long

1шт.

6

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, at control valve, Incl. Ref. 7

1шт.

7

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

8

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, at control valve, Includes: Ref. 9

1шт.

9

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

10

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

11

REF

INSTRUCTION

CONTROL VALVE - outside, see Figure 206 for correct valve and component parts

1шт.

12

A12306

FLANGE

SPLIT FLANGE - tube

4шт.

13

D31968

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

- tube

2шт.

14

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

8шт.

15

S232114

ADAPTER

TUBE - from control valve

2шт.

16

218-796

REDUCER,37 Degree, 5/8" x 3/8" Tube

ADAPTER - tube to hose

4шт.

17

218-346

TUBE NUT,37 Degree, 1 1/16"-12, Type B

NUT - adapter

4шт.

18

S11231

HOSE ASSY.

HOSE - to swivel assembly, 68" (1727 mm) long

2шт.

19

S618678

LINK

SWIVEL ASSEMBLY - parts list Figure 230

1шт.

20

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, Includes: Ref. 21

2шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

22

S11226

HOSE

- to check valve, 20" (508 mm) long

2шт.

23

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, check valve ports, Includes: Ref. 24

2шт.

24

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.

25

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, Incl. Ref 26

2шт.

26

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.

27

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, swivel

2шт.

28

S119046

BAR

BRACKET - check valve mounting

1шт.

29

113-15

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

- hex head, 1/4" - 20 NC x 2-1/4"

2шт.

30

195-102

WASHER,1/4"

- flat, 1/4"

4шт.

31

86625061

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC

2шт.

32

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

33

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

34

S11226

HOSE

- to leveler cylinders, 20" (508 mm) long

2шт.

35

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, at leveler cylinders, Includes: Ref. 36

2шт.

36

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.

37

S611706

CYLINDER

- leveler, parts list Figure 240

2шт.

38

S516156

CHECK VALVE

- leveler, parts list Figure 224

1шт.
