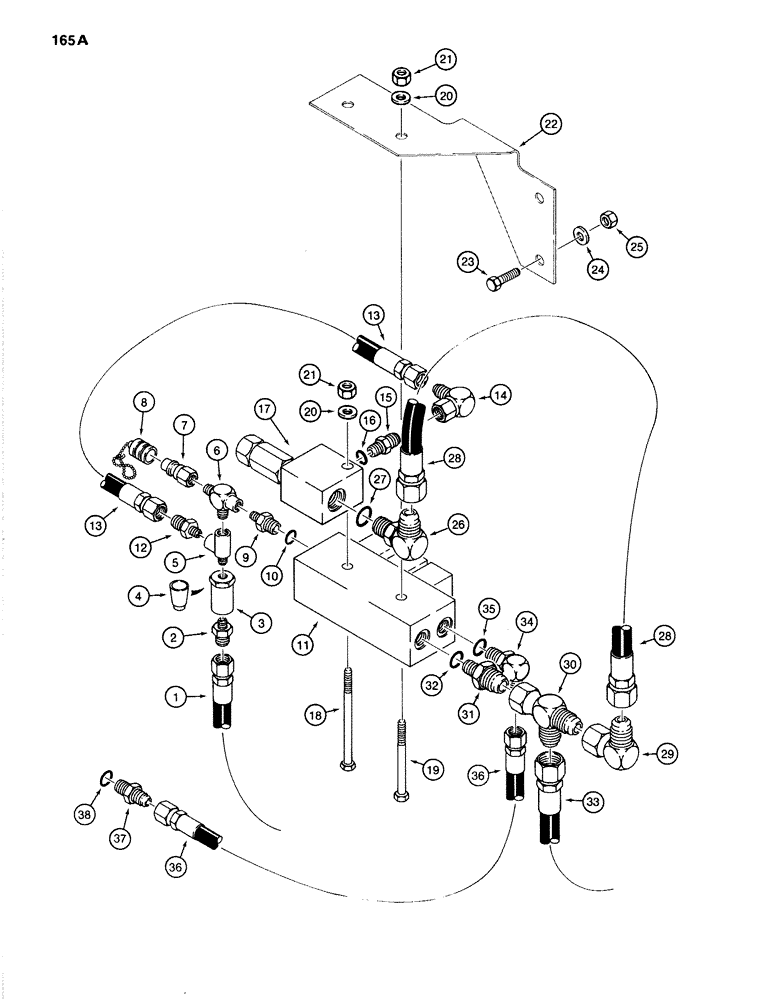

Запчасти Case 1280B (165A) - HYD. CIRCUIT FOR CONTROLS, SOLENOID CONTROL VALVE CONNECTING LINES W/ REMOTE MOUNTED RELIEF VALVE (08) - HYDRAULICS

1

REF

INSTRUCTION

HOSE - from charging pump, see Figures 160 and 162 for hydraulic pump and connecting lines

1шт.

2

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - straight

1шт.

3

S242548

FILTER ASSY

FILTER - solenoid control valve, 25 micron, Includes: Ref. 4

1шт.

4

N9426

ELEMENT

- filter, 25 micron

1шт.

5

217-1062

TEE,1/8" - 18 Female x 1/4" - 18 Male Run

- filter to test disconnect

1шт.

6

217-1175

TEE,1/8"-27 Male x 1/8"-27 Female Run

- at test disconnect

1шт.

7

S206607

DISC

QUICK DISCONNECT - male, test

1шт.

8

S206608

CAP

- dust, with chain

1шт.

9

218-5443

FITTING

ADAPTER - straight, Includes: Ref. 10

1шт.

10

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

11

S516914

VALVE, CONTROL

SOLENOID CONTROL VALVE - parts list Figure 218

1шт.

12

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - straight

1шт.

13

S241217

HOSE ASSY.

HOSE - tee to relief valve, 21" (533 mm) long

1шт.

14

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree

1шт.

15

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - male, Includes: Ref. 16

1шт.

16

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.

17

S242705

VALVE, PRESSURE RELI

RELIEF VALVE ASSEMBLY - hydraulic control circuit

1шт.

18

113-178

BOLT,Hex, 5/16" - 18 x 4-1/2", Gr 5

- hex head, 5/16" - 18 NC x 4-1/2"

1шт.

19

113-177

BOLT,Hex, 5/16" - 18 x 3", Gr 5

1шт.

20

195-521

WASHER,5/16", SAE

- flat, 5/16"

4шт.

21

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

2шт.

22

S516661

BRACKET

- valve mounting

1шт.

23

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

24

195-521

WASHER,5/16", SAE

- flat, 5/16"

4шт.

25

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

2шт.

26

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

- adjustable, 90 degree, Includes: Ref. 27

1шт.

27

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.

28

S8577

HOSE

- relief valve to return, 20" (508 mm) long

1шт.

29

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

30

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

- return line

1шт.

31

218-5360

HYD CONNECTOR,7/8"-14, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, Includes: Ref. 32

1шт.

32

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

33

S8581

HOSE ASSY.

HOSE - return, tee to reservoir, 48" (1219 mm) long

1шт.

34

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- adjustable, 90 degree, Includes: Ref. 35

1шт.

35

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

36

S241220

HOSE ASSY.

HOSE - manifold to solenoid control valve, 70" (1778 mm) long

1шт.

37

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, Incl. Ref. 38

1шт.

38

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.
