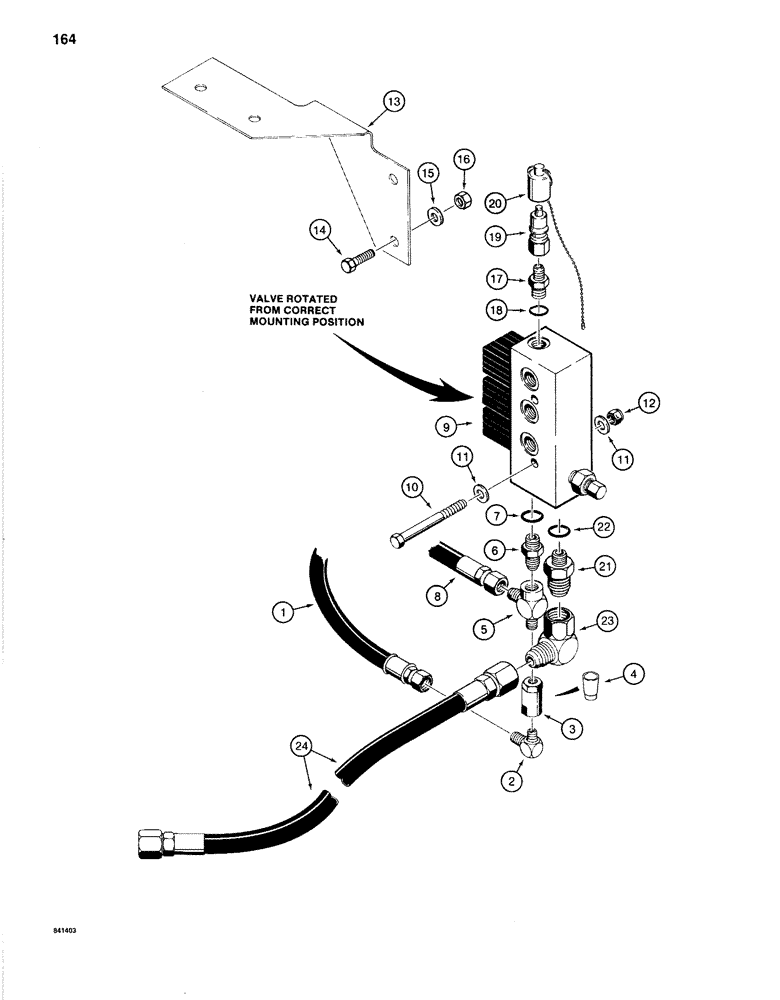

Запчасти Case 1280B (164) - HYD. CIRCUIT FOR CONTROLS, SOLENOID CONTROL VALVE CONNECTING LINES W/ RELIEF VALVE IN SOLENOID VALVE (08) - HYDRAULICS

1

REF

INSTRUCTION

HOSE - from charging pump, see Figures 160 and 162 for hydraulic pump and connecting lines

1шт.

2

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- male, 90 degree, hose to filter

1шт.

3

S242548

FILTER ASSY

FILTER - solenoid control valve, 25 micron, Includes: Ref. 4

1шт.

4

N9426

ELEMENT

- filter, 25 micron

1шт.

5

S114909

TEE

- special, Serial Range: filter-hoses

1шт.

6

218-5443

FITTING

ADAPTER - straight, tee to valve, Includes: Ref. 7

1шт.

7

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

8

S241220

HOSE ASSY.

HOSE - tee to manifold block, 70" (1778 mm) long

1шт.

9

S516559

VALVE

SOLENOID CONTROL VALVE - parts list Figure 218

1шт.

10

113-177

BOLT,Hex, 5/16" - 18 x 3", Gr 5

2шт.

11

195-521

WASHER,5/16", SAE

- flat, 5/16"

4шт.

12

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

2шт.

13

S516661

BRACKET

- mounting, solenoid control, Serial Range: valve-turntable

1шт.

14

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

15

195-521

WASHER,5/16", SAE

- flat, 5/16"

4шт.

16

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

2шт.

17

218-5443

FITTING

ADAPTER - straight, valve to disconnect, Includes: Ref. 18

1шт.

18

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

19

S206607

DISC

QUICK DISCONNECT - male, test

1шт.

20

S206608

CAP

- dust, with chain

1шт.

21

218-5360

HYD CONNECTOR,7/8"-14, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, valve to elbow, Includes: Ref. 22

1шт.

22

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

23

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

24

S8581

HOSE ASSY.

HOSE - return, valve to manifold tube at reservoir, 48" (1219 mm) long

1шт.
