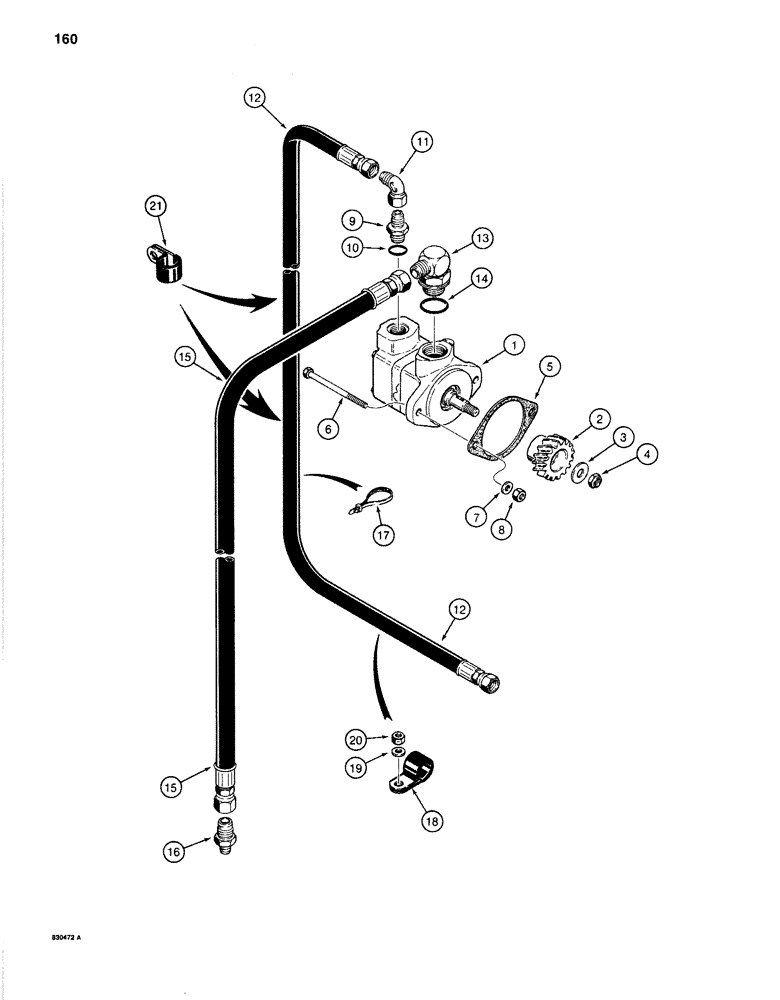

Запчасти Case 1280B (160) - HYDRAULIC CIRCUIT FOR CONTROLS, HYDRAULIC PUMP AND LINES - CASE ENGINE (08) - HYDRAULICS

1

S516451

PUMP

- hydraulic, parts list Figure 200

1шт.

2

L43703

GEAR

- pump drive shaft

1шт.

3

195-530

WASHER,7/16"

- flat, 1/2"

1шт.

4

131-58

LOCK NUT,1/2"-20, G5

NUT - hex, self-locking, 1/2" - 20NF, special

1шт.

5

S108814

GASKET

-, Serial Range: pump-engine

1шт.

6

113-267

BOLT,Hex, 3/8" - 16 x 4", Gr 5

2шт.

7

196-1

WASHER,13/32" x 13/16" x .089", HDN

- flat, 3/8", hardened

2шт.

8

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

9

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, pump outlet port, Includes: Ref. 10

1шт.

10

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.

11

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree

1шт.

12

S241223

HOSE ASSY.

HOSE - to solenoid control valve, 125" (3175 mm) long, see Figures 164 and 165A for connecting parts to solenoid control valve

1шт.

13

218-5130

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

pump inlet port, Incl. Ref 14 90º, 7/8"-14, 37º x 1 5/16"-12, O-Ring

1шт.

14

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

15

S8581

HOSE ASSY.

HOSE - from cooler line, 48" (1219 mm) long

1шт.

16

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight, cooler line to hose, see Figure 154 for hydraulic oil cooler circuit

1шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

18

R14668

CLAMP

- hose, lower

1шт.

19

195-104

WASHER,3/8"

- flat, 3/8"

1шт.

20

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

1шт.

21

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- hose, upper, at engine

2шт.
