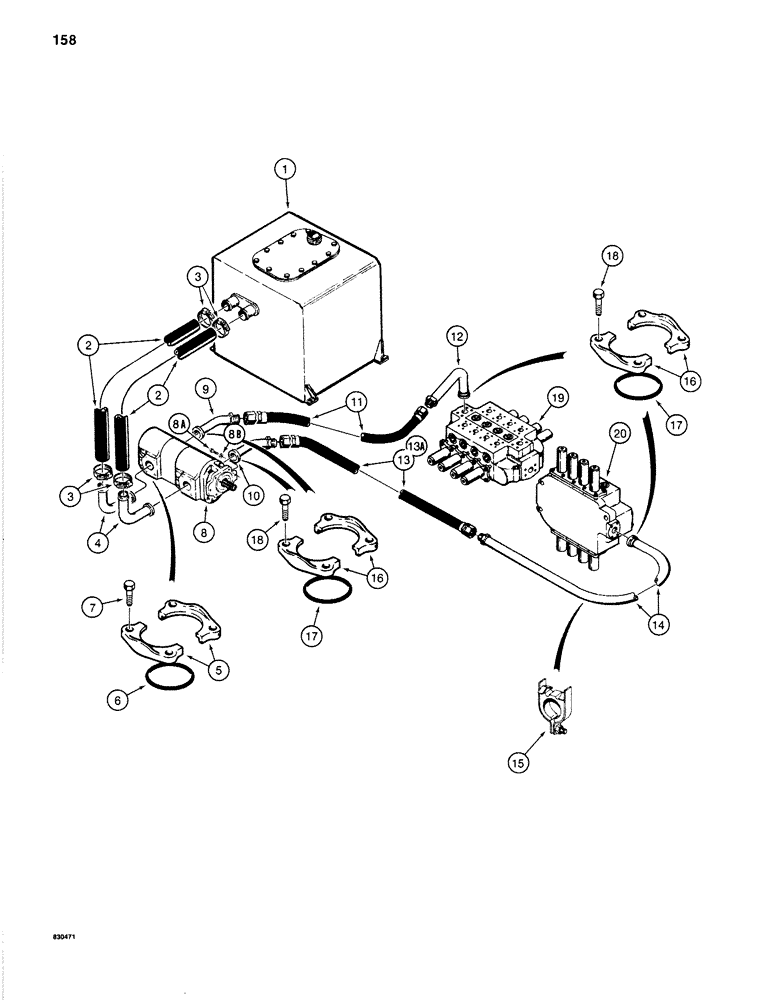

Запчасти Case 1280B (158) - MAIN HYDRAULIC PUMP LINES (08) - HYDRAULICS

1

REF

INSTRUCTION

RESERVOIR - hydraulic oil, see Figure 152

1шт.

2

REF

INSTRUCTION

HOSE - to pump, 37" (940 mm) long, cut from S118379, see below

2шт.

Adopt S120580X and cut to fit

1шт.

3

214-353

CLAMP,#46, 2.62"-2.31", T-Bolt

Hose

4шт.

4

S238509

TUBE,2" OD x 4.81, 8" L

To pump, used with Case engine

2шт.

4

S238798

TUBE,2" OD x 6.8, 4.7" L

To pump, used with Detroit Diesel engine

2шт.

5

L14386

CLAMP

SPLIT FLANGE - tube, used with Case engine

4шт.

5

A14141

FLANGE

SPLIT - tube, used with Detroit Diesel engine

4шт.

6

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

Tube, used with Case engine

2шт.

6

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

Tube, used with Detroit Diesel engine

2шт.

7

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

Used with Case engine

8шт.

7

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Used with Detroit Diesel engine

8шт.

8

REF

INSTRUCTION

PUMP - main hydraulic, see Figures 196 and 198 for correct pump and component parts

1шт.

8a

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

2шт.

8b

196-20

WASHER,41/64" x 1.047" x .134", HDN

2шт.

9

S235919

ADAPTER

TUBE - from rear pump port, used with Case engine

1шт.

9

S26936

TUBE

From rear pump port, used with Detroit Diesel engine

1шт.

10

S26936

TUBE

From front pump port, all models

1шт.

11

S8628

HOSE

To outside control valve, 36" (914 mm) long

1шт.

12

S236427

TUBE,1.25" OD x 8.06, 5.56" L

To outside control valve

1шт.

13

S235936

HOSE

To inside control valve, 49" (1245 mm) long, if used, see ref. 13A

1шт.

13a

S8628

HOSE

To inside control valve, 36" (914 mm) long, if used, see ref. 13

1шт.

14

S236934

TUBE,1.25" OD x 5.06, 19.56" L

SPARE PART To inside control valve, used with Case engine

1шт.

14

S241907

TUBE ASSY.,1.25" OD x 15.05, 5" L

To inside control valve, used with Detroit Diesel engine, when replacing tube on machines with 36" (914 mm) hose, also order S235936 hose, ref. 13A

1шт.

15

S93266

CLAMP

Tube

1шт.

16

A12301

CLAMP,Half

SPLIT - tube

8шт.

17

S6586

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

Tube

4шт.

18

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

16шт.

19

REF

INSTRUCTION

CONTROL VALVE - outside, parts list Figure 206

1шт.

20

S514301

VALVE

CONTROL - inside, see Figure 202 for correct valve and component parts

1шт.

S118379

HOSE,2.00" ID x 60.00", SAE 100R4

1шт.
