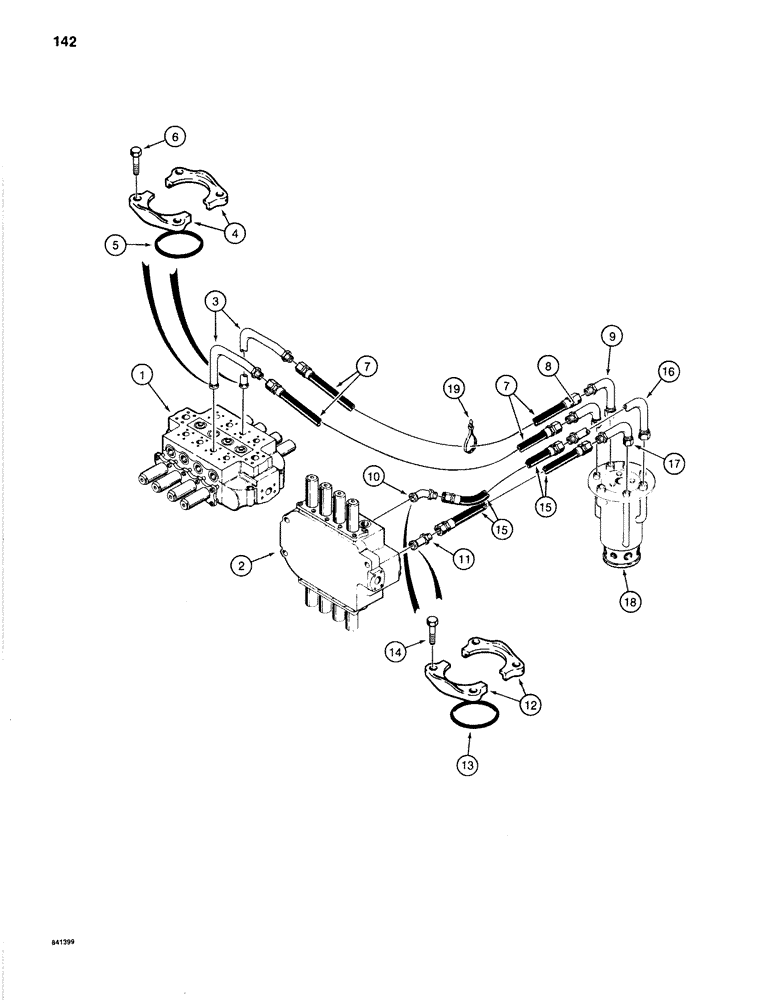

Запчасти Case 1280B (142) - TRACK DRIVE HYDRAULIC LINES - UPPER (06) - POWER TRAIN

1

REF

INSTRUCTION

CONTROL VALVE - outside, parts list Figure 206

1шт.

2

S514301

VALVE

CONTROL VALVE - inside, see Figure 202 for correct valve and component parts

1шт.

3

S231597

TUBE ASSY.,1.25" OD x 8.4, 6.86" L

TUBE - from outside valve ports

2шт.

4

A12306

FLANGE

SPLIT FLANGE - tube

4шт.

5

D31968

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

- tube

2шт.

6

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

8шт.

7

S8628

HOSE

- from outside control valve, 36" (914 mm) long

2шт.

8

S232107

TUBE ASSY.,1" OD x 7.65, 4.10" L

TUBE - to swivel port No. 2

1шт.

9

S232827

TUBE ASSY.,1" OD x 6.67, 4.55" L

TUBE - to swivel port No. 3

1шт.

10

S232093

FITTING

TUBE - from inside control valve, top port

1шт.

11

S232092

TUBE

- from inside control valve, bottom port

1шт.

12

A12306

FLANGE

SPLIT FLANGE - tube

4шт.

13

D31968

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

- tube

2шт.

14

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

8шт.

15

S401530

HOSE ASSY.

HOSE - from inside control valve, 20" (508 mm) long

2шт.

16

S232828

TUBE ASSY.,1" OD x 10.21, 6.68" L

TUBE - to swivel port No. 6

1шт.

17

S232107

TUBE ASSY.,1" OD x 7.65, 4.10" L

TUBE - to swivel port No. 7

1шт.

18

S618678

LINK

SWIVEL ASSEMBLY - parts list Figure 230

1шт.

19

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.
