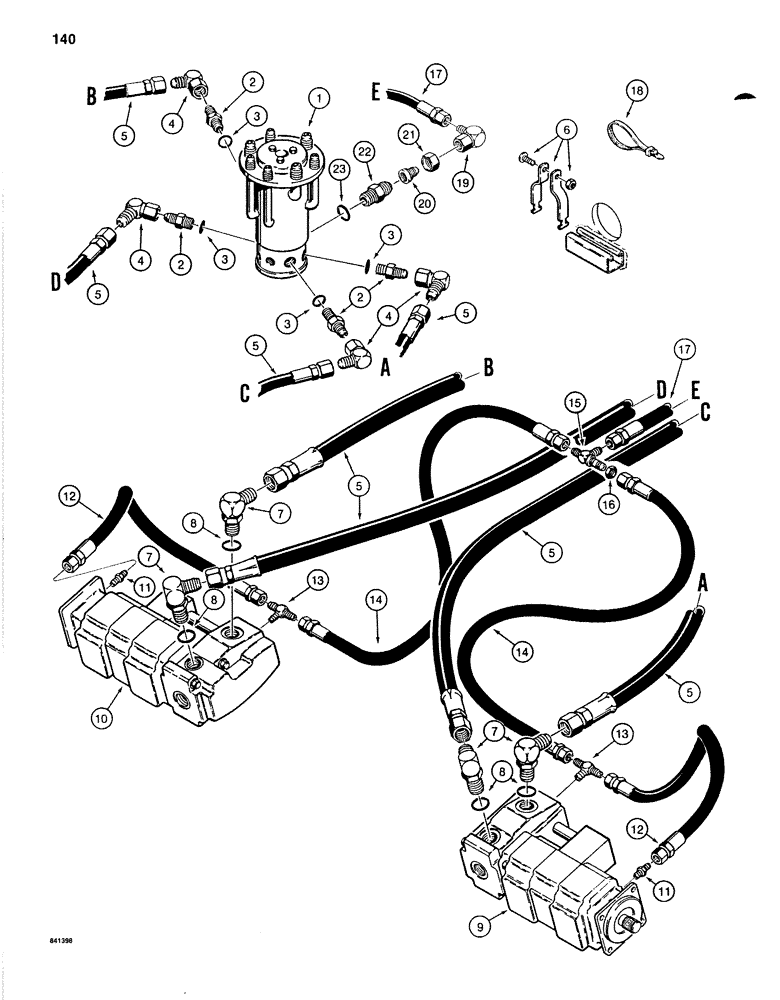

Запчасти Case 1280B (140) - TRACK DRIVE HYDRAULIC LINES - LOWER (06) - POWER TRAIN

1

REF

INSTRUCTION

SWIVEL ASSEMBLY - hydraulic, parts list Figure 230

1шт.

2

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., straight, at swivel ports No. 2, 3, 6 and 7, Incl. Ref. 3

4шт.

3

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

4

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- swivel, 90 degree, at swivel ports No. 2, 3, 6 and 7

4шт.

5

S401534

HOSE ASSY.

HOSE - track drive circuits, 66" (1676 mm) long

4шт.

6

S98324

CLAMP

- hose

8шт.

7

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

at drive motors, Incl. Ref. 8 90º, 1 5/16"-12, 37º x 1 5/16"-12, O-Ring

4шт.

8

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

9

S617342

MOTOR

- hydraulic, track drive, right-hand, parts list Figure 136

1шт.

10

S617341

MOTOR

- hydraulic, track drive, left-hand, parts list Figure 136

1шт.

11

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - motor drain ports

2шт.

12

S241217

HOSE ASSY.

HOSE - motor drain ports, 21" (533 mm) long

2шт.

13

218-553

TEE,9/16"-18, 37 Degree x 1/4"-18, NPTF Br

- motor drain ports

2шт.

14

S241217

HOSE ASSY.

HOSE - tee to tee, 21" (533 mm) long

2шт.

15

218-1240

FITTING

TEE - bulkhead, hose connecting

1шт.

16

218-1254

LOCK NUT,Blkhd, 9/16"-18

NUT - lock, bulkhead tee

1шт.

17

S241220

HOSE ASSY.

HOSE - to swivel, 70" (1778 mm) long

1шт.

18

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

19

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- swivel, 90 degree, at swivel port No. 1

1шт.

20

218-795

REDUCER,37 Degree, 3/4" x 3/8" Tube

ADAPTER - reducer, at swivel port No. 1

1шт.

21

218-346

TUBE NUT,37 Degree, 1 1/16"-12, Type B

NUT - reducer adapter

1шт.

22

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - male, straight, at swivel port No. 1, Incl. Ref. 23

1шт.

23

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.
