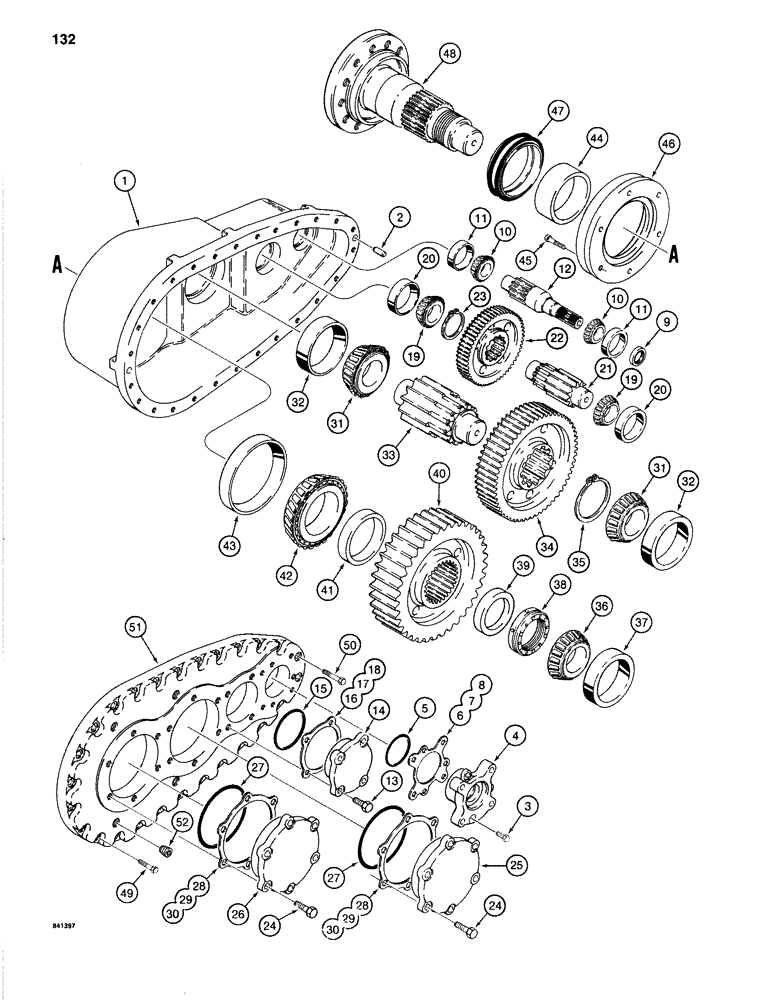

Запчасти Case 1280B (132) - FINAL DRIVE TRANSMISSION (06) - POWER TRAIN

S618099

TRANSMISSION

ASSEMBLY - final drive, Includes: Ref. 1 - 52

2шт.

1

S956526

HOUSING

- gear, final drive

1шт.

Must use Loctite compound.

1шт.

2

S65037

DOWEL

PIN - 5/8" x 1-1/4"

2шт.

3

814-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex head, 12 mm - 1.75 x 25 mm (8.8)

3шт.

4

S515461

COVER

- bearing, input shaft

1шт.

5

A30389

O-RING,3.359" ID x 3.637" OD x 0.139"

- cover

1шт.

6

S240543

SHIM,.127mm Thk

Input shaft bearing cover (.005") .127mm Thk

1шт.

7

S240544

SHIM,.177mm Thk

Input shaft bearing cover (.007") .177mm Thk

1шт.

8

S240545

SHIM,.508mm Thk

Input shaft bearing cover (.020") .508mm Thk

1шт.

9

F53634

SEAL

OIL SEAL - input shaft

1шт.

10

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

TAPERED ROLLER BEARING - input shaft

2шт.

11

A30580

BEARING CUP

CUP - bearing, input shaft

2шт.

12

S616978

SHAFT

INPUT SHAFT - final drive

1шт.

13

813-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 8.8, Full Thd

4шт.

14

S240356

COVER

- bearing, first intermediate shaft

1шт.

15

S6108

O-RING,4.359" ID x 4.637" OD x 0.139"

- cover

1шт.

16

S240546

SHIM,.127mm Thk

Intermediate shaft bearing (.005) .127mm Thk

1шт.

17

S240547

SHIM,.177mm Thk

Intermediate shaft bearing, (.007") .177mm Thk

1шт.

18

S240548

SHIM,.508mm Thk

Intermediate shaft bearing (.020") .508mm Thk

1шт.

19

A27301

ROLLER BEARING,2" ID x 1.193"

TAPERED ROLLER BEARING - first intermediate shaft

2шт.

20

A26678

BEARING CUP,3.6718" OD x 0.9375"

CUP - bearing, first intermediate shaft

2шт.

21

S617089

SHAFT

- gear, first intermediate

1шт.

22

S616857

GEAR

- first intermediate

1шт.

23

A31227

SNAP RING,#275, Ext

RING, Snap, , gear #275, Ext

1шт.

24

813-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 8.8, Full Thd

12шт.

25

S515460

COVER

- bearing, second intermediate shaft

1шт.

26

S515459

COVER

- bearing, output shaft

1шт.

27

A40052

O-RING,0.139" Thk x 6.48" ID, -260, Cl 5, 75 Duro

- bearing covers

2шт.

28

S240540

SHIM,.127mm Thk

Bearing covers (.005") .127mm Thk

1шт.

29

S240541

SHIM,.177mm Thk

Bearing covers (.007") .177mm Thk

1шт.

30

S240542

SHIM,.508mm Thk

Bearing covers, (.020") .508mm Thk

1шт.

31

S118455

ROLLER BEARING,69.85 mm ID x 41.275 mm

TAPERED ROLLER BEARING - second intermediate shaft

2шт.

32

S118456

BEARING CUP,146.05 mm OD x 31.75 mm

CUP - bearing, second intermediate shaft

2шт.

33

S616979

SHAFT

- gear, second intermediate

1шт.

34

S616858

GEAR

- second intermediate

1шт.

35

S118688

SNAP RING,#437, Ext

RING, Snap, , gear #437, Ext

1шт.

36

S118459

ROLLER BEARING,69.85 mm ID x 46.672 mm

TAPERED ROLLER BEARING - output shaft, cover end

1шт.

37

A34343

BEARING CUP

CUP - bearing, output shaft, cover end

1шт.

38

S240592

LOCK NUT

LOCKNUT - special, adjustable, output gear

1шт.

39

S240590

SPACER

-, Serial Range: locknut-gear

1шт.

40

S617046

GEAR

- output

1шт.

41

S240589

SPACER

-, Serial Range: gear-bearing

1шт.

42

S118457

ROLLER BEARING,120.65 mm ID x 47.625 mm

TAPERED ROLLER BEARING - output shaft, seal end

1шт.

43

S118458

BEARING, CUP,206.375 mm OD x 34.925 mm

CUP - bearing, output shaft, seal end

1шт.

44

S240602

SPACER

- output shaft

1шт.

45

814-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 8.8

- hex head, 12 mm - 1.75 x 55 mm (8.8)

6шт.

46

S617019

COVER

RETAINER - seal

1шт.

Must use Loctite compound.

1шт.

47

S240591

OIL SEAL

OIL SEAL - output shaft

1шт.

48

S617018

SHAFT

OUTPUT SHAFT AND FLANGE - drive sprocket

1шт.

49

814-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

- hex head, 12 mm - 1.75 x 40 mm (8.8)

24шт.

50

814-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8

- hex head, 12 mm - 1.75 x 60 mm (8.8)

2шт.

51

S956521

COVER

- gear, final drive housing

1шт.

Must use Loctite compound.

1шт.

52

221-845

PLUG,Hex Soc, 3/4"-14

- hex socket head, 3/4" NPT

4шт.

B17423

LOCTITE

- red, 10cc bottle. Part number S956526 must use Loctite seal compound.

1шт.
