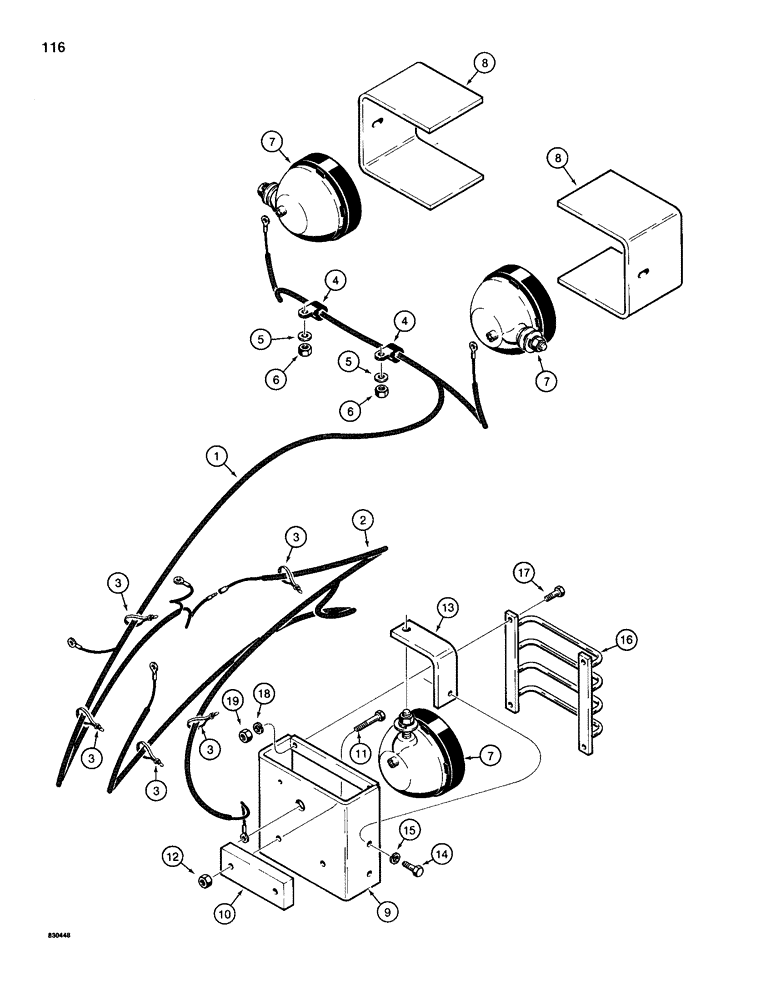

Запчасти Case 1280B (116) - ELECTRICAL CIRCUIT FOR WORK LAMPS (04) - ELECTRICAL SYSTEMS

1

S241503

HARNESS

- work lamps, from instrument panel

1шт.

2

S241502

HARNESS

- front work lamp

1шт.

3

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

4

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- harness, on boom

2шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

6

S118773

LOCK NUT

NUT - hex, self-locking, 10 mm - 1.5

2шт.

7

D51222

LIGHT ASSY.

LAMP - work, parts list Figure 118

3шт.

8

S241391

BRACKET

GUARD - boom work lamps, Serial Range: welds-boom

2шт.

9

S212579

GUARD

HOUSING - front work lamp

1шт.

10

S86493

SPACER

- guard

1шт.

11

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- hex head, 1/2" - 13 NC x 2-1/2"

2шт.

12

131-492

NUT,1/2"-13

NUT - hex, self-locking, 1/2" - 13 NC

2шт.

13

S222287

BRACKET

- front work lamp

1шт.

14

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

16

S212578

PROTECTOR

GUARD - front work lamp

1шт.

17

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

18

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

19

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.
