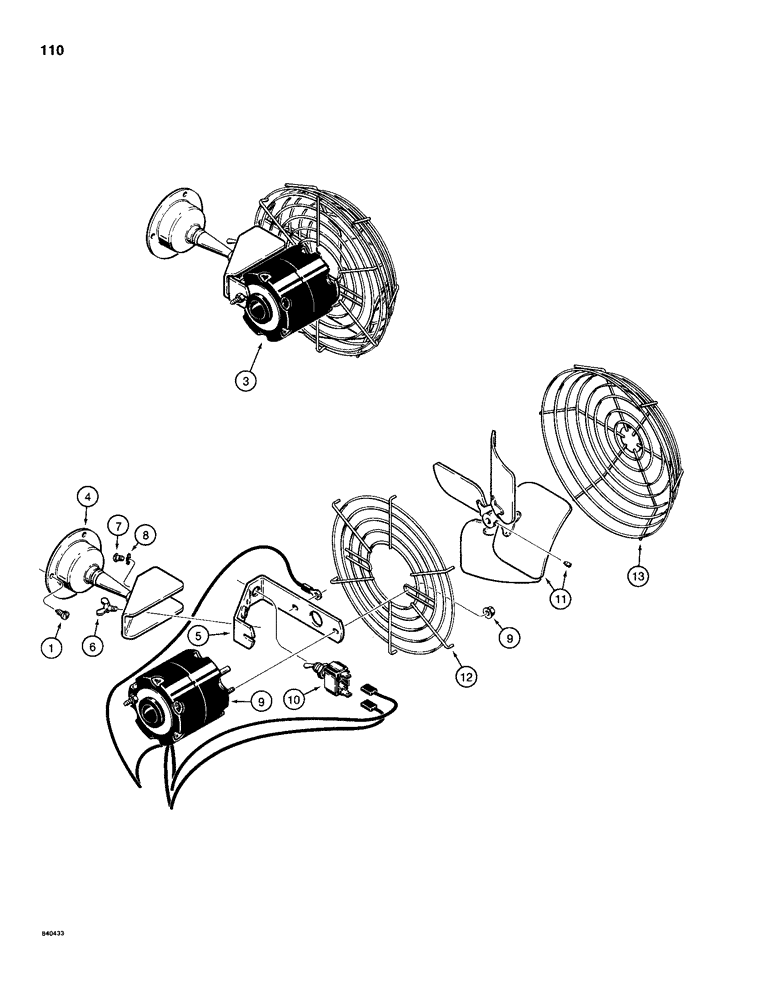

Запчасти Case 1280B (110) - DEFROSTER FAN (04) - ELECTRICAL SYSTEMS

1

187-1012

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"

SCREW - self-tapping

3шт.

3

S222133

FAN

ASSEMBLY - defroster, 24 volt, Includes: Ref. 4 - 13

1шт.

4

S63447

BRACKET

BASE - defroster fan

1шт.

5

S111275

BRACKET

-, Serial Range: motor-base

1шт.

6

N9045

SCREW,#12 - 24 x 3/8"

- wing, No. 12 - 24 NC

1шт.

7

182-164

SCREW,Sl Pan Hd, #12 - 24 x 1/2"

- machine, No. 12 - 24 NC x 1/2"

1шт.

8

193-7

LOCK WASHER,Ext Tooth, #12

WASHER, LOCK, Ext Tooth, #12

1шт.

9

S111274

MOTOR

- defroster fan, 24 volt

1шт.

10

S111270

SWITCH

- fan motor

1шт.

11

S111271

FAN

BLADE - fan

1шт.

12

S111273

GUARD

- fan blade, rear

1шт.

13

S111272

GUARD

- fan blade, front

1шт.
