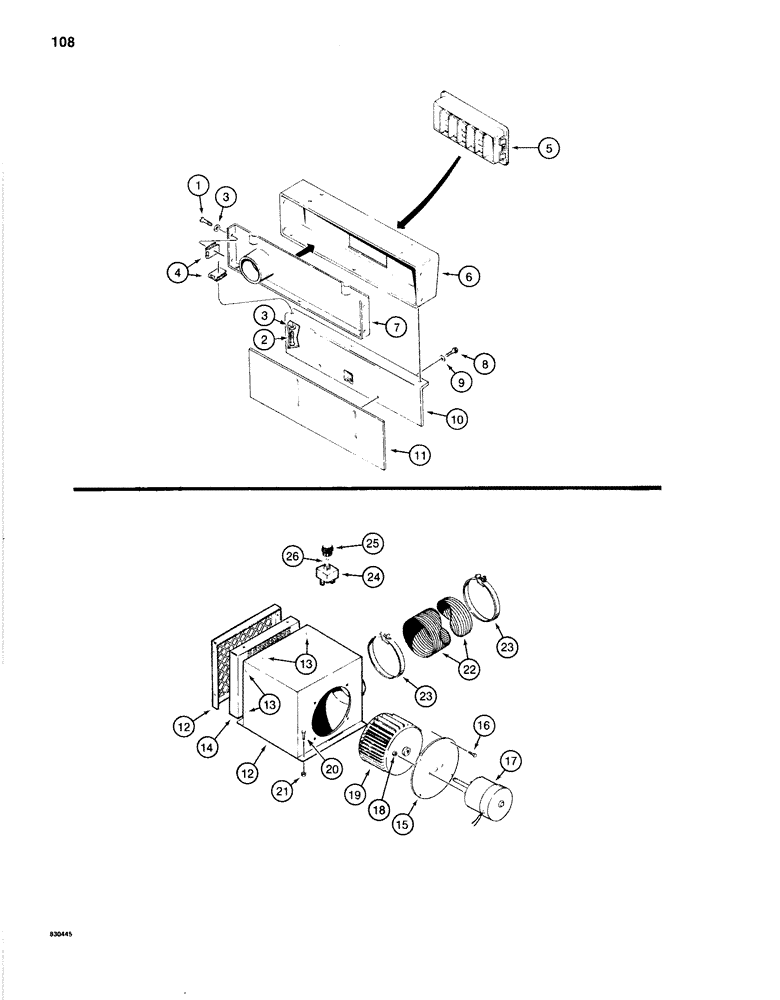

Запчасти Case 1280B (108) - HEATER SHROUDING AND HEATER (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
179-156
SCREW,Cross Oval Hd, #10 - 24 x 3/4"
MACHINE SCREW - No. 10 - 24 NC x 3/4", Phillips oval head, black, heater shrouding
4шт.
2
179-162
SCREW,Cross Oval Hd, #10 - 24 x 1"
MACHINE SCREW - No. 10 - 24 NC x 1", Phillips oval head, black, heater shrouding
3шт.
3
F64315
WASHER
- No 10, special trim, heater shrouding
7шт.
4
S117167
CLIP
NUT - U-type, No. 10 - 24 NC, heater shrouding
7шт.
5
F89948
GUARD
LOUVER - heater shroud
1шт.
6
S618291
PANEL
SHROUD - heater, outer
1шт.
7
S618292
PANEL
SHROUD - heater, inner
1шт.
8
113-3
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
Heater shrouding Hex, 1/4"-20 x 3/4", G5, Full Thd
2шт.
9
195-2251
WASHER,.281" x 1" x .109"
- flat, 1/4", plated, heater shrouding
2шт.
10
S516015
PANEL
- seat, upper, heater shrouding
1шт.
11
S516013
PANEL
- seat, lower, heater shrouding
1шт.
S239156
HEATER
ASSEMBLY - excavator cab, Includes: Ref. 12 - 26
1шт.
12
S118417
HOUSING
- heater
1шт.
13
187-1088
SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"
SCREW - self-tapping, No 10 - 24 NC x 1/2", heater
10шт.
14
S118427
CORE
- heater
1шт.
15
S118422
PLATE
- motor mounting, heater
1шт.
16
193-515
SCREW,SEMS, But Hd, 1/4"-20 x 1/2"
BOLT - hex head, 1/4" - 20 NC x 1/2", plated, heater
4шт.
17
S118418
MOTOR, ELECTRIC
MOTOR - blower wheel, 24 volt, heater
1шт.
18
129-17
NUT,Hex, #10 - 24
NUT - hex, No. 10 - 24 NC, plated, heater
2шт.
19
S118423
BLOWER
FAN - blower, heater
1шт.
20
113-3
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
Heater Hex, 1/4"-20 x 3/4", G5, Full Thd
4шт.
21
86625061
NUT,1/4"-20, GB
NUT - hex, self-locking, 1/4" - 20 NC, heater
4шт.
22
S118428
DUCT
-, Serial Range: heater-shroud
1шт.
23
214-267
HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm
CLAMP - heater duct to heater and shroud
2шт.
24
S118430
SWITCH
- heater, rotary
1шт.
25
S118431
KNOB
- heater switch
1шт.
26
129-164
JAM NUT,Hex, 7/16" - 20, Gr 5
Jam, 7/16"- 20, G5, Heater
2шт.
Выбрано товаров: 27
