Запчасти Case 1280B (106) - HEATER AND HOSES (04) - ELECTRICAL SYSTEMS

1

S239156

HEATER

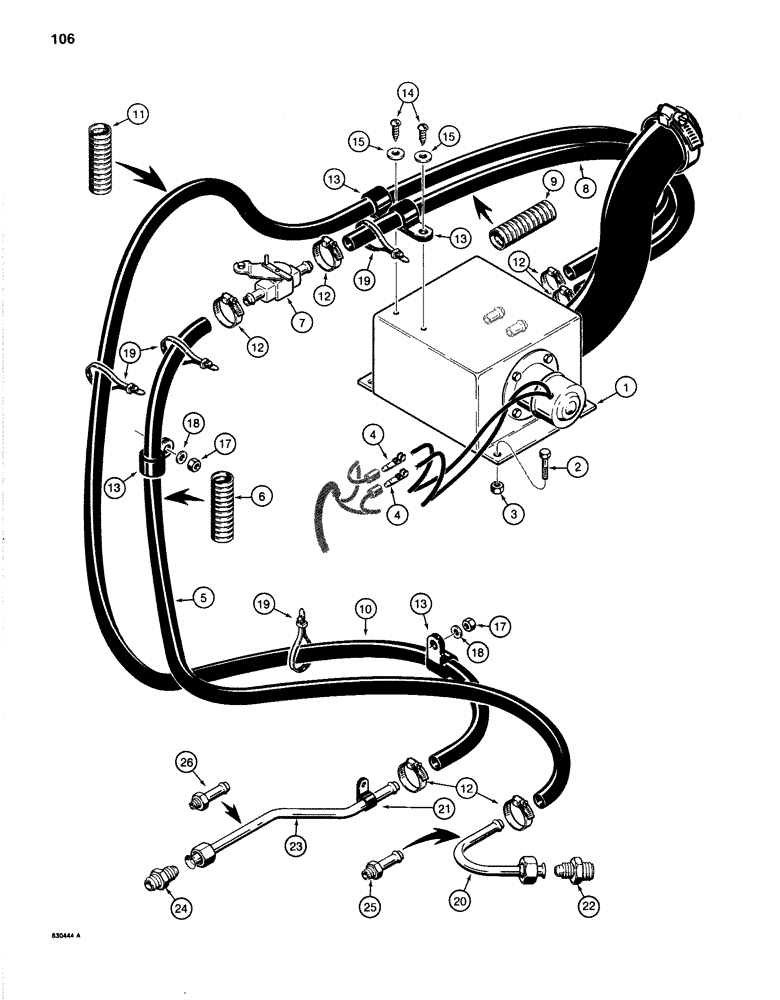

ASSEMBLY - parts list Figure 108

1шт.

2

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

3

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

4шт.

4

223-191

TERMINAL CONNECTOR,14 - 16

Electrical, female

2шт.

5

REF

INSTRUCTION

HOSE - engine to shutoff valve, used with Case engine, 5/8" (16 mm) ID x 110" (2794 mm) long, cut from A42610, see below

1шт.

5

REF

INSTRUCTION

HOSE - engine to shutoff valve, used with Detroit Diesel engine, 5/8" (16 mm) ID x 150" (3810 mm) long, cut from A42610, see below

1шт.

6

REF

INSTRUCTION

SLEEVE - hose, 1" (25 mm) ID x 107" (2718 mm) long, used with Case engine only, cut from S119717, see below

1шт.

7

S223937

VALVE

Heater shutoff

1шт.

8

REF

INSTRUCTION

HOSE - shutoff valve to heater, 5/8" (16 mm) ID x 24" (610 mm) long, cut from A42610, see below

1шт.

9

REF

INSTRUCTION

SLEEVE - hose, 1" (25 mm) ID x 22" (560 mm) long, cut from S119717, see below

1шт.

10

REF

INSTRUCTION

HOSE - heater outlet to engine, 5/8" (16 mm) ID x 150" (3810 mm) long, cut from A42610, see below

1шт.

11

REF

INSTRUCTION

SLEEVE - hose, 1" (25 mm) ID x 147" (3733 mm) long, cut from S119717, see below

1-2шт.

12

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

6шт.

13

S15544

CLAMP,1 5/16", Insul, 3/8" Bolt

Hoses at top of heater

4-6шт.

14

187-331

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/4"

2шт.

15

195-513

WASHER,#10

2шт.

17

131-52

NUT,3/8"-16, GC

1шт.

18

195-525

WASHER,3/8", SAE

If used

1шт.

19

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP Tie, 15 inch, nylon

1шт.

20

S232219

TUBE,0.62" OD x 3.06, 4.68" L

SPARE PART Engine outlet, Case engine only, special parts

1шт.

21

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

S231777 tube to engine, special parts used with Case

1шт.

22

218-1026

HYD CONNECTOR,7/8"-14, 37 Degree x 3/8"-18, NPTF

ADAPTER - straight, special parts used with Case engine

1шт.

23

S231777

TUBE,0.62" OD x 3.85, 34.05" L

SPARE PART Return to engine, special parts used with Case

1шт.

24

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight, special parts used with Case engine

1шт.

25

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

STEM - straight, engine outlet, special parts used with Detroit Diesel

1шт.

26

217-376

FITTING,5/8" Hose Barb x 3/8" Male NPTF

STEM - straight, return to engine, special parts used with Detroit Diesel

1шт.

A42610

LARGE HOSE

HOSE,LARGE Bulk roll, 5/8" (16 mm) ID x 50' (1524 cm) long

1шт.

S119717

CONDUIT

SLEEVE - bulk roll, 1" (25 mm) ID x 192" (4877 mm) long

1шт.
