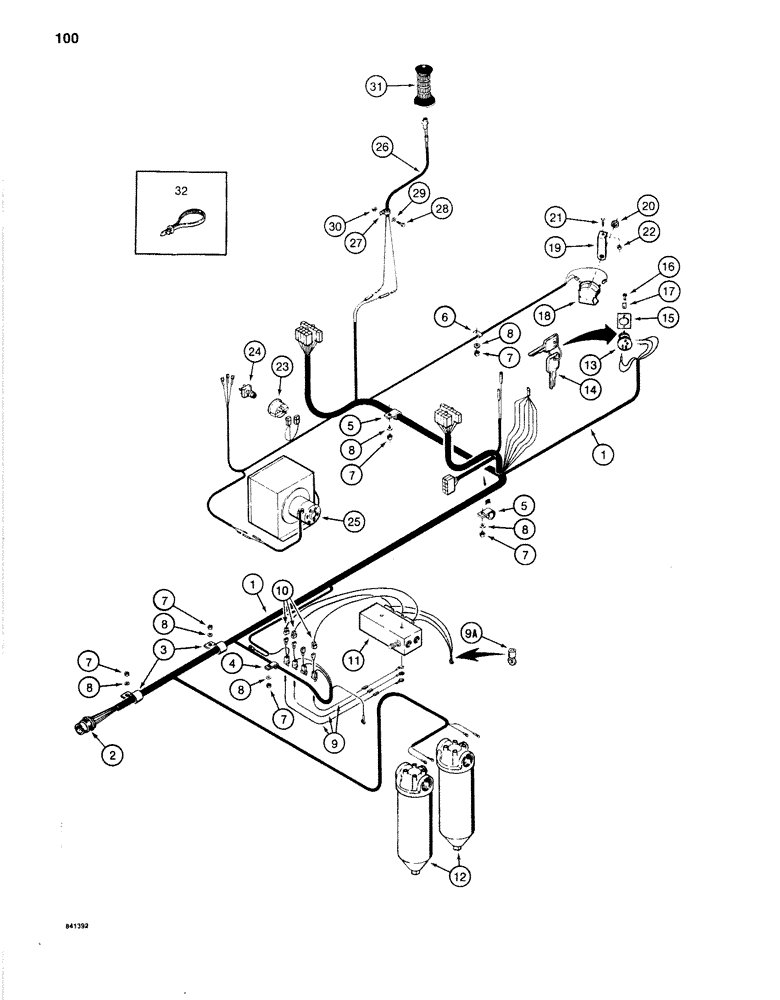

Запчасти Case 1280B (100) - ELECTRICAL HARNESS - CAB AND TURNTABLE (04) - ELECTRICAL SYSTEMS

1

S618338

HARNESS

- turntable, Includes: Ref. 2 and 2A

1шт.

2

S107264

CONNECTION,ELECTRIC

CONNECTOR - electrical, harness

1шт.

2a

S99516

CONTACT

- connector, not shown

8шт.

3

R14668

CLAMP

- harness, rear

2шт.

4

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- wire to solenoid control valve

1шт.

5

T50103

CLAMP

- harness, front

2шт.

6

A61275

CLIP

CLAMP - horn wire

1шт.

7

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

6шт.

8

195-525

WASHER,3/8", SAE

- flat, 3/8"

6шт.

9

S238309

DIODE

WIRE - diode

3шт.

9a

223-56

TERMINAL CONNECTOR,10 - 12

- wires at solenoid control valve

1шт.

10

S117294

ROD, CONNECTING

CONNECTOR - solenoid control valve wires

3шт.

11

REF

INSTRUCTION

SOLENOID CONTROL VALVE - parts list Figure 218

1шт.

12

S616066

FILTER

- hydraulic oil, parts list Figure 232

2шт.

S108413

SWITCH

KEY SWITCH ASSEMBLY - electrical system, Includes: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

KEY SWITCH - electrical system

1шт.

14

R30074

SET

KEYS - switch, set of two keys

1шт.

15

S239946

PLATE

- switch mounting

1шт.

16

179-156

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

MACHINE SCREW - No. 10 - 24 NC x 3/4"

2шт.

17

S117167

CLIP

NUT - U-type, No. 10 - 24 NC

2шт.

18

D77650

HORN

- electrical

1шт.

19

S203190

BRACKET

- horn mounting

1шт.

20

L30866

LOCK NUT

- horn mounting

1шт.

21

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

22

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC, Light duty

1шт.

23

S515551

HOURMETER

- electric

1шт.

24

REF

INSTRUCTION

SWITCH - heater, supplied with heater, parts list Figure 108

1шт.

25

S239156

HEATER

- cab, if used, parts list Figure 108

1шт.

26

S242036

SWITCH

AND WIRE - fast hoist

1шт.

27

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- fast hoist switch wire

1шт.

28

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

29

195-525

WASHER,3/8", SAE

- flat, 3/8"

1шт.

30

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

1шт.

31

S119987

GRIP

- control lever, see Figure 246 for hand lever controls

1шт.

32

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.
