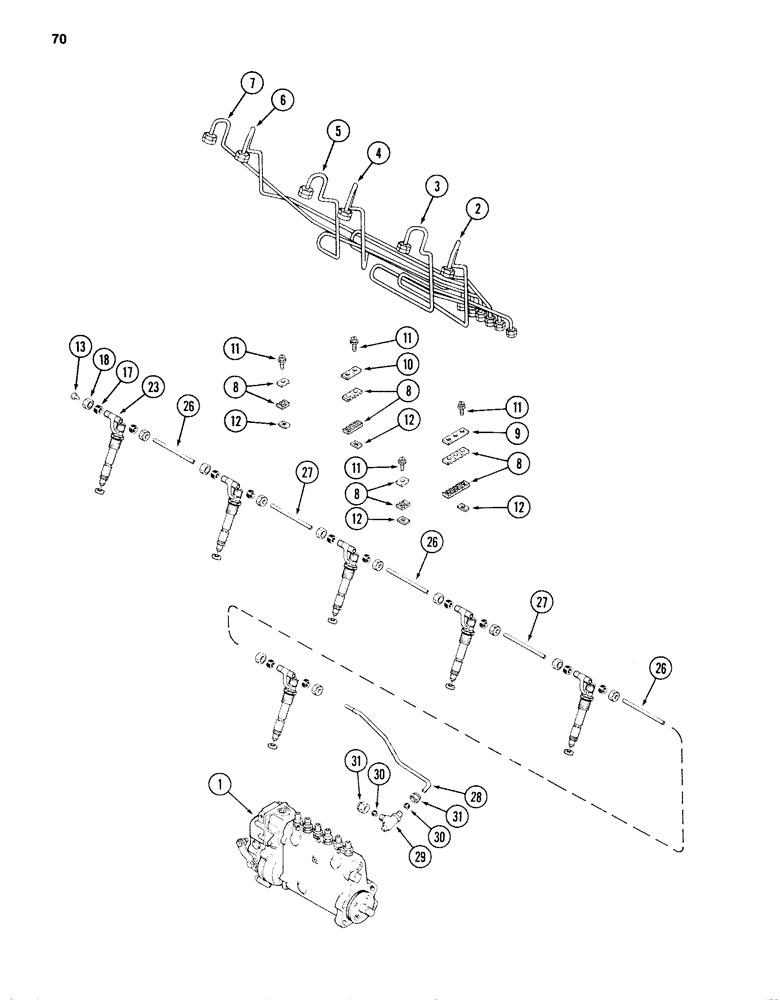

Запчасти Case 1280B (070) - FUEL INJECTION SYSTEM, 504BDT DIESEL ENGINE (03) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection (See Figure 74)

1шт.

2

A156885

TUBE

Fuel injection, No. 1 cylinder

1шт.

3

A156886

TUBE

Fuel injection, No. 2 cylinder

1шт.

4

A156887

TUBE

Fuel injection, No. 3 cylinder

1шт.

5

A156888

TUBE

Fuel injection, No. 4 cylinder

1шт.

6

A156889

TUBE

Fuel injection, No. 5 cylinder

1шт.

7

A156890

PIPE

Fuel injection, No. 6 cylinder

1шт.

8

A58709

BRACKET

Injection, tube

14шт.

9

A58708

PLATE

Injection tube bracket (For 6 lines)

1шт.

10

A58710

PLATE

Injection tube bracket (For 4 lines)

1шт.

11

163-19

SCREW,Sl Hex Wshr Hd, #10 - 24 x 1"

7шт.

12

131-612

SPRING NUT,Flat, #10 - 24, 0.022" Thk

7шт.

13

47-37

RIVET,FH, 3/16" x 7/16"

1шт.

17

222-101

SLEEVE,3/16" Tube

For 3/16 inch (5 mm) tube (replaces 221-101)

12шт.

18

222-111

TUBE NUT,7/16" - 24

For 3/16 inch (5 mm) tube (replaces 221-111)

12шт.

23

REF

INSTRUCTION

NOZZLE ASSEMBLY - fuel injection (See Figures 76 and 78)

6шт.

26

A76642

TUBE

Leak off, 4-11/16 inch (102 mm) long

3шт.

27

A76641

TUBE

Leak off, 5-3/4 inch (146 mm) long

2шт.

28

A153816

TUBE

Leak-off, No. 1, Serial Range: nozzle-valve

1шт.

29

A59097

VALVE

ASSEMBLY - check, leak-off (in injection pump)

1шт.

30

222-102

SLEEVE,1/4" Tube

(6 mm)

2шт.

31

87017024

TUBE NUT,1/2"-24

For 1/4 inch (6 mm) tube

2шт.
