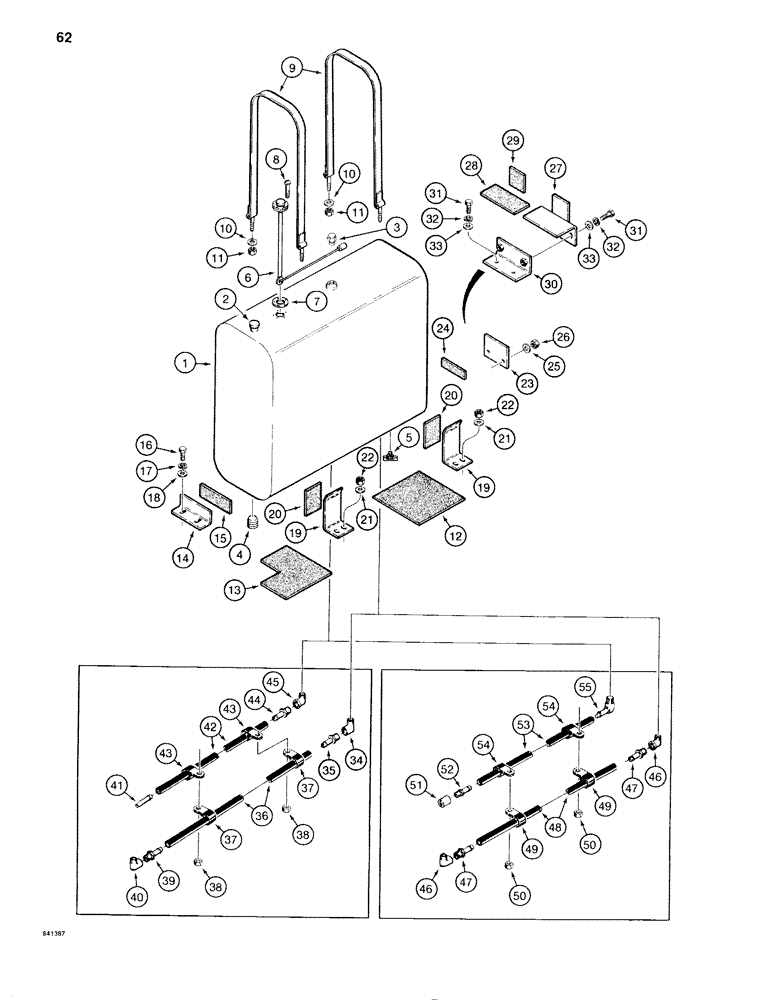

Запчасти Case 1280B (062) - FUEL TANK AND LINES, HIGH CAPACITY FUEL TANKS (03) - FUEL SYSTEM

1

S618760

FUEL TANK

ASSEMBLY - 92 gallon capacity, used with Detroit Diesel engine, Includes: Ref. 2 and 3

1шт.

1

S618759

FUEL TANK

ASSEMBLY - 122 gallon capacity, used with Case engine, Includes: Ref. 2 and 3

1шт.

2

S66921

FILLER CAP

Fuel tank

1шт.

3

S120420

PLUG

Vented, with filter

1шт.

4

221-848

PLUG,Hex Soc, 1 1/2"-11 1/2

Pipe, NPT

1шт.

5

217-103

COCK, DRAIN

VALVE - fuel tank drain

1шт.

6

S241288

GAUGE

ASSEMBLY - fuel level

1шт.

7

S49745

GASKET

GASKET - fuel level gauge

1шт.

8

182-147

SCREW,Sl Pan Hd, #10 - 32 x 3/4"

Machine

5шт.

9

S516877

STRAP

Mounting, fuel, Serial Range: tank-turntable

2шт.

10

S95569

WASHER

Flat, hardened, 1/2"

4шт.

11

131-70

NUT,1/2"-13, GB

4шт.

12

S242596

PAD

Tank bottom, square

1шт.

13

S242597

PAD

Tank bottom, with corner notch

1шт.

14

S242600

ANGLE

BRACKET - tank retainer, end

1шт.

15

S240178

TUBE,1.25" OD

PAD - end retainer bracket

1шт.

16

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

17

192-23

LOCK WASHER,1/2"

2шт.

18

S95569

WASHER

Flat, hardened, 1/2"

2шт.

19

S242601

BRACKET

Tank retainer, side

2шт.

20

S120175

PAD

Side retainer bracket and brackets on turntable

4шт.

21

S95569

WASHER

Flat, hardened, 1/2"

4шт.

22

131-70

NUT,1/2"-13, GB

4шт.

23

S120181

PLATE

Tank retainer, end, used with S618760 Detroit Diesel tank only

1шт.

24

S120176

PAD

End retainer plate

1шт.

25

S95569

WASHER

Flat, hardened, 1/2"

2шт.

26

131-70

NUT,1/2"-13, GB

2шт.

27

S242598

ANGLE

BRACKET - tank retainer, end, used with S618759 Case engine tank only

1шт.

28

S120174

PAD

End retainer bracket

1шт.

29

S120176

PAD

End retainer bracket

1шт.

30

S242602

ANGLE

Mounting, end retainer bracket, used with S618759 Case engine tank only

1шт.

31

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

32

192-23

LOCK WASHER,1/2"

4шт.

33

195-533

WASHER,1/2", SAE

4шт.

34

217-22

ELBOW,90 Degree, 3/8"-18 NPTF, Fem x 3/8"-18 NPTF Male

At tank, fuel lines used with Case engine

1шт.

35

220-7

FITTING

BARB - straight, at tank, fuel lines used with Case engine

1шт.

36

REF

INSTRUCTION

HOSE - engine supply, 116" (2946 mm) long, cut from S 118400, see below, fuel lines used with case

1шт.

37

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

Hose, fuel lines used with Case engine

3шт.

38

131-52

NUT,3/8"-16, GC

Fuel lines used with Case engine

3шт.

39

217-125

FITTING,3/8" Hose Barb x 1/4" Male NPTF

BARB - straight, at engine, fuel lines used with Case

1шт.

40

217-21

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

At engine, fuel lines used with Case

1шт.

41

S66490

TUBE

Engine return, fuel lines used with Case

1шт.

42

S118378

HOSE,0.25" ID BULK, SAE 30R2 Type 3

Engine return, Cut to 116" (2946 mm) long, Fuel lines used with Case

1шт.

43

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

Hose, fuel lines used with Case engine

3шт.

44

220-2

FITTING

BARB - straight, at tank, fuel lines used with Case engine

1шт.

45

217-21

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

At tank, fuel lines used with Case engine

1шт.

46

217-22

ELBOW,90 Degree, 3/8"-18 NPTF, Fem x 3/8"-18 NPTF Male

Engine supply hose, fuel lines used with Detroit diesel

2шт.

47

220-4

FITTING

BARB - straight, engine supply hose, fuel lines used with Detroit diesel

2шт.

48

REF

INSTRUCTION

HOSE - engine supply, 128" (3251 mm) long, cut from S 118466, see below, fuel lines used with detroit diesel

1шт.

49

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

CLAMP - hose, fuel lines used with Detroit diesel engine

3шт.

50

131-52

NUT,3/8"-16, GC

Fuel lines used with Detroit diesel engine

3шт.

51

221-336

COUPLING,Pipe, 1/4" NPT

Engine return line, fuel lines used with Detroit diesel engine

1шт.

52

217-125

FITTING,3/8" Hose Barb x 1/4" Male NPTF

BARB - straight, at engine, fuel lines used with Detroit diesel

1шт.

53

REF

INSTRUCTION

HOSE - engine return, 116" (2946 mm) long, cut from S 118400,^.text0^see below, fuel lines used with Detroit diesel

1шт.

54

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

Hose, fuel lines used with Detroit diesel engine

3шт.

55

220-520

ELBOW,90 Degree, 1/8" NPT x 3/8" Barbed

BARB FITTING - at tank, fuel lines used with Detroit diesel engine

1шт.

S118466

HOSE,0.50" ID x 300.00"

Fuel

1шт.

S118400

HOSE,0.38" ID x 300.00"

Fuel

1шт.
