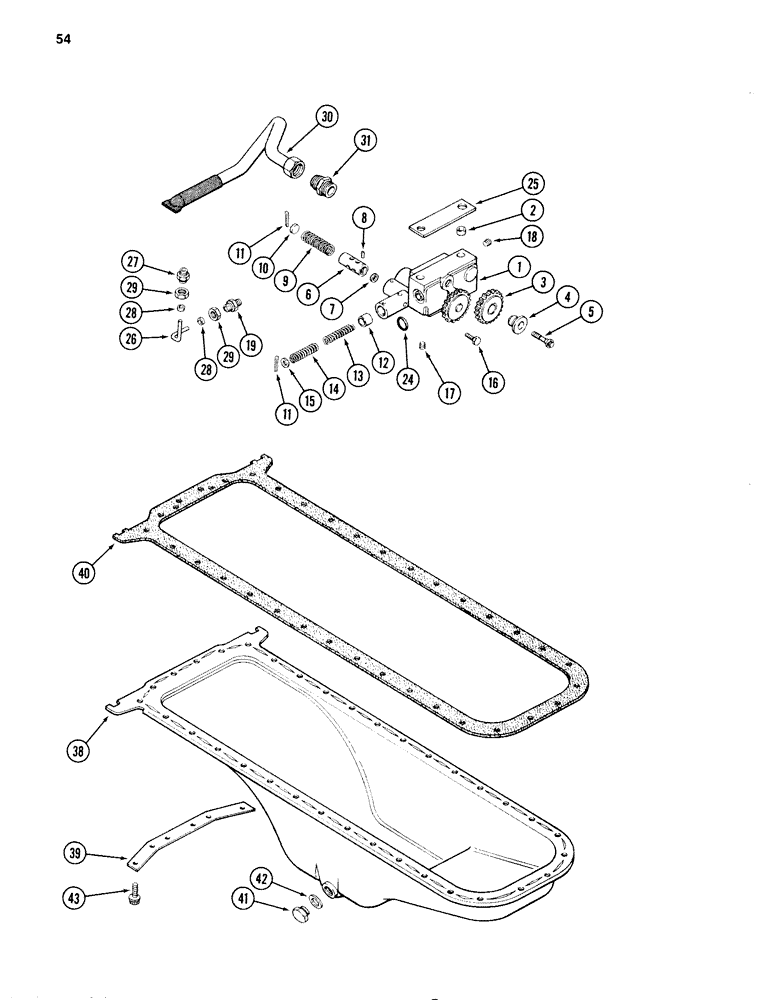

Запчасти Case 1280B (054) - OIL PUMP, 504BDT DIESEL ENGINE (02) - ENGINE

1

A152998

PUMP

ASSEMBLY - oil, Includes: Ref. 2 - 19

1шт.

2

A58915

SLEEVE

- dowel, pump to bearing cap

1шт.

3

NSS

NOT SOLD SEPARAT

GEAR ASSEMBLY - idler (Reference No. A63941)

1шт.

4

A63944

SHAFT

- idler gear

1шт.

5

A63945

12 PT SCREW

BOLT - idler shaft

1шт.

6

A75286

VALVE

ASSEMBLY - relief, Includes: Ref. 7 and 8

1шт.

7

41-1012

PLUG,Cup, 3/4"

(19.05 mm) Cup, 3/4"

1шт.

8

138-2063

PIN,3/32" x 1", Coiled

- spirol, 3/4 x 1 inch

1шт.

9

A63949

SPRING

- relief valve, 2-7/8 inch (53 mm) free length

1шт.

10

41-1016

PLUG,Cup, 1"

- cup, 1 inch (25 mm) diameter

1шт.

11

132-34

COTTER PIN,3/32" x 1 3/4"

PIN, Split (Cotter), 3/32" x 1 3/4"

2шт.

12

A76152

VALVE

- safety, pressure relief

1шт.

13

A76154

SPRING

- inner, 11/16 OD x 3-1/8 inch free length (17 x 79 mm)

1шт.

14

A76153

SPRING

- outer, 7/8 OD x 2-7/8 inch free length (22 x 53 mm)

1шт.

15

195-25

WASHER,3/8"

- 7/16 x 13/16 x 1/16 inch (11 x 21 x 2 mm)

1шт.

16

26-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

4шт.

17

221-850

PLUG,Hex Soc, 1/16"-27

- socket head, 1/16 inch PT

3шт.

18

221-843

PLUG,Hex Soc, 3/8"-18

- socket head, 3/8 inch PT

1шт.

19

222-4022

HYD CONNECTOR,1/2"-24 x 1/8" NPTF

CONNECTOR - tube, 1/4 PT x 1/8 inch

1шт.

24

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- 15/16 x 1-1/8 x 3/32 inch (24 x 29 x 2 mm)

1шт.

25

A58859

SHIM,.005" Thk

Pump to brg. cap (0.127 mm) .005" Thk

1шт.

26

A75290

TUBE

- sensing, oil gallery

1шт.

27

222-4022

HYD CONNECTOR,1/2"-24 x 1/8" NPTF

CONNECTOR - tube, 1/4 PT x 1/8 inch

1шт.

28

222-153

SLEEVE,1/4" Tube

2шт.

29

87017024

TUBE NUT,1/2"-24

NUT - tube, 1/4 inch

2шт.

30

A142503

SCREEN

TUBE ASSEMBLY - oil suction (includes screen)

1шт.

31

A142004

CONNECTOR, ELEC

CONNECTOR - suction tube

1шт.

38

A148755

PAN, ENGINE OIL

PAN - oil

1шт.

39

A65999

STRAP

- reinforcement

1шт.

40

NSS

NOT SOLD SEPARAT

GASKET - pan to block (See Figure 056)

1шт.

41

A34826

PLUG,7/8" - 18 ORB

- drain

1шт.

42

A27968

RING

- drain plug

1шт.

43

193-553

SCREW,SEMS, Hex Hd, 3/8"-16 x 7/8", G5

BOLT - hex, sems, 3/8 NC x 7/8 inch

34шт.
