Запчасти Case 1280B (050) - FLYWHEEL HOUSING, 504BDT DIESEL ENGINE (02) - ENGINE

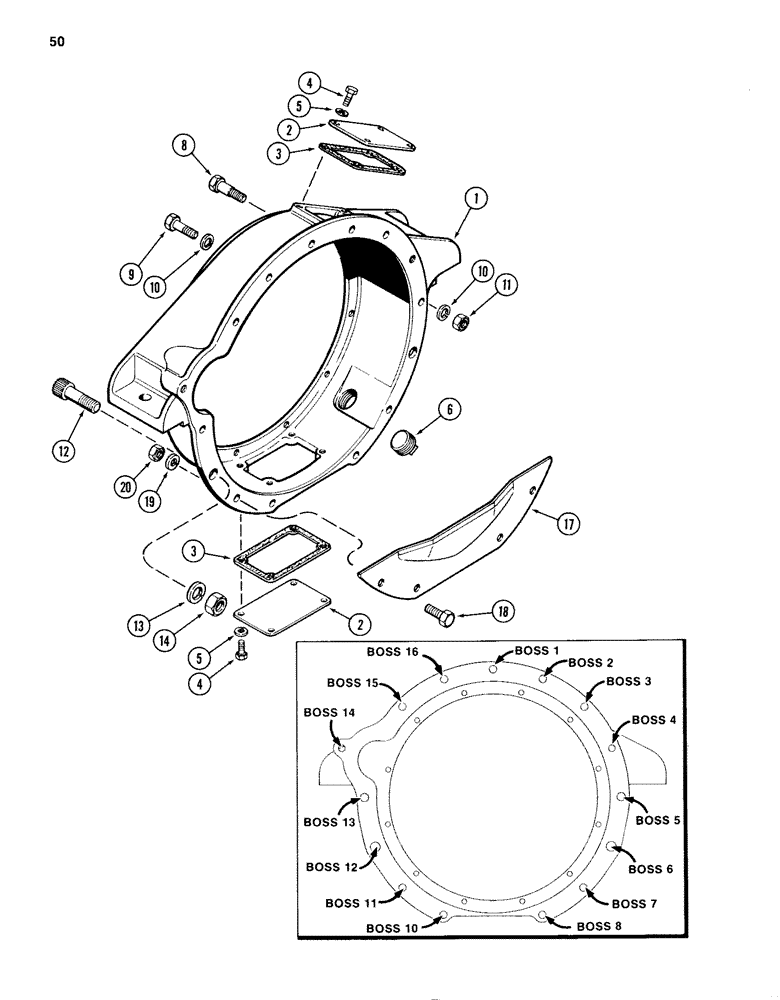

Схема запчастей Case 1280B - (050) - FLYWHEEL HOUSING, 504BDT DIESEL ENGINE (02) - ENGINE

Артикул

Название

Примечание

Количество

1

153190

HOUSING ASSEMBLY - flywheel, Includes: Ref. 2 - 6

1шт.

2

A22584

COVER

PLATE - cover

2шт.

3

A22585

GASKET

- cover plate

2шт.

4

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

8шт.

5

92-5

LOCK WASHER,5/16"

8шт.

6

221-17

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

PLUG - pipe, square head, 1-1/4 inch

1шт.

8

A149765

STEP BOLT

BOLT - dowel, hex, special, 1/2 NC x 2-3/16 inch (Boss 13)

1шт.

8

A149764

STEP BOLT

BOLT - dowel, hex special, 1/2 NC x 3 inch (Boss 5)

1шт.

9

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

(Boss 1, 2 and 16) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

3шт.

9

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex, 1/2 NC x 1-3/4 inch (Boss 14)

1шт.

9

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch (Boss 3 and 15)

2шт.

10

92-8

LOCK WASHER,1/2"

8шт.

11

25-108

NUT,1/2"-13, G5

- hex, 1/2 inch NC

4шт.

12

166-138

12 PT SCREW,Flg, 3/4" - 10 x 3", Gr 8

BOLT - socket head, 3/4 NC x 3 inch (Grade 8) (Boss 6 and 12)

2шт.

13

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

14

129-137

NUT,3/4"-10, G5

2шт.

17

A58931

GUARD

SHIELD - dust, flywheel

1шт.

18

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

(Boss 7, 8, 10 and 11) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

19

92-8

LOCK WASHER,1/2"

4шт.

20

25-108

NUT,1/2"-13, G5

- hex, 1/2 inch NC

4шт.

Выбрано товаров: 20
