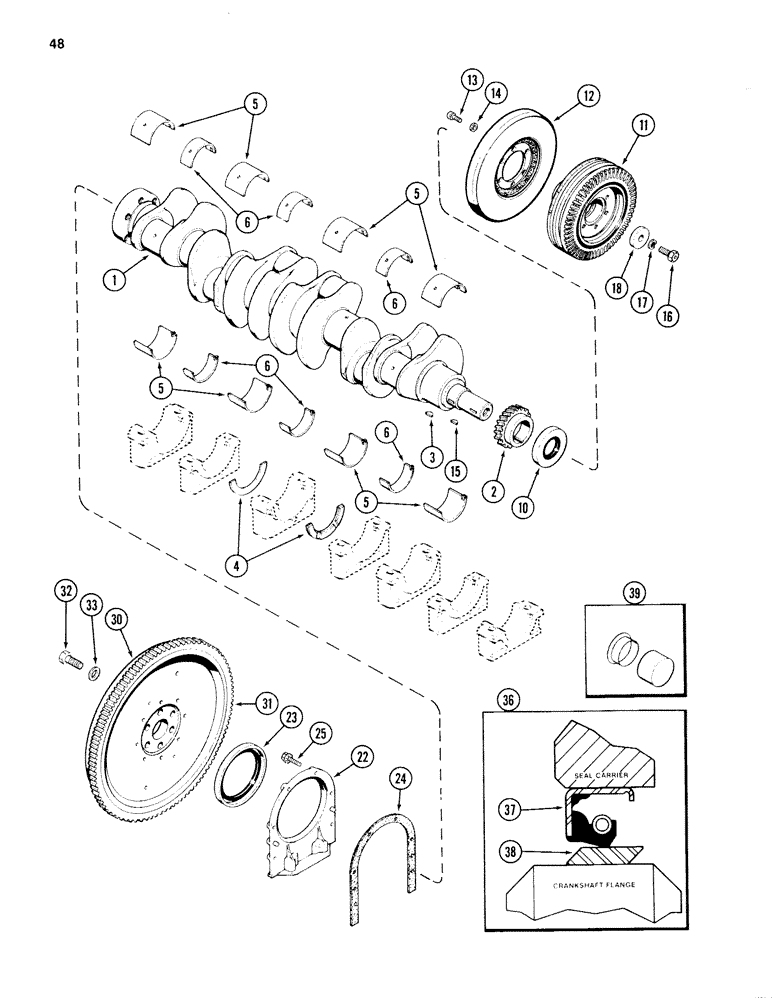

Запчасти Case 1280B (048) - CRANKSHAFT AND FLYWHEEL (02) - ENGINE

1

A77270

CRANKSHAFT

ASSEMBLY, Includes: Ref. 2 and 3

1шт.

2

A66404

GEAR

- timing

1шт.

3

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

1шт.

4

A58565

WASHER

- thrust, standard 0.156 inch (3.9 mm)

2шт.

4

A42447

WASHER

- thrust, oversize 0.162 inch (4.07 mm)

2шт.

5

A43090

BEARING LINER

LINER - wide bearing, standard

4шт.

5

A43124

LINING

LINER - wide bearing, 0.002 inch (0.0508 mm) undersize

4шт.

5

A43125

CRANKSHAFT BEARING

LINER - wide bearing, 0.010 inch (0.254 mm) undersize

4шт.

5

A43126

LINING

LINER - wide bearing, 0.020 inch (0.508 mm) undersize

4шт.

5

A43127

LINING

LINER - wide bearing, 0.030 inch (0.767 mm) undersize

4шт.

6

A43089

BEARING LINER

LINER - narrow bearing, standard

3шт.

6

A43120

LINING

LINER - narrow bearing, 0.002 inch (0.0508 mm) undersize

3шт.

6

A43121

SET OF CONN ROD BRGS STD

LINER - narrow bearing, 0.010 inch (0.254 mm) undersize

3шт.

6

A43122

LINING

LINER - narrow bearing, 0.020 inch (0.508 mm) undersize

3шт.

6

A43123

SET OF CONN ROD BRGS STD

LINER - narrow bearing, 0.030 inch (0.762 mm) undersize

3шт.

10

A157044

OIL SEAL,63.78mm ID x 92.2mm OD x 9.91mm Thk

- oil, front

1шт.

11

A166050

PULLEY

- belt drive

1шт.

12

A157010

HITCH DAMPER

DAMPER - pulley

1шт.

13

26-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

6шт.

14

A50820

WASHER

- hardened, 25/64 x 3/4 x 7/64 inch (10 x 19 x 3 mm)

6шт.

15

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

1шт.

16

114-613

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

- pulley, hex, 5/8 NF x 1-1/2 inch

1шт.

17

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

18

A156428

WASHER

- retainer, 21/32 x 2-1/8 x 23/64 inch (17 x 54 x 9 mm)

1шт.

22

A57457

RETAINER

- rear oil seal

1шт.

23

A62050

OIL SEAL

- oil, rear (See Ref 36)

1шт.

24

A32830

GASKET

-, Serial Range: retainer-block

1шт.

25

193-554

SCREW,SEMS, Hex Hd, 3/8"-16 x 1 1/4", G5

BOLT - hex, 3/8 NC x 1-1/4 inch

6шт.

30

A58683

FLYWHEEL

ASSEMBLY, Includes: Ref. 31

1шт.

31

A27920

GEAR

- ring, 137 teeth

1шт.

32

28-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 8

- hex, 5/8 NF x 1-1/2 inch (Grade 8)

6шт.

33

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - flywheel bolt, hardened, 21/32 x 1 x 1/8 inch (17 x 25 x 3 mm)

6шт.

36

A43194

KIT

- wear, rear oil seal, Includes: Ref. 37 and 38

1шт.

37

NSS

NOT SOLD SEPARAT

SEAL - oil (Reference No. A65871)

1шт.

38

NSS

NOT SOLD SEPARAT

SLEEVE - wear (Reference No. A65872)

1шт.

39

A154684

SLEEVE

KIT - wear, pulley sleeve

1шт.
