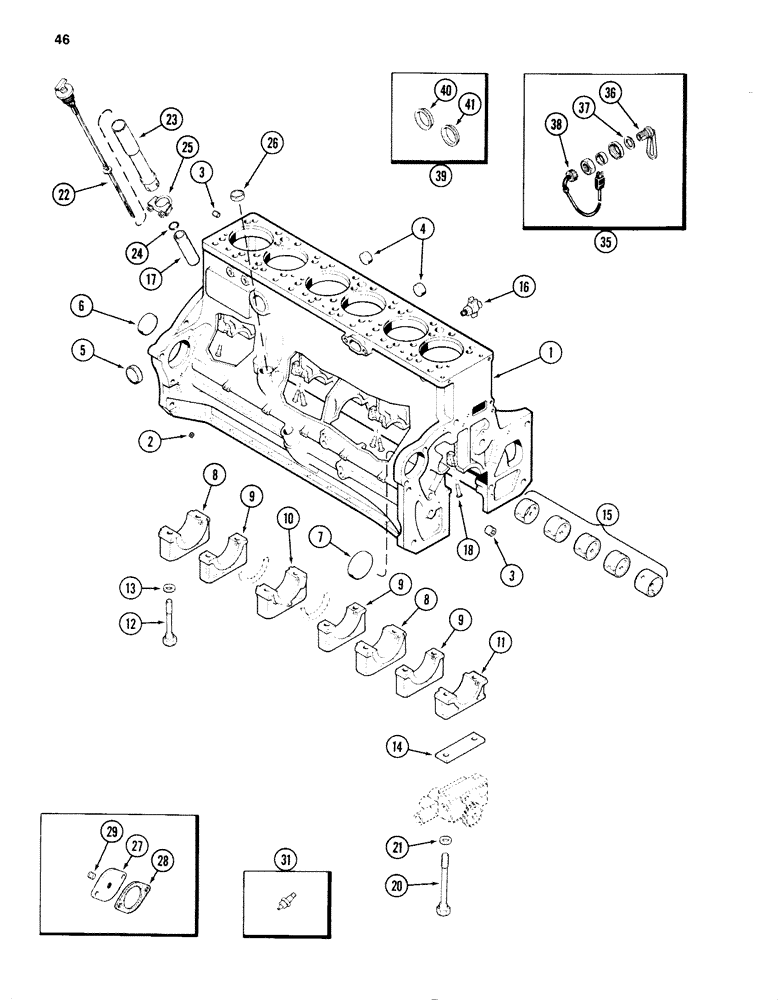

Запчасти Case 1280B (046) - CYLINDER BLOCK, 504BDT DIESEL ENGINE (02) - ENGINE

A166095

CRANKCASE

BLOCK ASSEMBLY - short (includes pistons, rings, connecting rods, camshaft, crankshaft and timing gears), Includes: Ref. 1 - 18

1шт.

1

A44077

CRANKCASE

BLOCK ASSEMBLY - stripped (Casting No. A66527, Includes: Ref. 2 - 18

1шт.

2

221-1849

PLUG

- pipe, hex socket head, 1/8 inch PT

5шт.

3

221-843

PLUG,Hex Soc, 3/8"-18

- pipe, hex socket head, 3/8 inch PT

4шт.

4

A58568

PLUG,Cup, 1 3/8", Stainless

- cup, 1-3/8 inch (35 mm) diameter

3шт.

5

58569

PLUG - cup, 2 inch (51 mm) diameter

1шт.

6

A24361

PLUG

- cup, 2-3/8 inch (60 mm) diameter

1шт.

8

A154398

BEARING CAP

CAP - main bearing, wide

2шт.

9

A154397

BEARING CAP

CAP - main bearing, narrow

3шт.

10

A154395

CAP

- main bearing, thrust

1шт.

11

A154396

BEARING CAP

CAP - main bearing, front

1шт.

12

A66948

STEP BOLT

BOLT - bearing cap, hex, special, 5/8 NC x 5 inch

12шт.

13

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - cap bolt, 5/8 x 1 x 1/8 inch (16 x 25 x 3 mm)

12шт.

14

A58859

SHIM,.005" Thk

Oil pump (0.127 mm) .005" Thk

1шт.

15

REF

INSTRUCTION

BUSHING - camshaft (See Figure 44)

5шт.

16

A23656

COCK, DRAIN

VALVE - drain

1шт.

17

A34540

TUBE

- oil filter and dipstick

1шт.

18

A63903

NOZZLE CAP

NOZZLE - piston cooling

6шт.

20

A66949

STEP BOLT

BOLT - oil pump and bearing cap, hex, special, 5/8 NC x 7-1/4 inch

2шт.

21

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - pump bolt, 5/8 x 1 x 1/8 inch (16 x 25 x 3 mm)

2шт.

22

A154243

DIPSTICK

- oil level

1шт.

23

A153835

TUBE

- extension, oil filler

1шт.

24

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

- 1-1/8 x 1-3/8 x 1/8 inch (29 x 35 x 3 mm)

1шт.

25

L47766

CLAMP

- oil filler tube

1шт.

26

41-1022

PLUG,Cup, 1 3/8"

- cup, 1-3/8 inch (35 mm) diameter

1шт.

27

A58891

COVER

- pump opening

1шт.

28

A58617

GASKET

- cover

1шт.

29

221-843

PLUG,Hex Soc, 3/8"-18

- pipe, hex socket head, 3/8 inch PT

1шт.

31

A66737

SWITCH, PRESSURE

SWITCH - engine oil pressure

1шт.

35

A155436

RESISTOR

HEATER ASSEMBLY - block, Includes: Ref. 36 - 38

1шт.

36

NSS

NOT SOLD SEPARAT

ELEMENT - heater (Reference No. A155435), block heater

1шт.

37

A45114

GASKET

- element, block heater

1шт.

38

A44813

CABLE EXTENSION

CORD ASSEMBLY - 12 inch (305 mm), block heater

1шт.

39

A44006

SLEEVE

KIT - block heater, Includes: Ref. 40 and 41

1шт.

40

NSS

NOT SOLD SEPARAT

SLEEVE - use in block with 2-1/16 inch (52 mm) diameter hole (Reference No. A44007), block heater

1шт.

41

NSS

NOT SOLD SEPARAT

SLEEVE - use in block with 2-1/8 inch (54 mm) diameter hole (Reference No. A44008), block heater

1шт.
