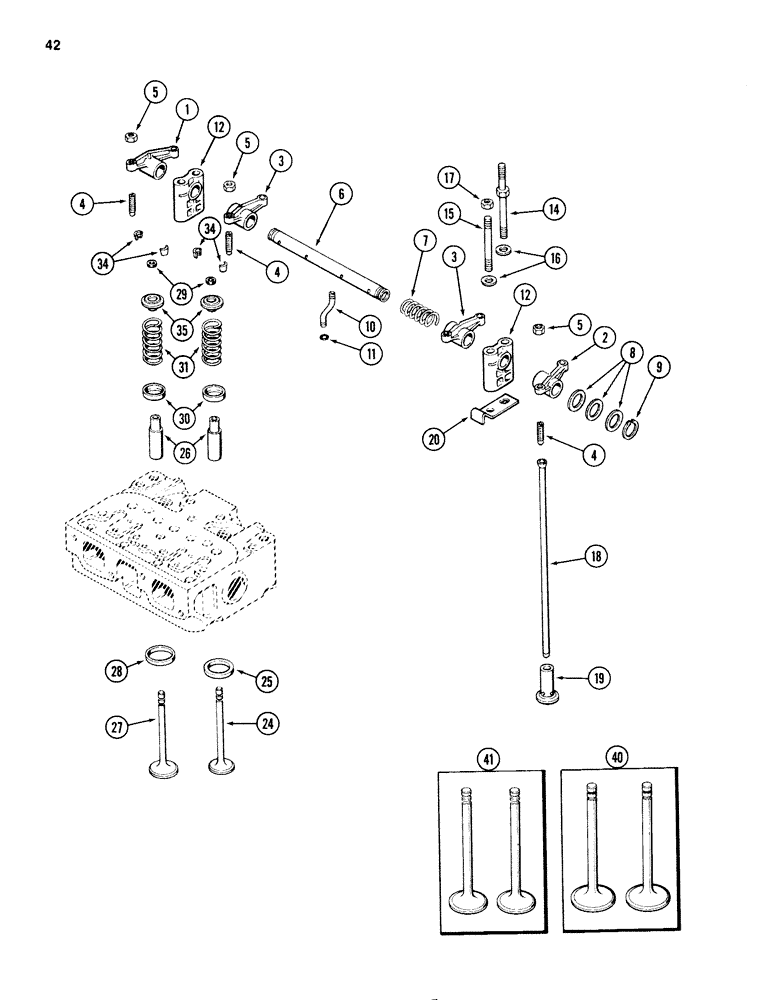

Запчасти Case 1280B (042) - VALVE MECHANISM, 504BDT DIESEL ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A148137
ROCKER ARM
ARM ASSEMBLY - rocker, exhaust valve (first, third and fifth cylinder) (includes Ref 4 and 5)
3шт.
2
A148138
ARM
ASSEMBLY - rocker, exhaust valve (second, fourth and sixth cylinders) (includes Ref 4 and 5)
3шт.
3
A148136
ARM
ASSEMBLY - rocker, intake valve, Includes: Ref. 4 and 5
6шт.
4
A21105
ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"
SCREW - adjusting, rocker arm
1шт.
5
25-116
NUT,Hex, 3/8"-24, G5
- hex, 3/8 inch NF
1шт.
6
A150545
SHAFT
- rocker arm
3шт.
7
A27877
SPRING
- rocker shaft
3шт.
8
A27878
WASHER
- thrust, 7/8 x 1-5/16 x 1/32 inch (22 x 33 x 1 mm)
1шт.
9
B18206
SNAP RING,#87, Ext
RING, Snap, , rocker shaft #87, Ext
6шт.
10
A58657
TUBE
- oil, rocker shaft lube
3шт.
11
A27880
O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro
- oil tube, 3/16 x 5/16 x 1/16 inch (5 x 8 x 2 mm)
3шт.
12
A61128
BRACKET
- rocker shaft
6шт.
14
A67121
STUD
- bracket and head cover
6шт.
15
A58659
STUD
- bracket, 7/16 NC x 4-5/16 inch
6шт.
16
195-29
WASHER,7/16"
- 1/2 x 15/16 x 1/16 inch (13 x 24 x 2 mm)
12шт.
17
25-107
NUT,7/16"-14, G5
- hex, 7/16 inch NC
6шт.
18
A157328
ROD
- push
12шт.
19
A20865
TAPPET
LIFTER - push rod, standard
12шт.
19
A21857
TAPPET
LIFTER - push rod, oversize 0.010 inch (0.254 mm)
12шт.
20
A157197
STRAP
- rocker shaft bracket
6шт.
24
NSS
NOT SOLD SEPARAT
VALVE - exhaust (Order Ref 40) (Reference No. A58627)
6шт.
25
A66192
INSERT
- exhaust valve seat
6шт.
26
A41783
GUIDE
- valve stem (Set of 2)
6шт.
27
NSS
NOT SOLD SEPARAT
VALVE - intake (Order Ref 41) (Reference No. A66193)
6шт.
28
A66191
INSERT
- intake valve seat
6шт.
29
A58628
SEAL,8mm ID x 13.77mm OD x 2.16mm Thk
- valve stem
12шт.
30
A66328
SEAT
- valve spring
12шт.
31
A66444
SPRING
- valve
12шт.
34
A27872
LOCK
- valve spring
24шт.
35
A66336
ROTATOR
- valve, intake and exhaust
12шт.
40
A41753
VALVE
KIT - exhaust (Set of 2)
3шт.
41
A44575
VALVE
KIT - intake (Set of 2)
3шт.
Выбрано товаров: 32
