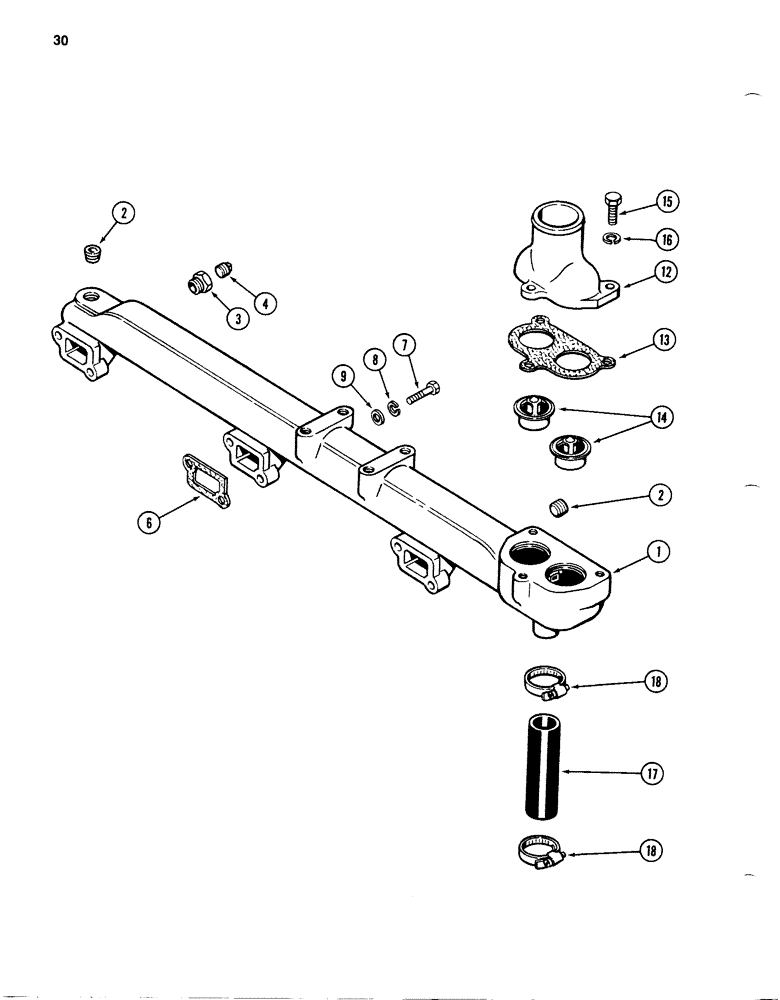

Запчасти Case 1280B (030) - WATER MANIFOLD AND THERMOSTAT, 504BDT DIESEL ENGINE (02) - ENGINE

NSS

NOT SOLD SEPARAT

MANIFOLD ASSEMBLY - water (Order Components) : 1, Includes: Ref. 1 - 4

1шт.

1

A152742

MANIFOLD

1шт.

2

221-844

PLUG,Hex Soc, 1/2"-14

- hex socket, 1/2 inch PT

2шт.

3

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING - reducer, 1/2 to 3/8 inch PT

1шт.

4

221-843

PLUG,Hex Soc, 3/8"-18

- hex socket, 3/8 inch PT

1шт.

6

A166147

GASKET

-, Serial Range: manifold-head

3шт.

7

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

6шт.

8

92-6

LOCK WASHER,3/8"

6шт.

9

195-25

WASHER,3/8"

- 3/8 x 13/16 x 1/16 inch (10 x 21 x 2 mm)

6шт.

12

A58638

HOUSING

- thermostat

1шт.

13

A166148

GASKET

-, Serial Range: housing-manifold

1шт.

14

A57641

THERMOSTAT

- 180 degrees F (82 degrees C)

2шт.

15

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

16

92-6

LOCK WASHER,3/8"

3шт.

17

A58737

HOSE,30.99mm ID x 134.62mm L, SAE 20R4

- water pump, 1-1/4 ID x 5-1/4 inch long (32 x 133 mm)

1шт.

18

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 13/16 to 1-3/4 inch (21 to 44 mm)

2шт.
