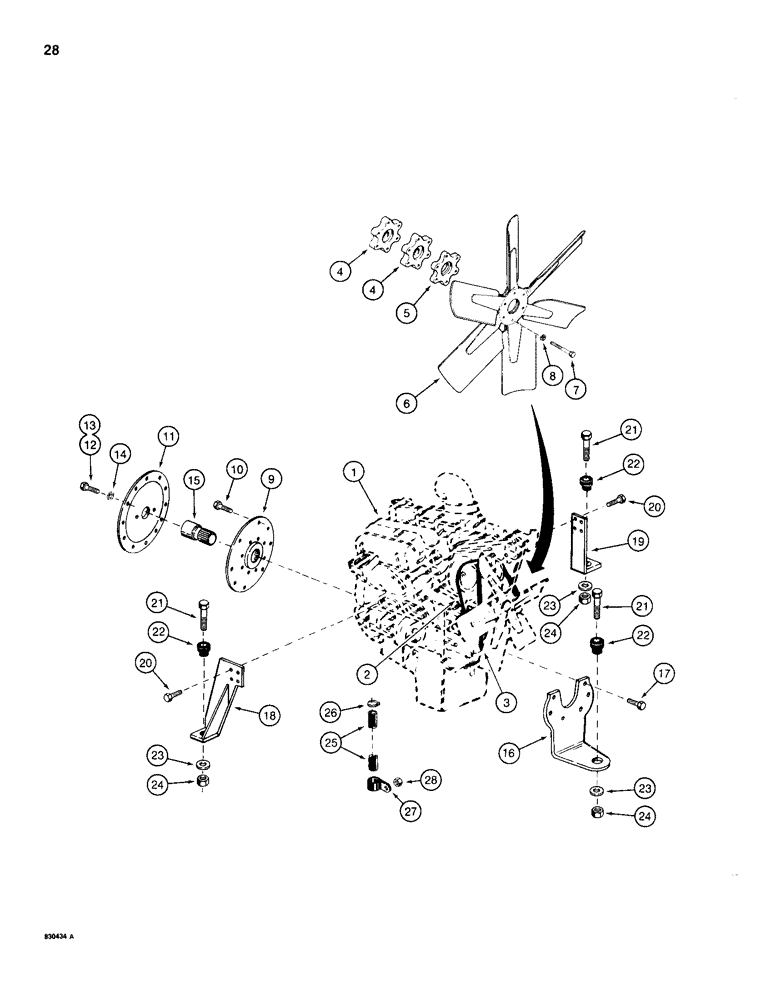

Запчасти Case 1280B (028) - DETROIT DIESEL ENGINE MOUNTING AND ADAPTING PARTS (02) - ENGINE

1

REF

INSTRUCTION

ENGINE - Detroit Diesel 6V53, for service see an authorized Detroit Diesel Allison Service Outlet

1шт.

L31230

ELEMENT

Oil filter, not shown

1шт.

S105493

ELEMENT

SPARE PART Fuel strainer, not shown

1шт.

S105610

ELEMENT

Fuel filter, not shown

1шт.

2

S211672

BELT

SPARE PART V-Belt, Alternator, Matched set of two belts

1шт.

3

S120265

SET OF BELTS,0.50" W x 38.25" L

V-Belt, Fan, Matched set

1шт.

4

S97540

FAN

SPACER, thick

2шт.

5

S119284

SPACER

Fan, thin

1шт.

6

S516042

FAN

PULLER - engine cooling

1шт.

7

113-138

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

6шт.

8

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

6шт.

9

S513495

PLATE

Drive

1шт.

10

121-204

BOLT,Lock Place, Hex, 3/8" - 16 x 5/8", Gr 8

Special

8шт.

11

S52615

MOUNTING PARTS

PLATE - hydraulic pump

1шт.

12

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

10шт.

13

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

14

192-21

LOCK WASHER,3/8"

12шт.

15

S229599

DRIVE SHAFT

COUPLING - pump

1шт.

16

S505886

BRACKET

Front engine mounting

1шт.

17

113-311

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

6шт.

18

S506064

BRACKET

RH rear, engine mounting

1шт.

19

S506065

BRACKET

LH rear, engine mounting

1шт.

20

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

21

13-1268

BOLT,Hex, 3/4" - 10 x 4-1/4", Gr 5

3шт.

22

A19066

MOUNTING PARTS

INSULATOR - rubber

3шт.

23

195-2270

WASHER,13/16" x 3" x .238", HDN

Flat, 3/4", special, lower

3шт.

24

131-450

NUT,3/4"-10

3шт.

25

REF

INSTRUCTION

HOSE - engine breather tube 1" (25.4 mm) ID x 30" (762 mm) long, cut from L118383, see below

1шт.

26

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

Hose to engine tube

1шт.

27

S86530

CLAMP

Hose

1шт.

28

131-52

NUT,3/8"-16, GC

1шт.

S118383

HOSE,1.00" ID x 192.00", SAE 100R3

1шт.
