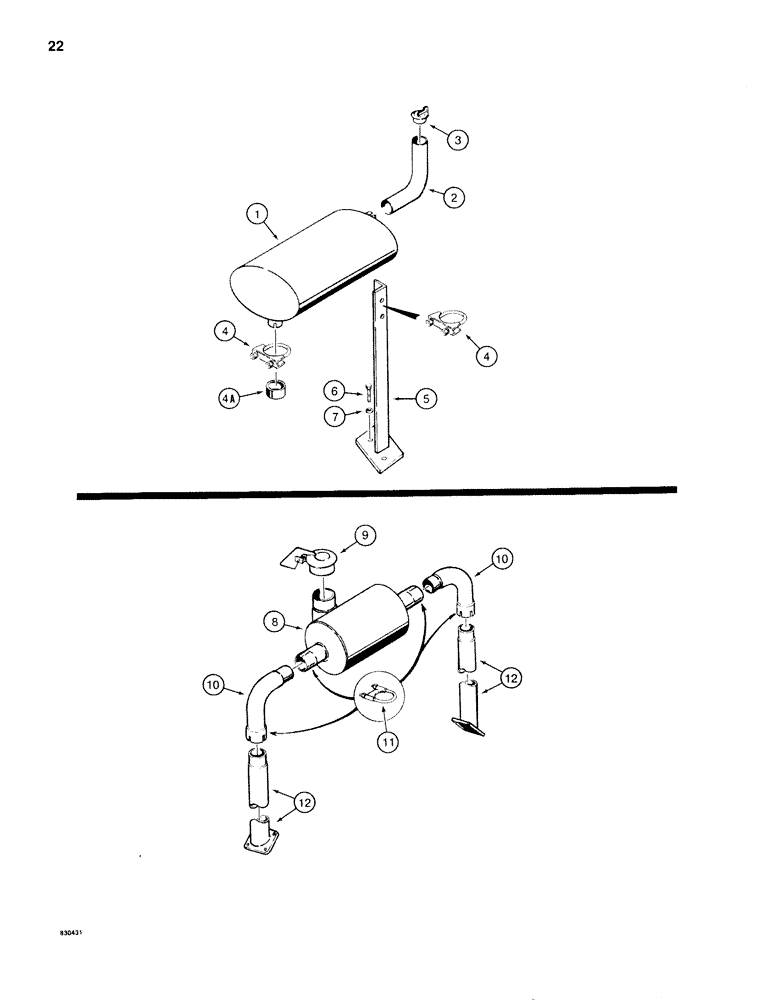

Запчасти Case 1280B (022) - MUFFLER AND EXHAUST SYSTEM (02) - ENGINE

1

S237009

MUFFLER

- engine exhaust, used with case engine

1шт.

2

S115068

ELBOW

EXTENSION PIPE - muffler exhaust, used with case engine

1шт.

3

S93398

CAP

- pipe, used with case engine

1шт.

4

A162896

CLAMP

- pipe, used with case engine

2шт.

4a

S115078

SPACER

TUBE - muffler to engine, used with case engine

1шт.

5

S237207

BRACKET

- muffler, used with case engine

1шт.

6

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Used with Case engine Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Used with Case engine 3/8"

2шт.

8

S513211

MUFFLER

- engine exhaust, used with detroit diesel

1шт.

9

S114158

CAP

- exhaust pipe, used with detroit diesel engine

1шт.

10

S236276

PIPE, EXHAUST SYSTEM

PIPE - exhaust, 90 degree, used with detroit diesel engine

2шт.

11

S65056

CLAMP

- pipe, used with detroit diesel engine

4шт.

12

S236361

PIPE ASSY.

PIPE - exhaust, straight, used with detroit diesel engine

2шт.
