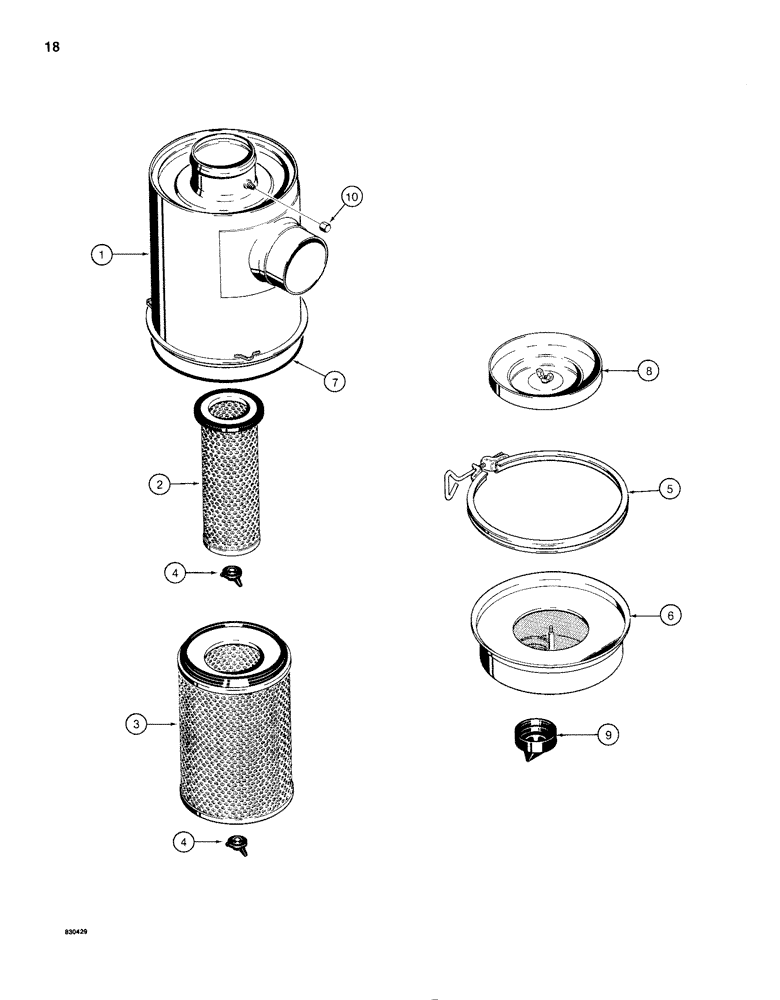

Запчасти Case 1280B (018) - AIR CLEANER COMPONENTS (02) - ENGINE

S617625

AIR CLEANER

ASSEMBLY - complete, Includes: Ref. 1 - 10

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - air cleaner, models with case engine

1шт.

2

N6660

AIR FILTER

ELEMENT - secondary, inner, models with case engine

1шт.

3

S231996

AIR FILTER

ELEMENT - primary, outer, models with case engine

1шт.

4

L35499

NUT

WING NUT - element to body, models with case engine

2шт.

5

L30936

CLAMP

- body to dust cup, models with case engine

1шт.

6

N8431

CUP

- dust, models with case engine

1шт.

7

N6661

O-RING,10.62" ID x 0.27" Width

- cup to body, models with case engine

1шт.

8

S221314

BAFFLE

- dust cup, models with case engine

1шт.

9

L30414

VALVE

DUST VALVE - rubber, models with case engine

1шт.

10

R21180

CAP

- restrictor fitting, used when restriction indicator is removed, models with case engine

1шт.

S617804

AIR CLEANER

ASSEMBLY - complete, models with detroit diesel engine, Includes: Ref. 1 - 10

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - air cleaner, models with detroit diesel engine

1шт.

2

L35496

FILTER, ELEMENT

ELEMENT - secondary, inner, models with detroit diesel engine

1шт.

3

L35495

ELEMENT

- primary, outer, models with detroit diesel engine

1шт.

4

L35499

NUT

WING NUT - element to body, models with detroit diesel engine

2шт.

5

L33136

CLAMP

- body to dust cup, models with detroit diesel engine

1шт.

6

N8432

CUP

- dust, models with detroit diesel engine

1шт.

7

N8433

O-RING,12.62" ID x 0.27" Width

- cup to body, models with detroit diesel engine

1шт.

8

L33137

COVER

BAFFLE - dust cup, models with detroit diesel engine

1шт.

9

L30414

VALVE

DUST VALVE - rubber, models with detroit diesel engine

1шт.

10

R21180

CAP

- restriction fitting, used when restriction indicator is removed, models with detroit diesel engine

1шт.
