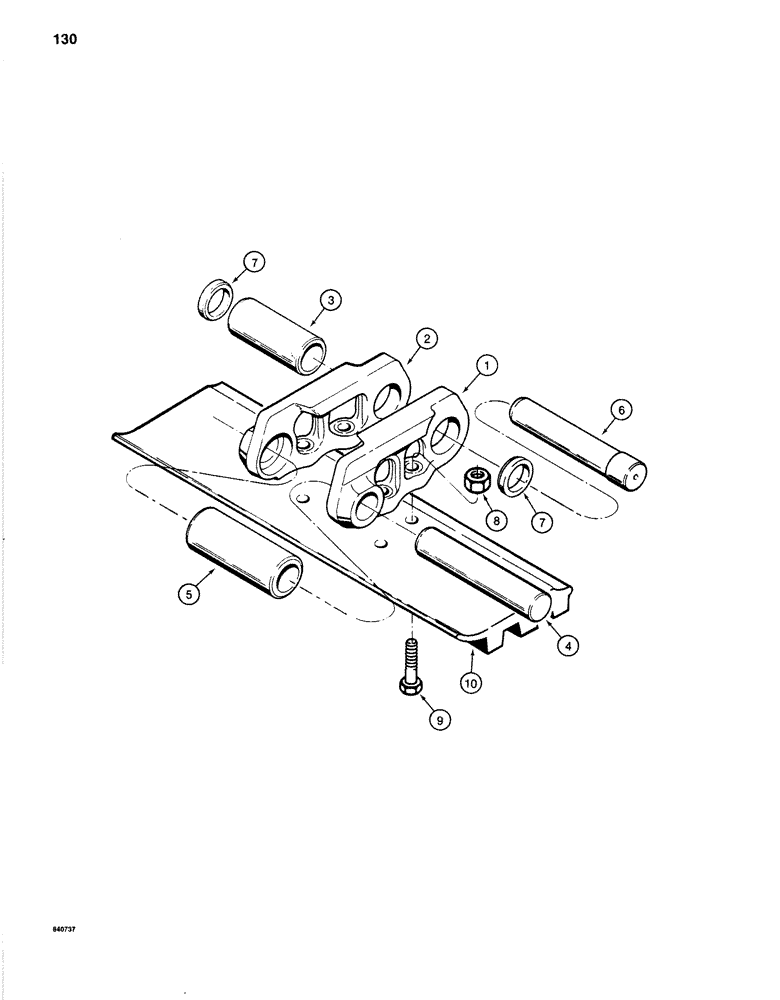

Запчасти Case 1280B (130) - TRACK SHOES, LINKS, AND PINS (11) - TRACKS/STEERING

S515722

TRACK ASSEMBLY - excavator, with 29.5" (750 mm) track shoes, machinery item, see Figure 002 for ordering, Includes: Ref. 1 - 11

2шт.

S516324

TRACK ASSEMBLY - excavator, with 35.4" (900 mm) track shoes, machinery item, see Figure 002 for ordering, Includes: Ref. 1 - 11

2шт.

Per T/S letter #344-86, p/n S242500 and p/n s231998 chain assemblies as part of p/n S515722 and p/n S516324 track assemblies. See T/S letter for breakdown.

1шт.

1

S108920

LINK

- track, right-hand

54шт.

2

S108921

LINK

- track, left-hand

54шт.

3

S108922

BUSHING

- master

1шт.

4

S108923

PIN

- Standard

53шт.

5

S108924

BUSHING

- standard

53шт.

6

S108926

PIN

- Master

1шт.

7

S108925

SPACER

- master bushing

2шт.

8

R25688

SQUARE NUT

- track shoe, special

216шт.

9

S89251

BOLT

- track shoe, special

216шт.

10

S108927

CHAIN (CE)

TRACK SHOE - triple grouser, 29.5" (750 mm)

54шт.

11

N9783

TRACK SHOE

- triple grouser, 35.4" (900 mm)

54шт.
