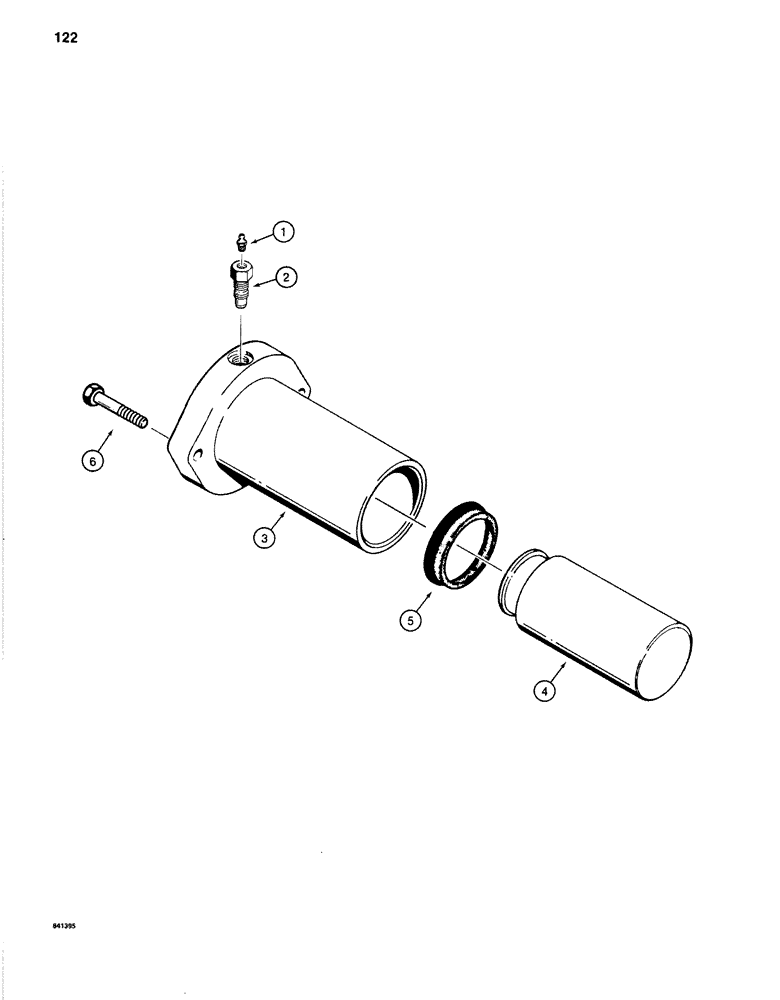

Запчасти Case 1280B (122) - TRACK ADJUSTMENT CYLINDER (11) - TRACKS/STEERING

S515251

CYLINDER

ASSEMBLY - track adjustment, Includes: Ref. 1 - 5

2шт.

1

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

2

D35287

CHECK VALVE,5/8" - 18

CHECK ASSEMBLY - track adjuster

1шт.

3

S515252

CYLINDER,230 mm L

TUBE - cylinder, track adjuster

1шт.

4

S239959

PISTON

- track adjuster cylinder

1шт.

5

S78837

SEAL

ASSEMBLY - piston

1шт.

6

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

- hex head, 12 mm - 1.75 x 45 mm (8.8), Adjustment cylinder to idler yoke

4шт.
