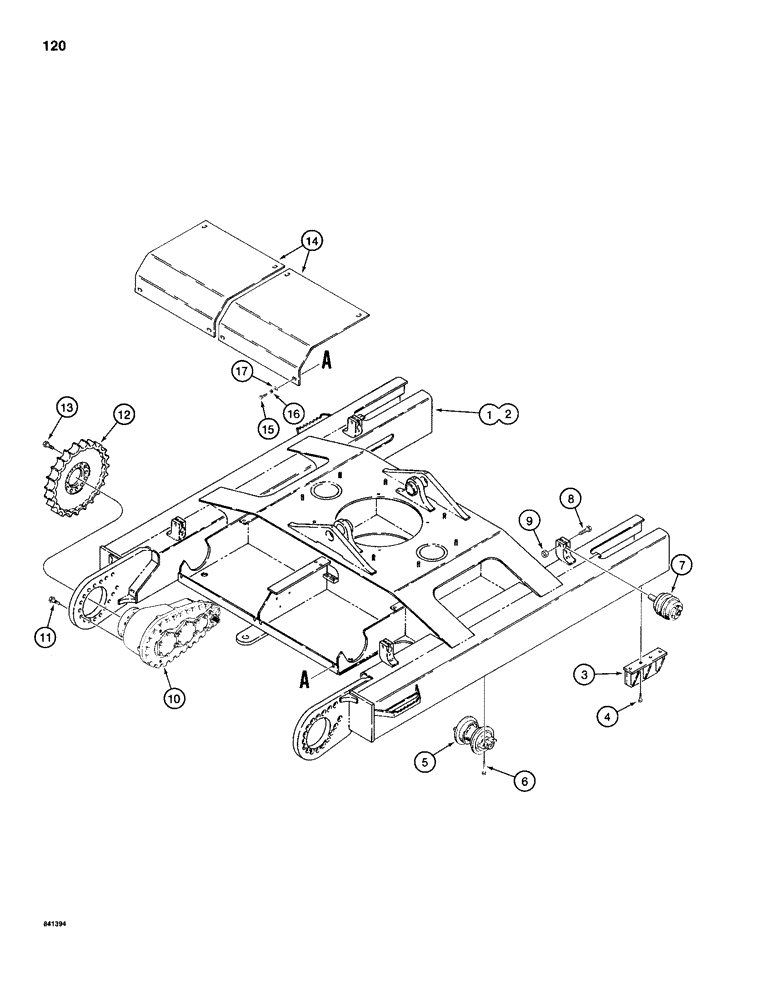

Запчасти Case 1280B (120) - TRACK FRAMES AND UNDERCARRIAGE (11) - TRACKS/STEERING

1

S956601

FRAME

TRACK FRAME AND UNDERCARRIAGE - excavator, models with leveler and wide track

1шт.

1

S956889

LEVEL

TRACK FRAME AND UNDERCARRIAGE - excavator, models with leveler and narrow track

1шт.

2

S956623

FRAME

TRACK FRAME AND UNDERCARRIAGE - excavator, models without leveler and with wide track, not shown

1шт.

2

S956888

FRAME

TRACK FRAME AND UNDERCARRIAGE - excavator, models without leveler and with narrow track, not shown

1шт.

3

S515723

GUIDE

- track chain

4шт.

4

813-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 8.8, Full Thd

16шт.

5

S515417

ROLLER

TRACK ROLLER - lower, parts list Figure 128

20шт.

6

826-16100

BOLT,Hex, M16 x 2 x 100mm, Cl 10.9

- hex, 16 mm - 2.0 x 100 mm, 10.9, if used

80шт.

6

813-16100

BOLT,Hex, M16 x 2 x 100mm, Cl 8.8

- hex head, 16 mm - 2 x 100 mm (8.8), if used

80шт.

6a

192-165

LOCK WASHER,5/8"

WASHER, LOCK, , Must be used with 813-16100 track roller bolt only, not shown 5/8"

80шт.

7

S239440

ROLLER

CARRIER ROLLER - upper, parts list Figure 126

4шт.

8

814-20090

BOLT,Hex, M20 x 2.5 x 90mm, Cl 8.8

- hex head, 20 mm - 2.5 x 90 mm (8.8)

4шт.

9

825-1120

NUT,M20, Cl 8

- hex, 20 mm - 2.5

4шт.

10

S618099

TRANSMISSION

ASSEMBLY - final drive, parts list Figure 132

2шт.

11

826-20065

BOLT,Hex, M20 x 2.5 x 65mm, Cl 10.9

- hex head, 20 mm - 2.5 x 65 mm (10.9)

34шт.

12

S956481

SPROCKET ASSY.

SPROCKET - track drive

2шт.

13

826-20050

BOLT,Hex, M20 x 2.5 x 50mm, Cl 10.9, Full Thd

- hex head, 20 mm - 2.5 x 50 mm (10.9)

24шт.

14

S515759

COVER

- transmission drive motors, used on models with wide track

2шт.

14

S516852

COVER

- transmission drive motors, used on models with narrow track

2шт.

15

814-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

- hex head, 12 mm - 1.75 x 30 mm (8.8)

8шт.

16

892-1112

LOCK WASHER,M12

WASHER - lock, 12 mm

8шт.

17

895-15012

WASHER,M12 x 28 x 2.5

- flat, 12 mm

8шт.
