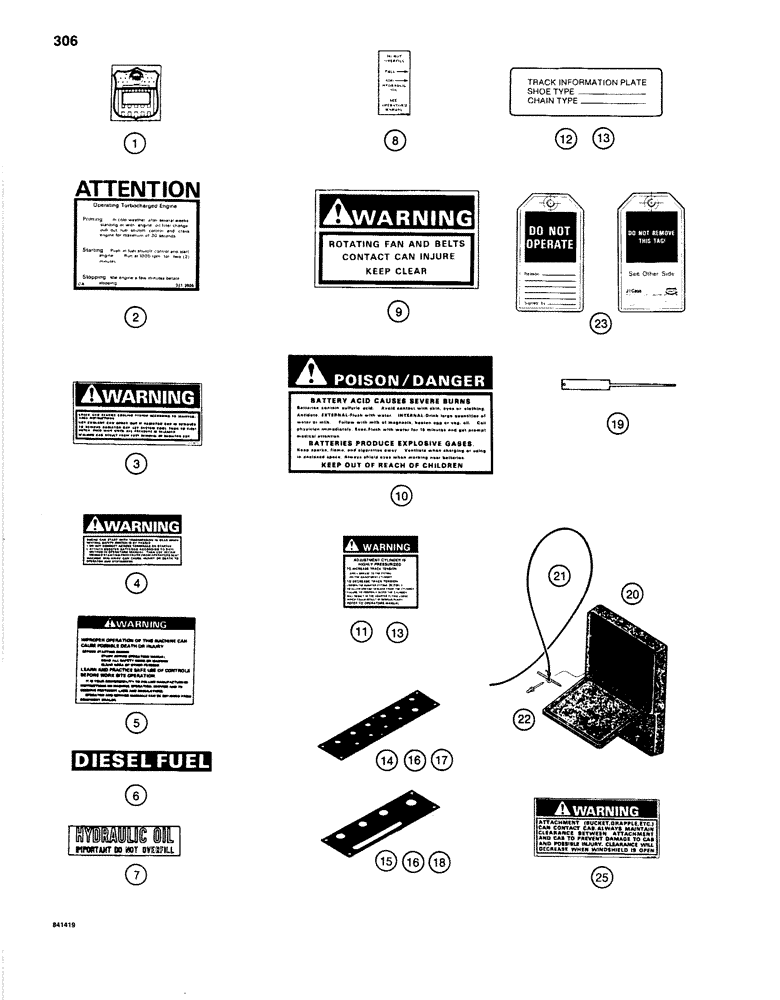

Запчасти Case 1280B (306) - DECALS (09) - CHASSIS/ATTACHMENTS

1

S242429

DECAL

- PCSA

1шт.

Part of English DecalKit, P/N S618223

1шт.

2

321-2605

DECAL

- turbocharger operating precautions

1шт.

Part of English and French Decal Kit's, P/n's S618223 and S618225

1шт.

3

321-6672

DECAL

- Warning, cooling system service

1шт.

4

321-6718

DECAL

- Warning, starter service (replaces 321-3709)

1шт.

Part of English and French Decal Kit's, P/n's S618223 and S618225

1шт.

5

S231311

DECAL

- Warning, safe operation

1шт.

Part of English and French Decal Kit's, P/n's S618223 and S618225

1шт.

6

321-2601

DECAL

- diesel fuel

1шт.

Part of English and French Decal Kit's, P/n's S618223 and S618225

1шт.

7

S80209

DECAL

- hydraulic oil fill

1шт.

Part of English and French Decal Kit's, P/n's S618223 and S618225

1шт.

8

S233480

DECAL

- hydraulic oil level

1шт.

Part of English and French Decal Kit's, P/n's S618223 and S618225

1шт.

9

321-3596

DECAL

- Warning, engine fan

3шт.

Part of English and French Decal Kit's, P/n's S618223 and S618225

1шт.

10

321-6714

DECAL

- Warning, battery (replaces 321-2996)

1шт.

Part of English and French Decal Kit's, P/n's S618223 and S618225

1шт.

11

321-6272

DECAL

- Warning, track adjustment cylinder

2шт.

12

S241890

DECAL

- identification, track type

1шт.

13

S23395

SCREW

- drive, No. 7 - 32 NC x 5/16", not shown

10шт.

14

321-6098

PANEL

DECAL - instrument panel, left hand console

1шт.

15

321-6097

PANEL

DECAL - instrument panel, right hand console

1шт.

16

179-156

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

MACHINE SCREW - No. 10 - 24 NC x 3/4", black, not shown

10шт.

17

S117167

CLIP

NUT - U-type, No. 10 - 24 NC, not shown

6шт.

18

86632551

NUT,#10-24, GB

NUT, LOCK, , Not shown #10-24, GB

4шт.

19

S99804

TAG - hose identification, left track forward

1шт.

19

S99805

TAG - hose identification, left track reverse

1шт.

19

S99806

TAG - hose identification, right track forward

1шт.

19

S99807

TAG - hose identification, right track reverse

1шт.

19

S99808

TAG - hose identification, crowd in

1шт.

19

S99809

TAG - hose identification, crowd out

1шт.

19

S99810

TAG - hose identification, tool in

1шт.

19

S99811

TAG - hose identification, tool out

1шт.

19

S99812

TAG - hose identification, hoist down

1шт.

19

S99813

TAG - hose identification, hoist up

1шт.

19

S99814

TAG - hose identification, swing right

1шт.

19

S99815

TAG - hose identification, swing left

1шт.

19

S108802

TAG - hose identification, leveler left

1шт.

19

S108803

TAG - hose identification, leveler right

1шт.

20

S511692

BOX

- operators manual

1шт.

21

A141917

ROPE

CORD -, Serial Range: manual-box

1шт.

22

151-532

RIVET,Pop, 3/16" x .700"

POP RIVET - manual box to cab

2шт.

23

321-4614

TAG

- do not operate

1шт.

24

321-3972

DECAL

- engine date, Case engine only, not shown, see Figure 40

1шт.

25

321-6694

DECAL

- Warning, attachment to cab clearance

1шт.

S618223

KIT

- decal, English, includes Refs. 1, 2, 4, 5, 6, 7, 8, 9, 10 and reference numbers 1 - 3 and 5 - 7 on Figure 304, and reference number 1 on Figure 308

1шт.
