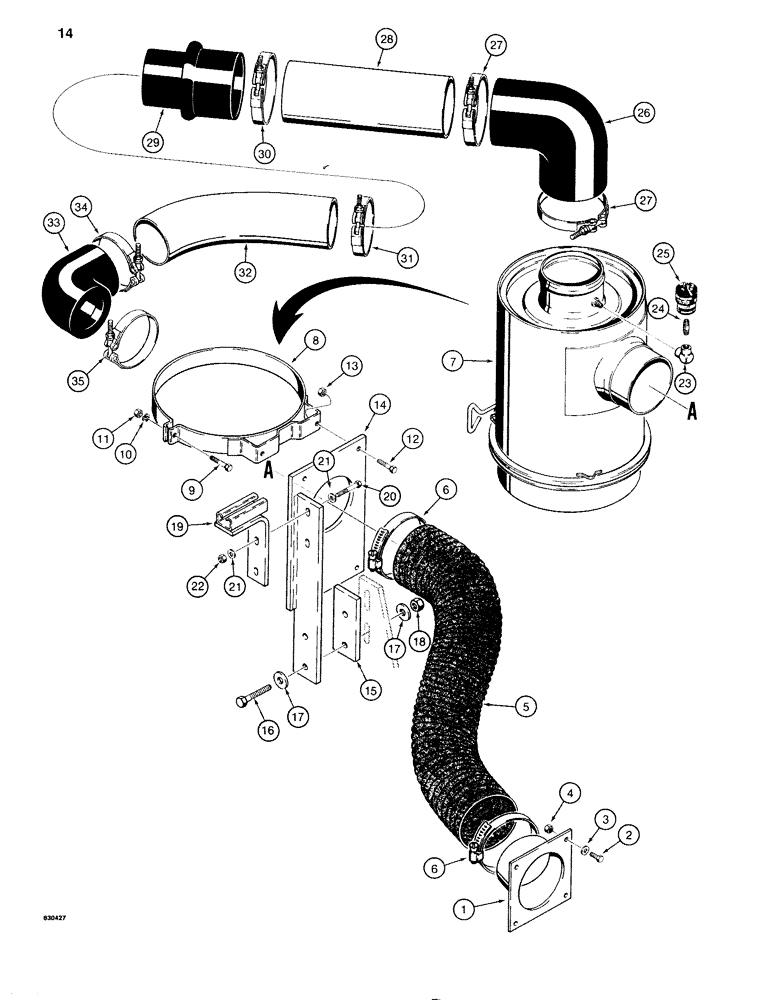

Запчасти Case 1280B (014) - AIR CLEANER AND AIR INTAKE PARTS, FOR CASE ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
S241569
FLANGE
Air inlet
1шт.
2
113-3
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
4шт.
3
195-518
WASHER,1/4", SAE
4шт.
4
86625061
NUT,1/4"-20, GB
4шт.
5
REF
INSTRUCTION
HOSE - air cleaner inlet, 36" (914 mm) long, cut from S118593, see below
1шт.
6
214-272
HOSE CLAMP,#84, 4.88" - 5.75", Type F Worm
Inlet hose
2шт.
7
S617625
AIR CLEANER
Parts list Figure 18
1шт.
8
A56089
SUPPORT
BAND - air cleaner, replace hardware with refs. 9-11 below
2шт.
9
113-120
BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5
2шт.
10
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
2шт.
11
9635082
NUT,5/16" - 18, Gr 5
2шт.
12
113-208
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
4шт.
13
131-52
NUT,3/8"-16, GC
4шт.
14
S241410
BRACKET
Air cleaner mounting
1шт.
15
S119180
SPACER
Mounting bracket, lower
1шт.
16
80087972
BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5
2шт.
17
S95569
WASHER
Flat, 1/2", hardened
4шт.
18
131-70
NUT,1/2"-13, GB
2шт.
19
S241397
BRACKET
90 degree, upper, tube clamp support
1шт.
20
113-233
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5
2шт.
21
195-104
WASHER,3/8"
4шт.
22
131-52
NUT,3/8"-16, GC
2шт.
23
217-1050
90 ELBOW,1/8" - 27 NPTF Female
90°, Indicator line
1шт.
24
221-106
PIPE,Nipple, 1/8" NPT x 1 1/2"
1/8" NPT x 1-1/4", restriction indicator line
1шт.
25
A59569
INDICATOR
RESTRICTION - air cleaner
1шт.
26
S115133
ELBOW
90 degree, rubber, air cleaner outlet
1шт.
27
214-363
CLAMP,#140, 5.25"-5.56", T-Bolt
Elbow
2шт.
28
S119179
TUBE,5" OD x 13" L
Air cleaner
1шт.
29
S106022
REDUCER
Rubber
1шт.
30
214-363
CLAMP,#140, 5.25"-5.56", T-Bolt
Reducer, large end
1шт.
31
214-361
CLAMP,#108, 4.25"-4.56", T-Bolt
Reducer, small end
1шт.
32
S119178
TUBE,4" OD x 8" L
Bent
1шт.
33
S112515
ELBOW
90 degree, rubber, at turbocharger
1шт.
34
214-361
CLAMP,#108, 4.25"-4.56", T-Bolt
At pipe
1шт.
35
214-379
CLAMP,#84, 3.50"-3.81", T-Bolt
SPARE PART At turbocharger
1шт.
S118593
HOSE,5.00" ID x 60.00"
Bulk roll
1шт.
