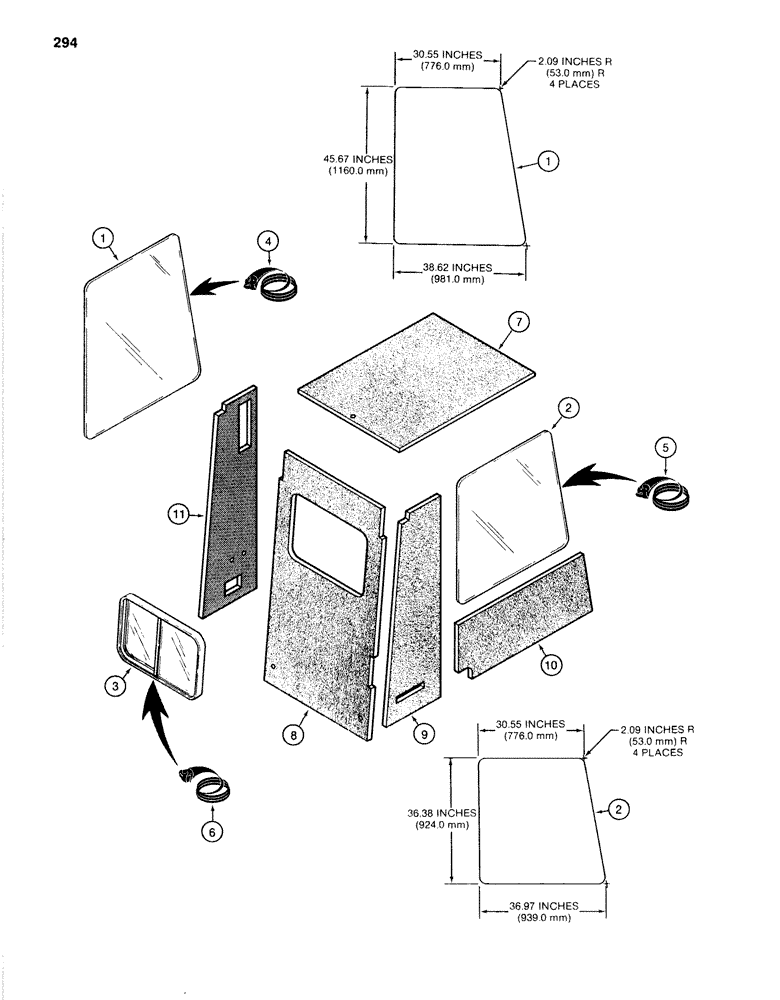

Запчасти Case 1280B (294) - CAB, WINDOWS, SEALS, AND INSULATION (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

LEXAN - window, in door, included in S 956671 door assembly

1шт.

2

REF

INSTRUCTION

LEXAN - window, RH

1шт.

3

S516738

WINDOW

ASSEMBLY - sliding, rear

1шт.

4

REF

INSTRUCTION

SEAL - Lexan, used with cab door window, 157.6" (4003 mm) long, cut from S118468, see below

1шт.

5

REF

INSTRUCTION

SEAL - Lexan, used with RH cab window, 137.2" (3485 mm) long, cut from S118468, see below

1шт.

6

REF

INSTRUCTION

SEAL - Lexan, used with rear sliding window, 84.7" (2151 mm) long, cut from N 6492, see below

1шт.

7

S241506

INSULATOR

Cab, Top

1шт.

8

S516036

INSULATOR

Cab, Rear

1шт.

9

S241504

INSULATOR

Cab, RH, Rear

1шт.

10

S241505

INSULATOR

Cab, RH, Front

1шт.

11

S241530

INSULATOR

Cab, LH

1шт.

S118468

SEAL

Window glass, bulk, 50 ft (15.24 m) long

1шт.

N6492

GASKET

Window glass, bulk, 50 ft (15.24 m) long

1шт.
