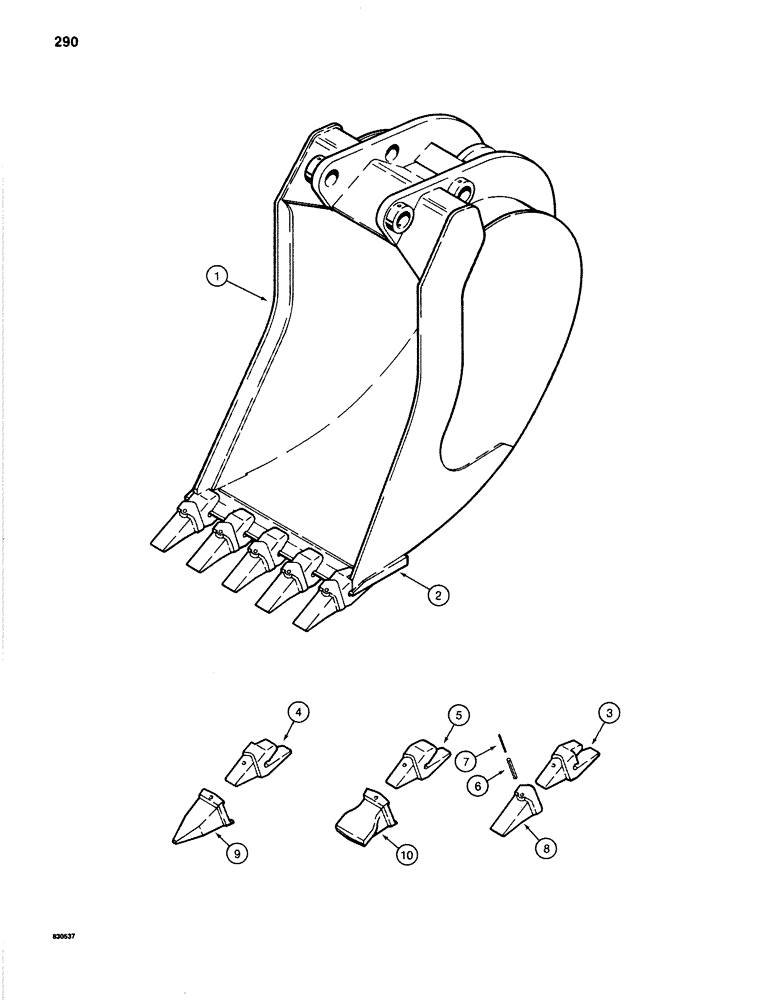

Запчасти Case 1280B (290) - BACKHOE BUCKETS, HIGH CAPACITY (09) - CHASSIS/ATTACHMENTS

1

S956682

BUCKET ASSEMBLY - 36" (914 mm), machinery item, see Figure 002 for ordering, Includes: Ref. 2 - 8

1шт.

2

S239201

EDGE

CUTTING - 36" (914 mm) bucket

1шт.

3

S615006

SHANK, BUCKET TOOTH

RH

1шт.

4

S615007

SHANK, BUCKET TOOTH

LH

1шт.

5

S615005

SHANK, BUCKET TOOTH

Center

3шт.

S239749

ROLL PIN

ASSEMBLY - tooth point, Includes: Ref. 6 and 7

1шт.

6

138-214

LOCK PIN,1/2" x 4", Slotted

ROLL PIN - 7/16" x 4"

1шт.

7

REF

INSTRUCTION

PLUG - rubber, 4" long, cut from S119223, see below

1шт.

8

S615004

POINT

Tooth, standard

1шт.

9

S615023

POINT

Tooth, rock, optional

1шт.

10

S615022

POINT

Tooth, spade, optional

1шт.

S119223

RUBBER

PLUG - 48" (1219 mm) long strip

1шт.
