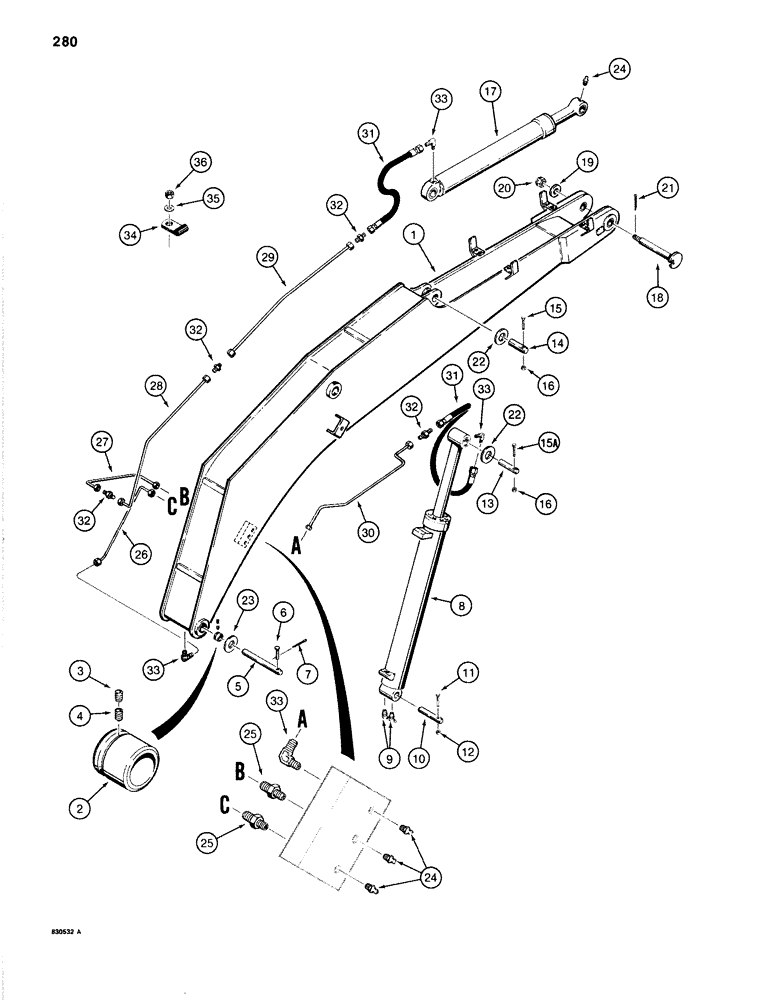

Запчасти Case 1280B (280) - BOOM AND RELATED PARTS (09) - CHASSIS/ATTACHMENTS

1

S956552

BOOM

ASSEMBLY - excavator, Includes: Ref. 2 - 4

1шт.

2

S240944

BUSHING

- boom mounting, at turntable

2шт.

3

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

- 3/8" - 16 NC x 3/8", cup point, top

2шт.

4

178-53

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

- 3/8" - 16 NC x 3/8", cone point, bottom

2шт.

5

S242328

PIN

-, Serial Range: boom-turntable

1шт.

6

S87319

PIN

- retainer, S242328 pin

1шт.

7

132-73

COTTER PIN,5/32" x 1 1/2"

PIN, Split (Cotter), 5/32" x 1 1/2"

1шт.

8

S956746

CYLINDER

- hydraulic, boom, parts list Figure 234

1шт.

9

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

GREASE FITTING - 45 degree, 1/8" NPT

2шт.

10

S237429

PIN

- boom, Serial Range: cylinder-turntable

1шт.

11

26-884

BOLT,Hex, 1/2" - 13 x 5-1/4", Gr 8

- hex head, 1/2" - 13 NC x 5-1/4", grade 8

1шт.

12

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

1шт.

13

S240343

PIN

- boom, Serial Range: cylinder-boom

1шт.

14

S240362

PIN

- arm, Serial Range: cylinder-boom

1шт.

15

826-12150

BOLT,Hex, M12 x 1.75 x 150mm, Cl 10.9

BOLT - hex head, 12 mm - 1.75 x 150 mm (8.8)

1шт.

15a

826-12130

BOLT,Hex, M12 x 1.75 x 130mm, Cl 10.9

- hex head, 12 mm - 1.75 x 130 mm (8.8)

1шт.

16

S118774

NUT

- hex, self-locking, 12 mm - 1.75

2шт.

17

S956722

CYLINDER

- hydraulic, arm, parts list Figure 236

1шт.

18

S240387

PIN

-, Serial Range: boom-arm

1шт.

19

S110511

WASHER

- flat, special

1шт.

20

25-3032

SLOTTED NUT,2"-4.5, G5, Hvy

NUT - hex, slotted, 2" - 4-1/2" NC

1шт.

21

132-208

COTTER PIN,3/8" x 4"

Pin, Split (Cotter), 3/8" x 4"

1шт.

22

S119238

SHIM,3mm Thk

Used with Reference numbers 13 and 14 3mm Thk

1шт.

23

S111776

WASHER

SHIM - 1/8" thick, used with reference number 5 only

1шт.

24

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT, boom lubrication line

4шт.

25

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - straight, male, boom lubrication line

2шт.

26

S241465

TUBE,0.25" OD

- lubrication, boom at turntable, line

1шт.

27

S241464

TUBE,0.25" OD x 26.69, 12.60" L

- lubrication, arm cylinder at closed end, rear section, boom line

1шт.

28

S241463

TUBE ASSY.,0.25" OD

TUBE - lubrication, arm cylinder at closed end, center section, boom line

1шт.

29

S241462

TUBE,0.25" OD x 53.54, 8.66" L

- lubrication, arm cylinder at closed end, front section, boom line

1шт.

30

S241466

TUBE,0.25" OD

- lubrication, boom cylinder at rod end, line

1шт.

31

S77467

HOSE

- lubrication, closed end of arm cylinder and rod end of boom cylinder, line

2шт.

32

218-732

UNION,7/16"-20, 37 Degree x 7/16"-20, 37 Degree

CONNECTOR - straight, male, boom lubrication line

4шт.

33

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degree, male, boom lubrication line

4шт.

34

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- lubrication tube, boom line

7шт.

35

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

Boom lubrication line M10 x 20 x 2

7шт.

36

S118773

LOCK NUT

NUT - hex, self-locking, 10 mm - 1.5, boom lubrication line

7шт.
