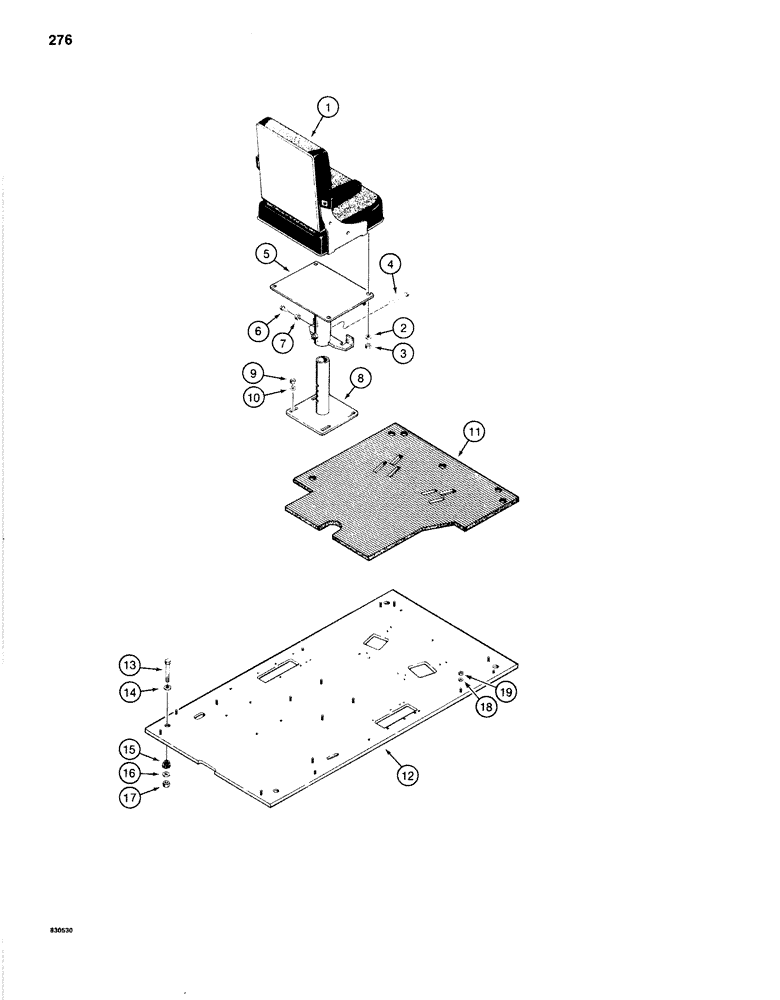

Запчасти Case 1280B (276) - SEAT, SEAT MOUNTING AND FLOOR PLATE (09) - CHASSIS/ATTACHMENTS

1

S617794

SEAT ASSY.

SEAT ASSEMBLY - operators, parts list Figure 278

1шт.

2

195-104

WASHER,3/8"

- flat, , plated 3/8"

4шт.

3

131-205

LOCK NUT,5/16"-18

NUT - hex, self-locking, 5/16" - 18 NC, plated

4шт.

4

113-447

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

Seat height adjustment Hex, 1/2"-13 x 3 1/2", G5

1шт.

5

S616417

BRACKET

- seat mounting

1шт.

6

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

7

87016560

JAM NUT,Jam, 3/8"-16, G5

1шт.

8

S515219

BRACKET

BASE - seat support

1шт.

9

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC, plated

4шт.

10

S95569

WASHER

- flat, 1/2", hardened

4шт.

11

S617801

FLOOR MAT

FLOORMAT - operator compartment

1шт.

12

S956150

PLATE

- floor, operator compartment

1шт.

13

13-1268

BOLT,Hex, 3/4" - 10 x 4-1/4", Gr 5

- hex head, 3/4" - 10 NC x 4-1/4"

4шт.

14

195-2269

WASHER,25/32" x 3 1/2" x .238"

- flat, 3/4" ID x 3-1/2 OD, upper

4шт.

15

S112578

MOUNTING PARTS

MOUNT - rubber, floor plate

4шт.

16

195-2270

WASHER,13/16" x 3" x .238", HDN

- flat, 3/4" ID x 3" OD, lower

4шт.

17

131-450

NUT,3/4"-10

NUT - hex, self-locking, 3/4" - 10 NC

4шт.

18

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 1/2", hardened, cab to floor plate

10шт.

19

131-208

SPECIAL NUT,1/2"-13

NUT - hex, self-locking, 1/2" - 13 NC, cab to floor plate

10шт.
